Beam Deflection Engineering

Instantaneous beam analysis that fits in your pocket

Instantaneous beam analysis that fits in your pocket

Beam Deflection Engineering

by Blue Ketchep
Beam Deflection Engineering
Beam Deflection Engineering
$1.99 in the App Store

What is it about?

Instantaneous beam analysis that fits in your pocket!

App Details

Version
5.0.0
Rating
(24)
Size
69Mb
Genre
Productivity Education
Last updated
April 4, 2018
Release date
July 16, 2013
More info

App Screenshots

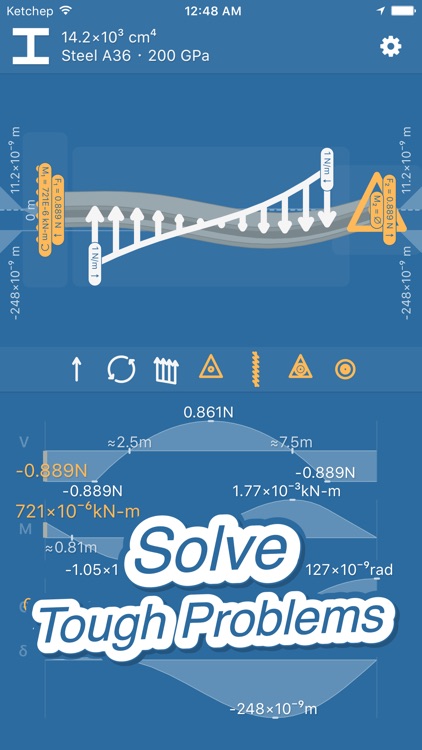

Beam Deflection Engineering screenshot-0

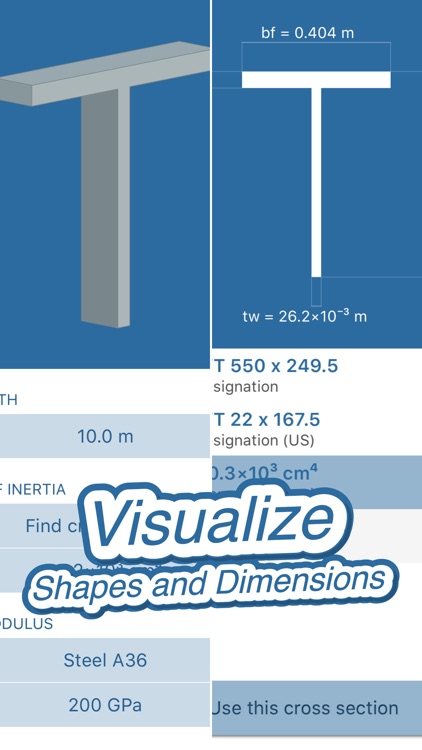

Beam Deflection Engineering screenshot-1

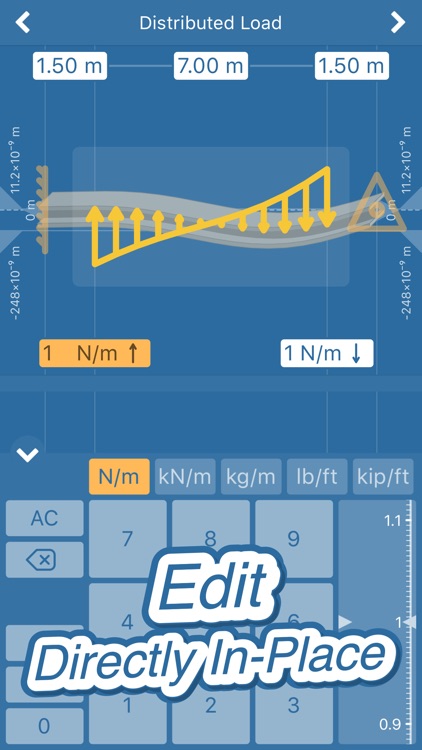

Beam Deflection Engineering screenshot-2

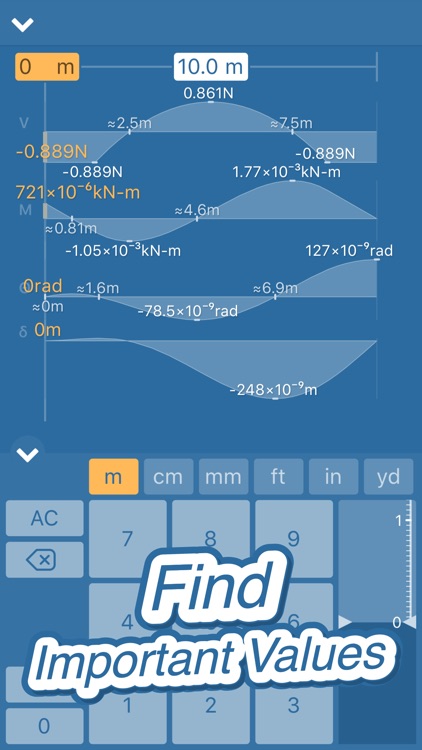

Beam Deflection Engineering screenshot-3

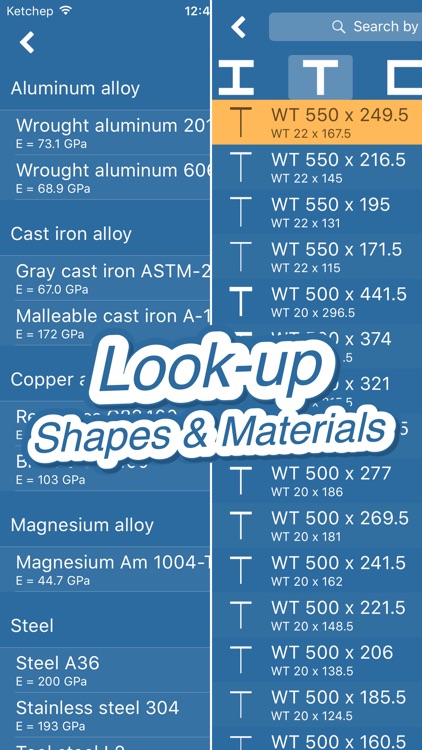

Beam Deflection Engineering screenshot-4

App Store Description

Instantaneous beam analysis that fits in your pocket!
Easily calculate beam deflection and engineering graphs for structural analysis. Quickly double-check your results and develop your intuition of beam deflection theory. This app is an invaluable learning tool for mechanical, civil, structural, and architecture engineering.

AMAZING AND INTUITIVE TOUCH-BASED INTERACTION

• Interactive graphics - Use touch to position loads and supports along the beam. Our algorithm will automatically handle individual sections and superposition of loads.
• Real-time computation - When you edit loads and supports, you can immediately see the effect on shear, moment, slope, and deflection diagrams. Visualize how the beam bends in real time as you interact with the app!

UNLIMITED LOADS AND SUPPORTS

• At least as many as your device can handle!
• Concentrated point loads, distributed loads, and moment loads
• Simple and fixed supports
• Floating and fixed hinges

BUILT-IN PROPERTY DATA LIBRARIES

Beam deflection depends on the beam's material (elastic modulus) and its cross-section geometry (moment of inertia). The app includes common values, but you can also specify these values directly.

• Find most American and European standard shapes.
• Select from common engineering materials.

SMART AND USEFUL DESIGN

• Common measurement units (metric and standard)
• Smart diagrams automatically detect local maxima and minima and zero-crossings

CONTACT

Having issues with the latest version? Do you have any feature requests? Let us know! There are many ways to reach us:

email: [email protected]
https://www.blueketchep.com
http://facebook.com/BlueKetchep
http://twitter.com/BlueKetchep

Or simply leave a comment here!
