What is it about?

Electric Toolkit is an easy to use collection of electrical wiring diagrams, pinouts, and electrical calculators for home wiring projects. The Electric Toolkit includes:

Electric Toolkit

App Details

Version
1.2.3
Rating
(24)
Size
35Mb
Genre
Utilities Productivity
Last updated
November 11, 2014
Release date
April 11, 2012
More info

App Screenshots

Electric Toolkit screenshot-0
Electric Toolkit screenshot-1
Electric Toolkit screenshot-2
Electric Toolkit screenshot-3
Electric Toolkit screenshot-4

App Store Description

Electric Toolkit is an easy to use collection of electrical wiring diagrams, pinouts, and electrical calculators for home wiring projects. The Electric Toolkit includes:

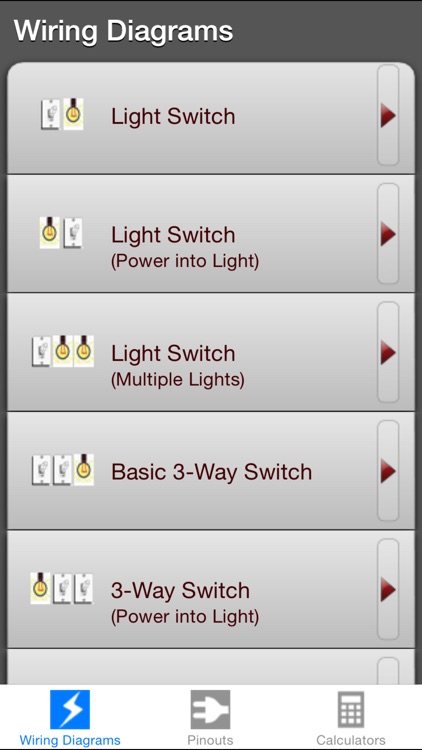

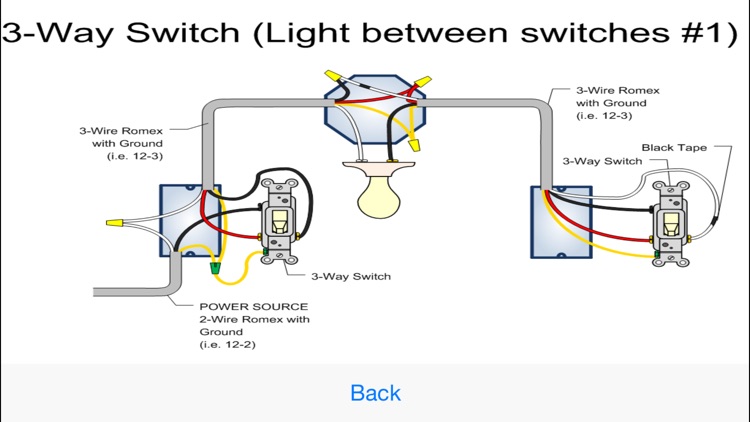

*Seven different 3-way switch wiring diagrams
*Basic light switch wiring diagrams
*4-way switching wiring diagram
*Multiple GFCI wiring diagram
*Wall outlet wiring diagram
*Service Entrance Ground Size Requirements table
(based on NEC 2008, Table 250-66)
*Grounding conductor size calculator
(NEC 2008 and NEC 2011, Table 250-122)

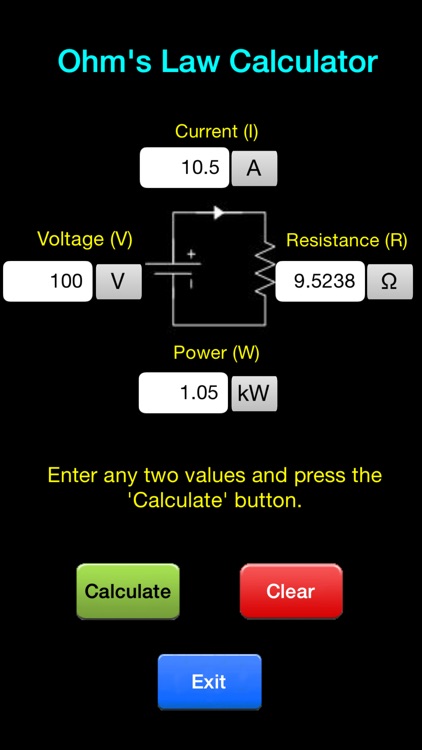

*Ohms Law calculator
*Sizing a Circuit Breaker calculator
(NEC 2008 and NEC 2011, 240-6(a))

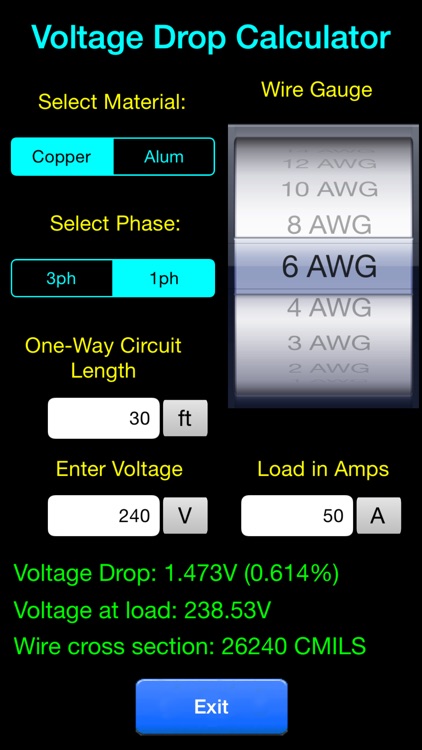

*Voltage drop calculator

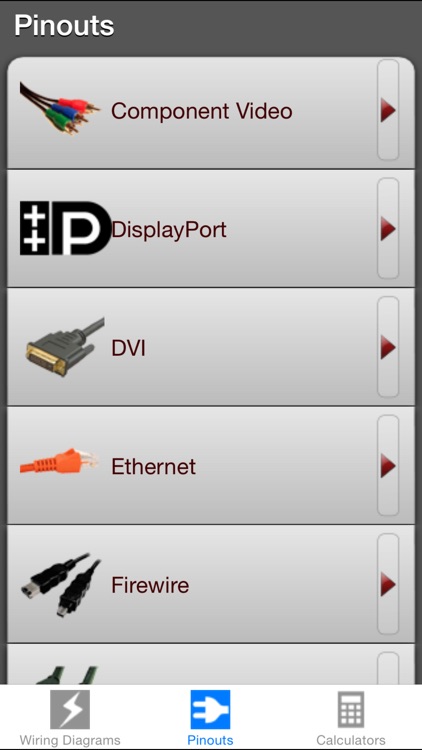

*Audio/Video Cable pinouts ( Component, DisplayPort, DVI, Ethernet, Firewire, HDMI/Mini HDMI/Micro HDMI, LPT, PS/2, RCA, Serial port, S-video, USB 3.0/Mini USB/Micro USB, and VGA).

If you have any suggestions, find bugs, or have any requests, feel free to email them to: [email protected]
