What is it about?

More than 30 calculation tools Electricians and other Electrical Professionals can use every day to efficiently design and document code-compliant installations.

Electrical Wiring Pro Plus

App Details

Version
9.2
Rating
NA
Size
24Mb
Genre
Productivity Reference
Last updated
December 18, 2015
Release date
September 25, 2015
More info

App Screenshots

Electrical Wiring Pro Plus screenshot-0
Electrical Wiring Pro Plus screenshot-1
Electrical Wiring Pro Plus screenshot-2
Electrical Wiring Pro Plus screenshot-3
Electrical Wiring Pro Plus screenshot-4

App Store Description

More than 30 calculation tools Electricians and other Electrical Professionals can use every day to efficiently design and document code-compliant installations.

Supports 2008, 2011 and 2014 NECs.

Electrical Wiring Pro Plus is written 100% in Apple's Swift language for IOS 9 and beyond, which extend its capabilities beyond earlier apps such as Electrical Wiring Lite and Pro. For example, detailed Residential Load Calculations can be made quickly and easily (and emailed for documentation). In addition, the app runs on iPhones in standard mode, or on iPads in "Master/Detail" mode allowing the user to quickly navigate the app. Other enhancements include Ampacity ambient temperatures optionally based on ASHRAE design temperatures for approximately 700 locations through the USA.

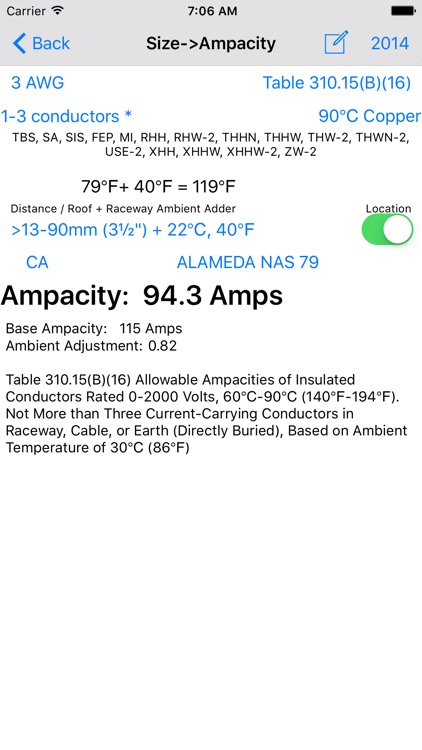

AMPACITY AND WIRE SIZING per Article 310
+ Size -> Ampacity
+ Ampacity - Size
+ Grounds - GEC and EGC Sizing
+ Dwelling Service and Feeder Sizing (From table or "83%" rule)
- Adjustments for Ambient, # conductors and height above roof

BOX FILL / WIRE BENDING SPACE
+ Wire, Device and Hardware Box Sizing
+ Cable option vs wires, e.g. for Romex
+ *NEW* Wire Bending Space for Cabinets, Gutters, Motor Controllers etc *NEW*
+ Standard Box Wire and Ring Information

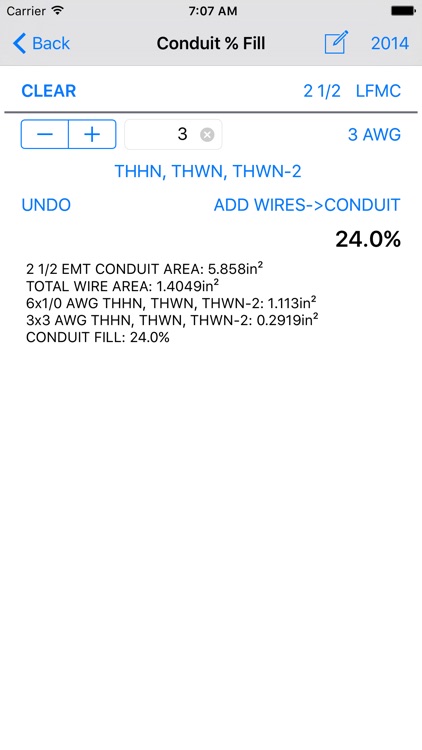

CONDUIT FILL per Chapter 9
+ Conduit Size Needed
+ How Full Conduit is given a set of wires
+ Max # of Wires Per Conduit
+ Conduit Info
+ Wire Info

BASIC CONDUIT BENDING
+ Offset (simple or compound)

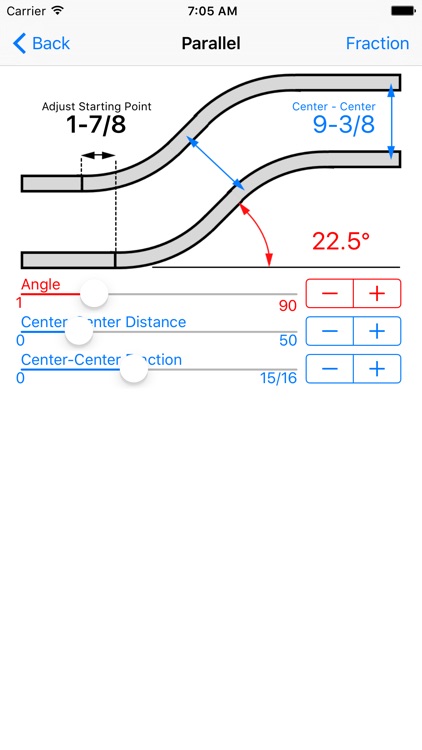

+ Parallel Conduit Spacing
+ Three Bend Saddle
+ Corner Obstacle
+ Segment Bend
+ Minimum Bend Radii per Code
- Conduit Calculations in fractions or Inches

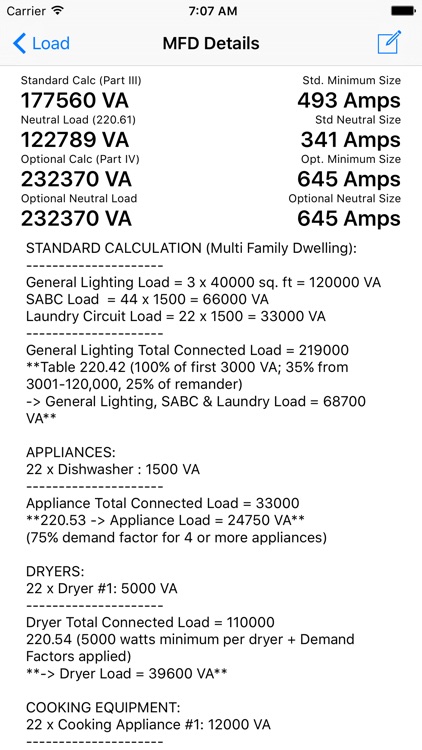

RESIDENTIAL LOAD CALCULATIONS per Article 220
+ Single Family Dwellings, including Part III (Standard), Part IV (Optional), Reduced Neutral Volt-Amps and Current
+ Multi Family Dwellings, including "House" Loads; Standard, Optional and Reduced Neutrals
+ Range (and other Cooking) Calculations

VOLTAGE DROP per Chapter 9
+ Voltage and % Drops
+ Wire Sizing for a given drop/%
+ Maximum Wire Length
+ Maximum Load
+ Impedance per Code

OTHER
+ Cover Depth for buried wires and conduits per 300.5 and 300.50
+ PIRE Wheel
+ Receptacle configurations
+ Phone/Ethernet pinouts
+ More to come...
