What is it about?

A quick reference guide for flange assembly, stud sizes, stud lengths, wrench sizes and recommended torque patterns and torques.

Pipefitters Flange Bolt up and Wrench Size Guide With recommended Torque Patterns

App Details

Version
2.1
Rating
(10)
Size
9Mb
Genre
Reference Utilities
Last updated
December 8, 2014
Release date
October 26, 2014
More info

App Screenshots

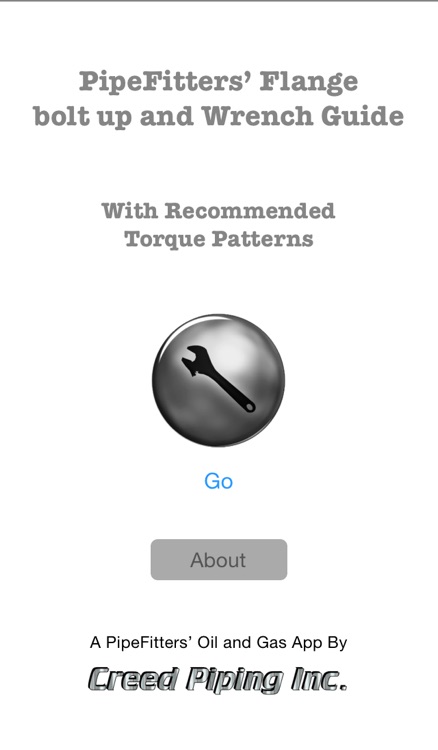

Pipefitters Flange Bolt up and Wrench Size Guide With recommended Torque Patterns screenshot-0
Pipefitters Flange Bolt up and Wrench Size Guide With recommended Torque Patterns screenshot-1
Pipefitters Flange Bolt up and Wrench Size Guide With recommended Torque Patterns screenshot-2
Pipefitters Flange Bolt up and Wrench Size Guide With recommended Torque Patterns screenshot-3

App Store Description

A quick reference guide for flange assembly, stud sizes, stud lengths, wrench sizes and recommended torque patterns and torques.

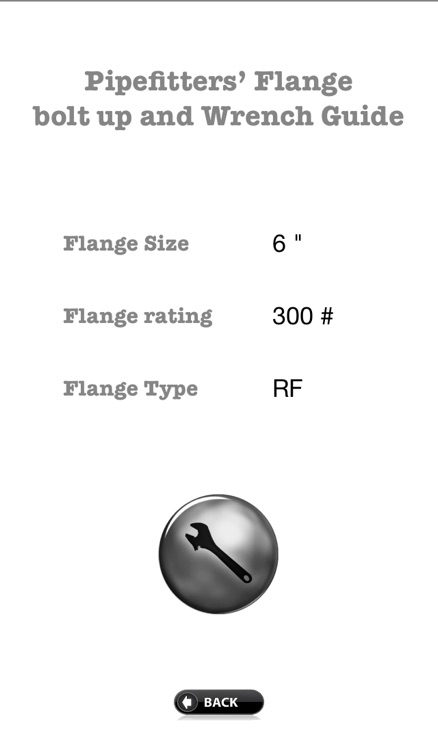

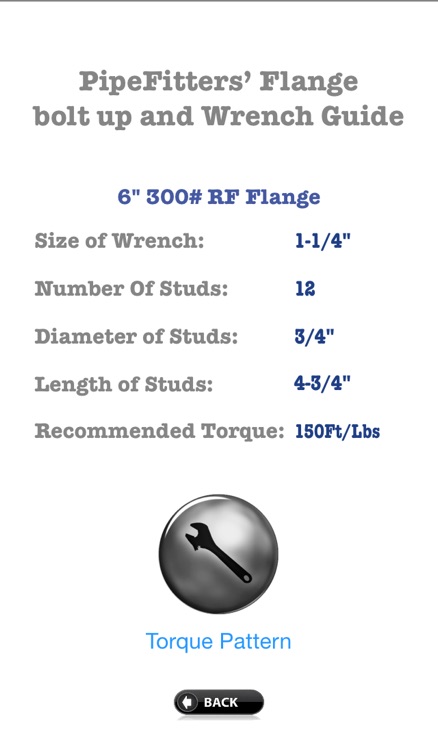

No charts or sheets to go through just put the flange size, flange rating and flange type you are looking to assemble hit the wrench Icon an your stud sizes, stud lengths, wrench sizes and recommended torques will appear.

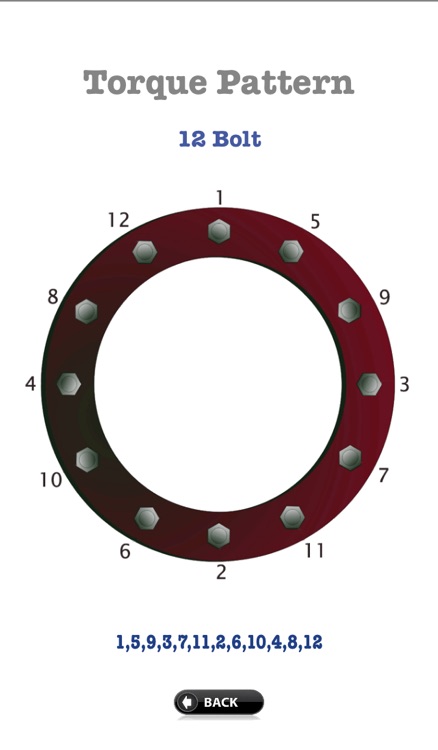

Push the wrench again and the recommended torque patterns will be shown with sequence.
Made for Pipefitters by Pipefitters.
