What is it about?

The Therm Align app helps those performing shaft alignments calculate the value of compensations for thermal growth (also known as dynamic movement) of rotating equipment. As the temperature of machinery changes, the components shrink or grow causing frames, casings and centerlines of the shafts to move. In the most common situation, as machinery heats up, the centerline moves up in the vertical plane. Accounting for this thermal growth is important to the shaft alignment process. Alignment corrections made at ambient conditions should account for any anticipated movement. During correction the equipment will be intentionally offset so it will grow back into proper alignment. Therm Align will calculate the thermal offsets needed to compensate for this thermal movement. Movement of both the stationary and movable components is taken into account to determine the proper compensating “target values” needed on the movable piece of equipment.

Therm Align - A Thermal Growth Calculator for Machine Alignment

App Details

Version
1.1
Rating
(5)
Size
3Mb
Genre
Productivity Education
Last updated
October 1, 2015
Release date
September 7, 2012
More info

App Screenshots

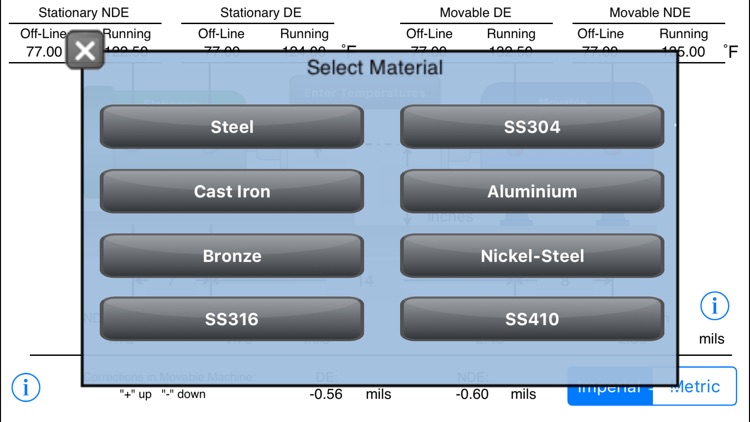

Therm Align - A Thermal Growth Calculator for Machine Alignment screenshot-0
Therm Align - A Thermal Growth Calculator for Machine Alignment screenshot-1
Therm Align - A Thermal Growth Calculator for Machine Alignment screenshot-2
Therm Align - A Thermal Growth Calculator for Machine Alignment screenshot-3

App Store Description

The Therm Align app helps those performing shaft alignments calculate the value of compensations for thermal growth (also known as dynamic movement) of rotating equipment. As the temperature of machinery changes, the components shrink or grow causing frames, casings and centerlines of the shafts to move. In the most common situation, as machinery heats up, the centerline moves up in the vertical plane. Accounting for this thermal growth is important to the shaft alignment process. Alignment corrections made at ambient conditions should account for any anticipated movement. During correction the equipment will be intentionally offset so it will grow back into proper alignment. Therm Align will calculate the thermal offsets needed to compensate for this thermal movement. Movement of both the stationary and movable components is taken into account to determine the proper compensating “target values” needed on the movable piece of equipment.
