DialReadRotary

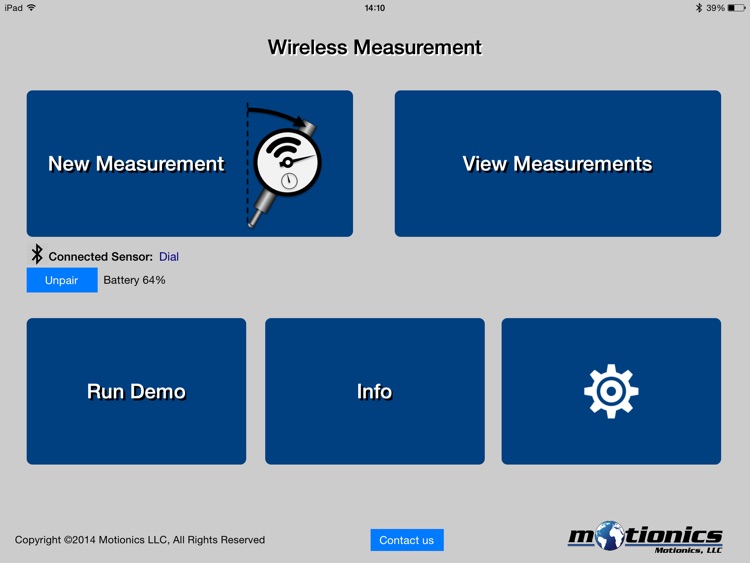

This App connects to the Motionics bluetooth (LE) measurement device and reads the measurement from any digital micrometer, caliper, dial indicator or any other digital measurement instruments from Mitutoyo with SPC output. Its built-in sensor can simultaneously measure tilt angle of the device, making it especially suitable for surface profile test, crankshaft deflection test etc. This system reads the measurements from Motionics wireless bluetooth measurement device and read the values directly from your iPad.
The App requires the bluetooth measurement device but it can be fully tested with all the features from the "Run Demo" page of the App if no device available.

Features:

Angle Measurement:
- Built-in sensor for device tilt angle measurement
- Auto detect rotor 360° rotate and auto stop after one turn in continuous recording mode
- 10°, 30°, 45°, 90° display interval options
- 1° angle measurement resolution

Displacement Measurement:
- Continuous or Single Measurement recording options
- Real-time plots of reading up to 10 samples/second
- 10, 5, 1 Hz sampling rate options
- Customizable reading decimal accuracy
- Off-line post processing plot
- connect to both Bluetooth Low Energy and Wi-Fi devices
- Off-line polar plot for runout, surface profile test and several other applications
- Analog rotating dial indicator (mm and inch) from App
- Reading units: mm/inch
- Pinch/Pan/Zoom/Zoom All for real-time and off-line graphs
- Zoom individually in x or y in plot
- Max/Min/Avg/TIR (total indicator reading) values
- Total recording Samples/Time values
- Green-Red Threshold indicators for TIR
- Define Machine ID/Session Name/Operator Name/Company Name for PDF report
- QR Reader for Machine ID
- Pause/Play Button during recording
- Trigger switch of the device to record a reading either from device or from the App
- SQLite database
- Export SQLite database of the App through Email
- Export CSV file of recordings

PDF Report Generation:
- import machine image from camera/library
- customize your report logo
- import reading plots and polar plots
- import TIR health indicator
- add custom notes
- speech-to-text for notes
- automatic data import into report for summary of test
- user signature
- includes user map/location in the report (can be disabled)
- email the pdf report
- save the pdf report to database
- wireless printing of the pdf report
