What is it about?

The M2 Processor (by Brompton*) is used on Large LED video screen, it takes in a variety of inputs and has 4 output ports that can drive up to a maximum of 500,000 pixels per port, but there are some conditions. Frame Rate, Colour Depth and how many pixels each connected tile has can impact the number of tiles you can drive per Port.

M2 Calculator

App Details

Version
1.0.17
Rating
(3)
Size
4Mb
Genre
Utilities Photo & Video
Last updated
November 28, 2023
Release date
September 12, 2015
More info

App Store Description

The M2 Processor (by Brompton*) is used on Large LED video screen, it takes in a variety of inputs and has 4 output ports that can drive up to a maximum of 500,000 pixels per port, but there are some conditions. Frame Rate, Colour Depth and how many pixels each connected tile has can impact the number of tiles you can drive per Port.

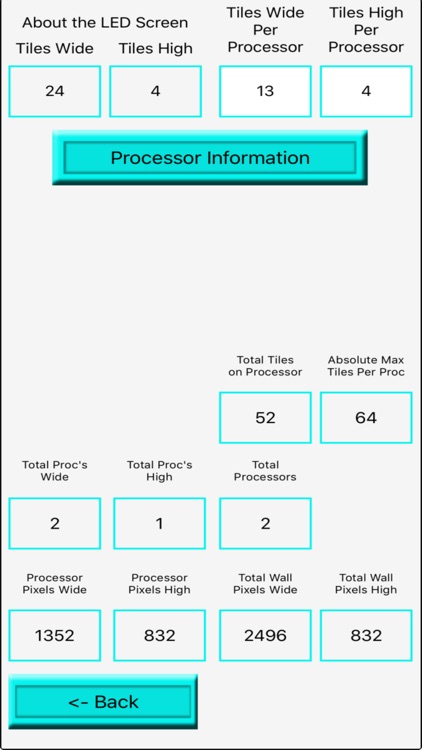

By selecting the type of LED tile in the wall (Currently CT only has the Roe MC7HB, Black OnyX 3.47, Black OnyX 2.8 and the Carbon 4 LED tile with the Brompton Receiver Cards installed) and selecting a frame rate, and colour depth you can see how many tiles you can connect to each port and total tiles to the Processor.

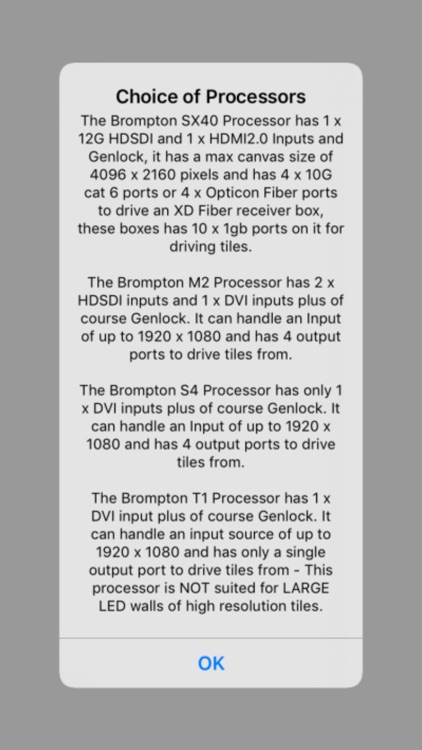

This application has now been updated for the SX40 Processor.

I wrote this application for the Techs and PM's I work with so that they can see for simple LED screens how many M2 Processors they need on the show for a given frame rate and colour depth.

* this program was not written by Brompton, and they do not provide technical support for this program.
