A-Truss 3D

A-Truss 3D is an application for structural engineers or engineering students who need a tool to analyze the space truss

A-Truss 3D is an application for structural engineers or engineering students who need a tool to analyze the space truss

A-Truss 3D

by Jutarus Ratanasethakul
A-Truss 3D
A-Truss 3D
A-Truss 3D

What is it about?

A-Truss 3D is an application for structural engineers or engineering students who need a tool to analyze the space truss.

A-Truss 3D

App Details

Version
2.0
Rating
(2)
Size
9Mb
Genre
Productivity Education
Last updated
September 3, 2023
Release date
February 15, 2017
More info

App Screenshots

A-Truss 3D screenshot-0
A-Truss 3D screenshot-1
A-Truss 3D screenshot-2
A-Truss 3D screenshot-3
A-Truss 3D screenshot-4

App Store Description

A-Truss 3D is an application for structural engineers or engineering students who need a tool to analyze the space truss.

A-Truss 3D analyse the space truss by using the Stiffness Matrix Method, providing following features:

- Easy to use UI with 3D graphics.

- Solutions include node displacements, member axial forces and stress.

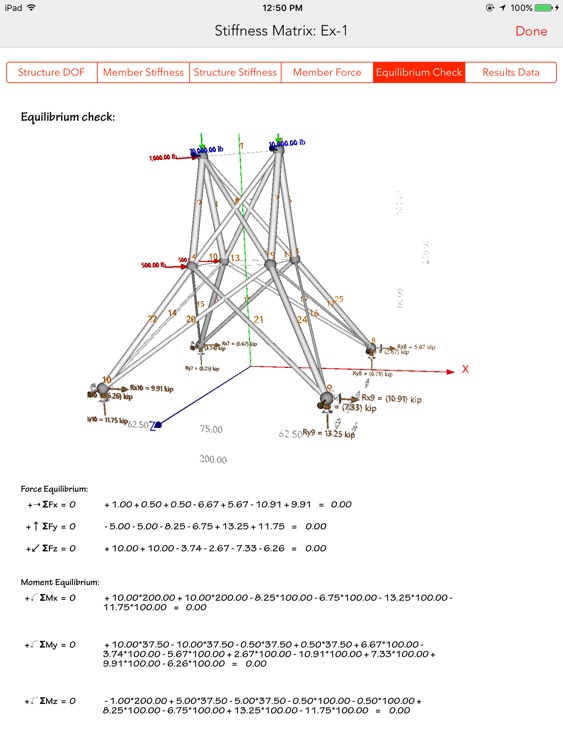

- Equilibrium check is very easy, you can check against the truss model in 3D for the loads, reactions and moment arms.

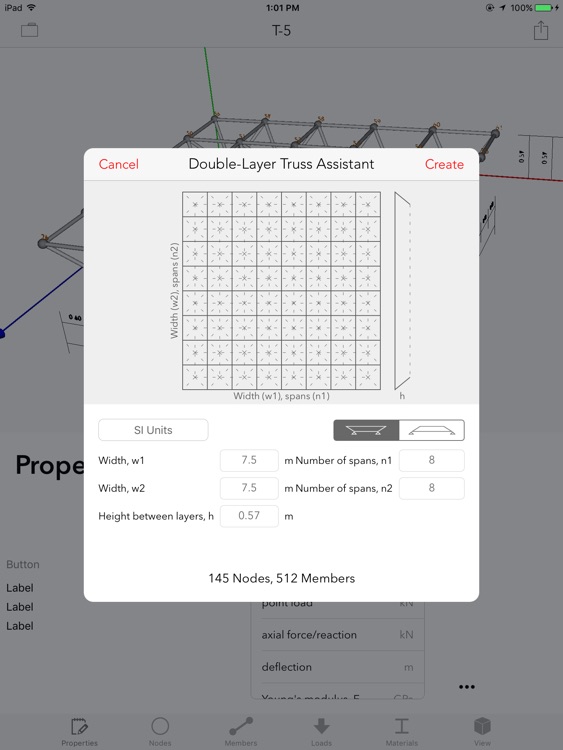

- Truss Assistant Creator is very useful for the large and complex truss, to manually input the nodes and members for the Double-Layer Truss like 61 nodes and 400 members is very tedious and is prone to error, but with the Assistant Creator you input just a few information and the app will automatically generate all the data for you. "Double-Layer Truss" type is available for truss assistant creator and more generic types of 3D truss will be added.

- The app use the Direct Stiffness Matrix to solve the 3D Truss with the detail of calculation.

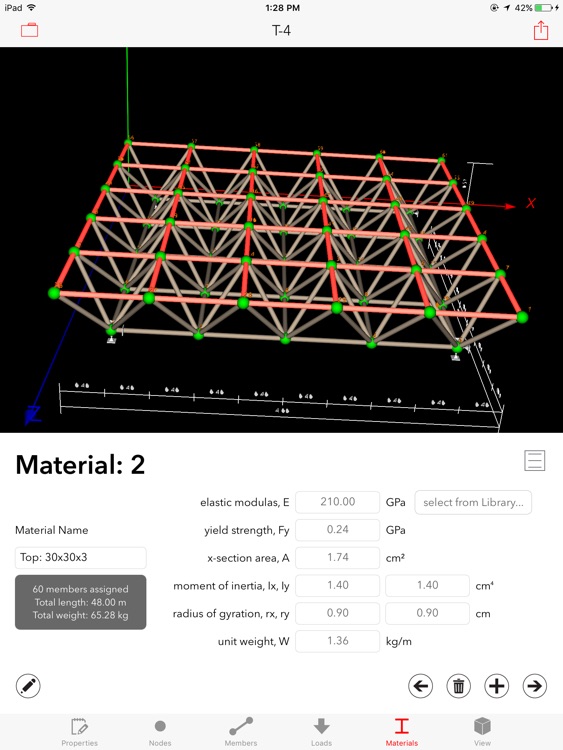

- With the 3D graphic you can view your truss in any direction.

- 3 options to view the truss
- Proportion: draw truss member according to the size of members.
- Equal: draw all members as same size.
- Wireframe: draw truss members as wireframe (recommend for large and complex truss)

- Truss calculation results as PDFs file format for printing and sending via email.

- Support for large Space Truss: the app has been tested on old device iPad 2 with Retina (since 2012) with the 145 nodes and 512 members without any problems.
