ACcircuits1

This App has 12 examples of how circuit analysis techniques such as KCL, KVL and Superposition are applied

This App has 12 examples of how circuit analysis techniques such as KCL, KVL and Superposition are applied

ACcircuits1

by Charles L Ryder
ACcircuits1
ACcircuits1
ACcircuits1

What is it about?

This App has 12 examples of how circuit analysis techniques such as KCL, KVL and Superposition are applied. It is not a substitute for the lectures and coursework necessary to learn circuit analysis. This app simply provides examples of circuit analysis in addition to what is provided in your class lectures and textbook.

ACcircuits1

App Details

Version
2.0
Rating
(1)
Size
6Mb
Genre
Education Business
Last updated
June 11, 2015
Release date
December 3, 2011
More info

App Store Description

This App has 12 examples of how circuit analysis techniques such as KCL, KVL and Superposition are applied. It is not a substitute for the lectures and coursework necessary to learn circuit analysis. This app simply provides examples of circuit analysis in addition to what is provided in your class lectures and textbook.

There are a total of 12 circuits that are analyzed:
1 Inductive Reactance
1 Capacitive Reactance
2 RL
2 RC

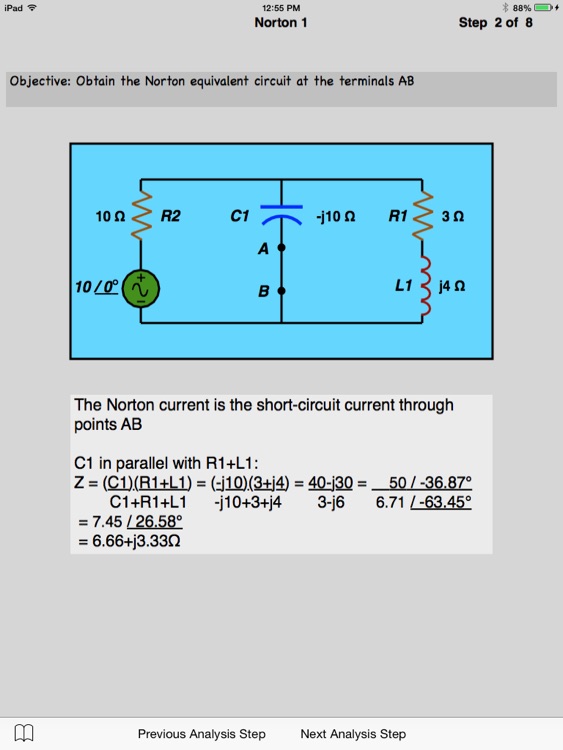

2 Thevenin
2 Norton
2 Superposition

Press the "bookmark" icon to bring up the list of circuits. Select a circuit in the popover and then press outside the popover to dismiss it and display the selected circuit. The interface allows you to step forward or backward through each analysis step.

Note:
This is a now a free App but uses interstitial ads that will display, if available, after the popover is dismissed. There are no banner ads and no in-app purchases.
