AnimatedFlightComputer

by MICRI Consult

This app solves a wind triangle by allowing you entering four values out of six (three speeds and three angles) and calculating the remaining two. It then explains how you get these results with a flight computer, by animating it. It rotates the disk, slides it and add marks. It also shows what value to use for each step towards the solution.

Version
1.0
Rating
NA
Size
42Mb
Genre
Last updated
July 29, 2018
Release date
July 24, 2018

App Store Description

This app solves a wind triangle by allowing you entering four values out of six (three speeds and three angles) and calculating the remaining two. It then explains how you get these results with a flight computer, by animating it. It rotates the disk, slides it and add marks. It also shows what value to use for each step towards the solution.

It also contains an example generator for the 15 different combinations of 4 given values with 2 to calculate. Occasionally it also produces "impossible" values, such as triangles degenerated to a single line or data for which it is not possible to construct a triangle. This is deliberate to let a (student) pilot think about the data entered and find good data starting from there.

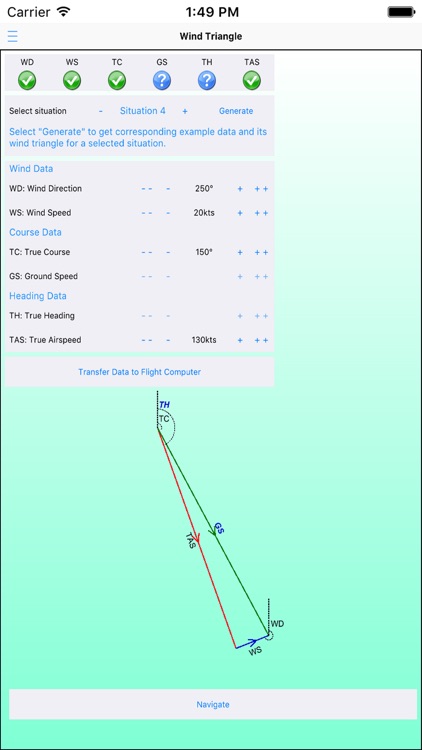

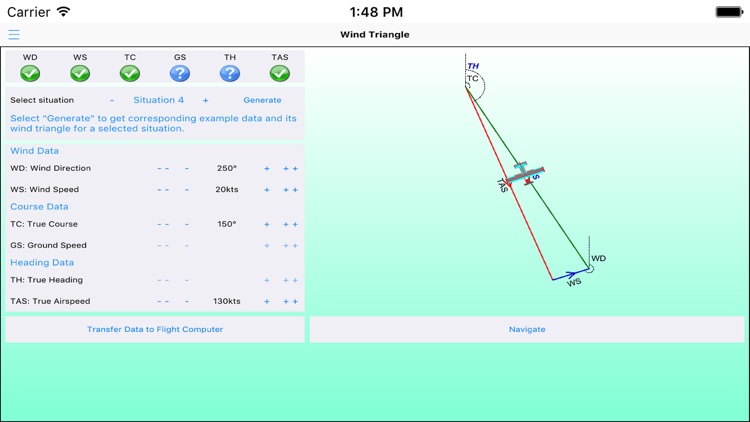

For each set of good data, it draws a wind triangle, giving you an insight in how to navigate. It illustrates this by showing a little plane flying along a course while compensating for the wind using a correct heading.

This app is the professional version of the free Basic Flight Computer app.

Features
- Solves any kind of wind triangle problem and explains how to find those results on a flight computer.

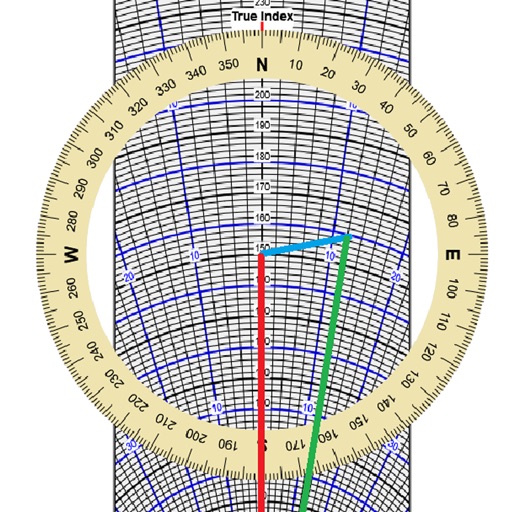

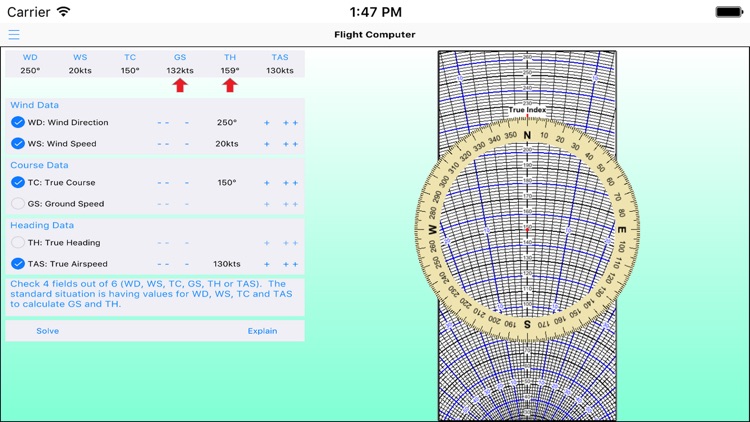

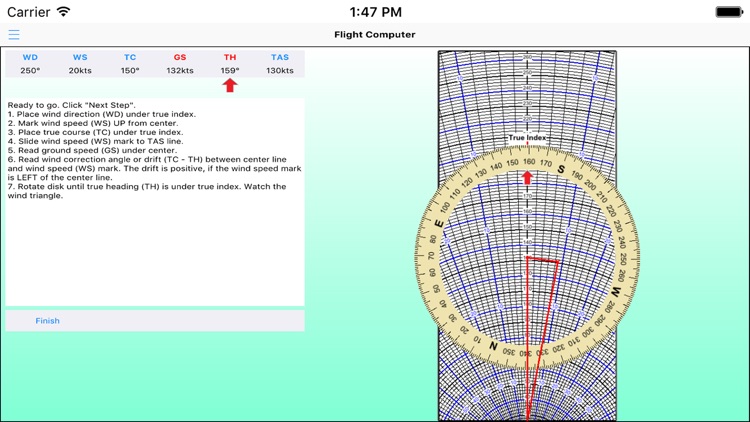

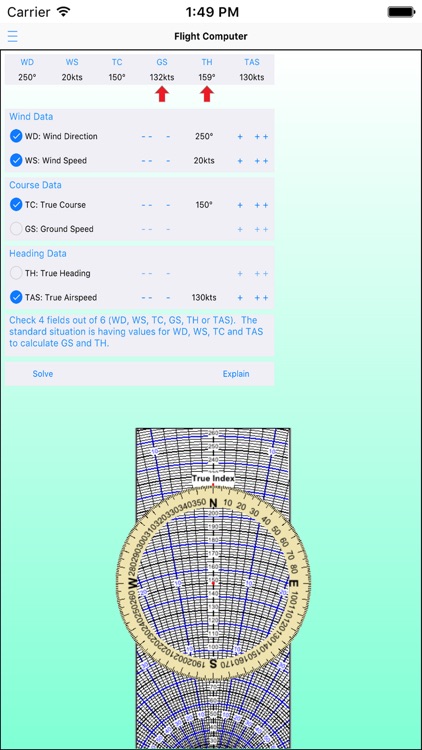

- Contains an accurate visualization of a flight computer and animates the different steps towards a solution.
- Generates examples for 15 different situations of four given values and two results to obtain. Draws the wind triangle complying with the given data.
- Contains a small animation showing why you need a wind triangle to navigate.

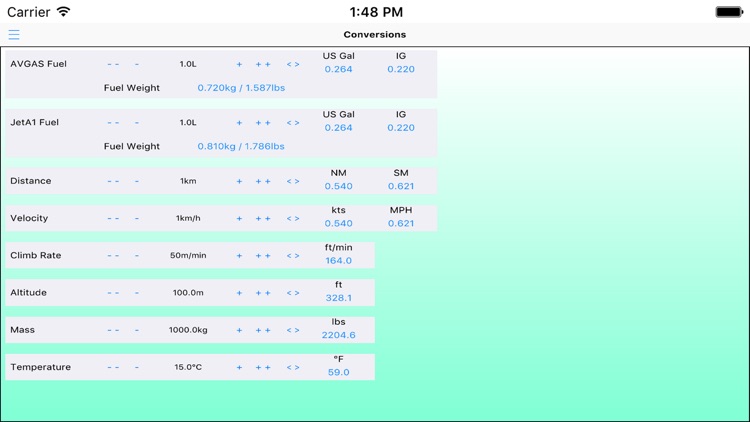

- Offers conversions for fuel, speed, climb rate, altitude, distance, mass and temperature.

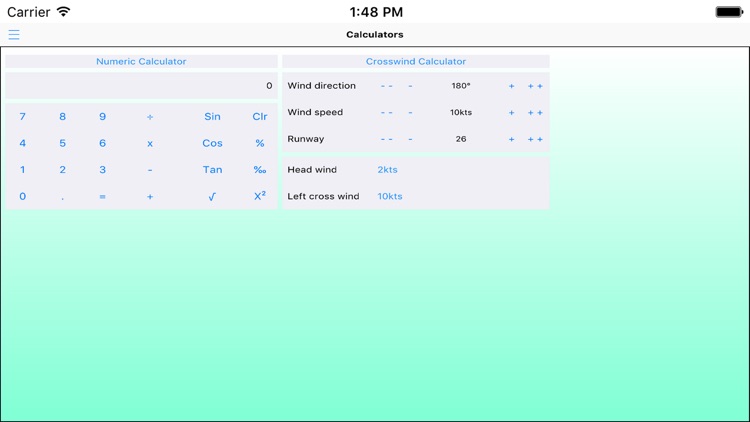

- A small calculator helps you determining e.g. EET. Calculates the cross wind, head wind and tail wind.
