Basic Attenuator Calculator (BasicATTCalc) helps you calculate various resistive attenuators which are used in many audio, video and RF circuit design applications

Basic Attenuator Calculator (BasicATTCalc) helps you calculate various resistive attenuators which are used in many audio, video and RF circuit design applications

BasicATTCalc

by TAKAHIKO FUKUYAMA
BasicATTCalc
BasicATTCalc
BasicATTCalc

What is it about?

Basic Attenuator Calculator (BasicATTCalc) helps you calculate various resistive attenuators which are used in many audio, video and RF circuit design applications.

BasicATTCalc

App Details

Version
2.2.0
Rating
NA
Size
6Mb
Genre
Productivity
Last updated
February 4, 2023
Release date
December 18, 2014
More info

App Screenshots

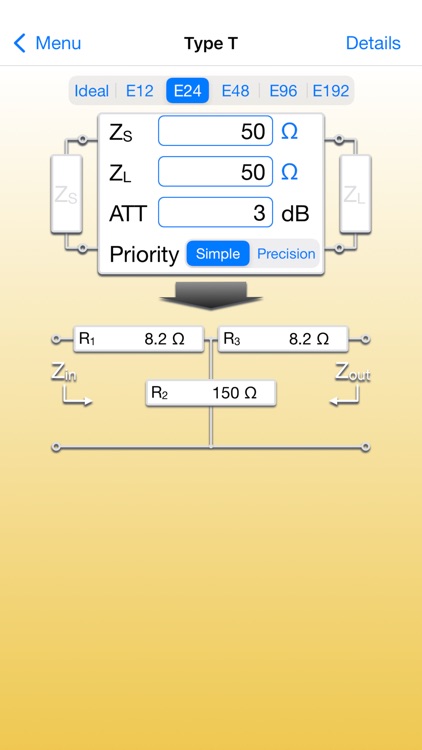

BasicATTCalc screenshot-0

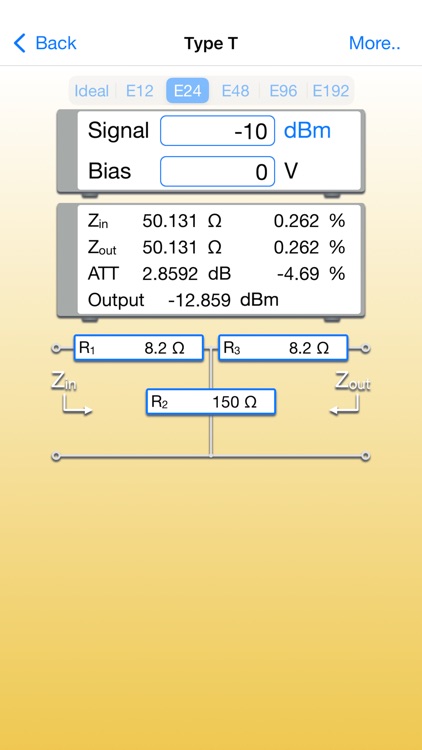

BasicATTCalc screenshot-1
BasicATTCalc screenshot-2
BasicATTCalc screenshot-3
BasicATTCalc screenshot-4
BasicATTCalc screenshot-5
BasicATTCalc screenshot-6
BasicATTCalc screenshot-7
BasicATTCalc screenshot-8
BasicATTCalc screenshot-9

App Store Description

Basic Attenuator Calculator (BasicATTCalc) helps you calculate various resistive attenuators which are used in many audio, video and RF circuit design applications.
The standard resistance values based on E-series numbers are outputted in inputting necessary conditions such as source impedance, load impedance and attenuation.

Features
The calculable attenuators and impedance converters are as follows:
- Type T
- Type Pi (π)
- Type H
- Type O
- Type Bridged T
- Type Bridged H
- Type L (Impedance converter)
- Type U (Impedance converter)

Calculated resistance values are displayed with ideal values or the following E-series number specified either.
E12, E24, E48, E96, E192

The most suitable values are calculated in selecting priority calculation whether Simple or Precision.
- Simple:
Perform calculations that the nearest values are derived to desired impedances and attenuation by the simple structure
- Precision:
Perform calculations that the nearest values are derived to desired impedances and attenuation by consisting of up to 4 resistors per an element

In addition to resistance values, this application provides you with input impedance, output impedance and calculated attenuation with mismatch loss.

If necessary, it is able to calculate power dissipated by each resistor and parameters such as reflection coefficient, VSWR, return loss and mismatch loss.

Attention
Because the standard resistors are used, the following restriction is set up.
- Range of resistance value: 1Ω ~ 10MΩ (except ideal values)

Disclaimer:
AppAdvice does not own this application and only provides images and links contained in the iTunes Search API, to help our users find the best apps to download. If you are the developer of this app and would like your information removed, please send a request to takedown@appadvice.com and your information will be removed.
