What is it about?

Cable size calculator to calculate the required cable sizes for various cables types, installation methods, correction factors and protective devices, BS7671 18th edition version.

Cable Calc

App Details

Version
1.3.5
Rating
NA
Size
3Mb
Genre
Utilities Reference
Last updated
August 22, 2020
Release date
October 9, 2015
More info

App Screenshots

Cable Calc screenshot-0
Cable Calc screenshot-1
Cable Calc screenshot-2
Cable Calc screenshot-3
Cable Calc screenshot-4
Cable Calc screenshot-5
Cable Calc screenshot-6
Cable Calc screenshot-7
Cable Calc screenshot-8
Cable Calc screenshot-9

App Store Description

Cable size calculator to calculate the required cable sizes for various cables types, installation methods, correction factors and protective devices, BS7671 18th edition version.

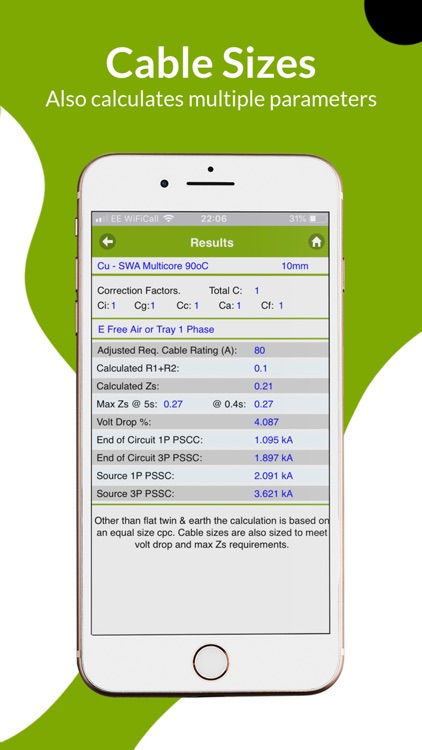

Calculates cable size, r1+r2, volt drop %, and determines what the expected Zs value will be.

Carry out on the spot instant cable calculations, great for electrical surveys, condition reports, circuit design and cable sizing on the go.

Features:
- Print, Save, Email & Share the cable calculation results PDF (from the print function)

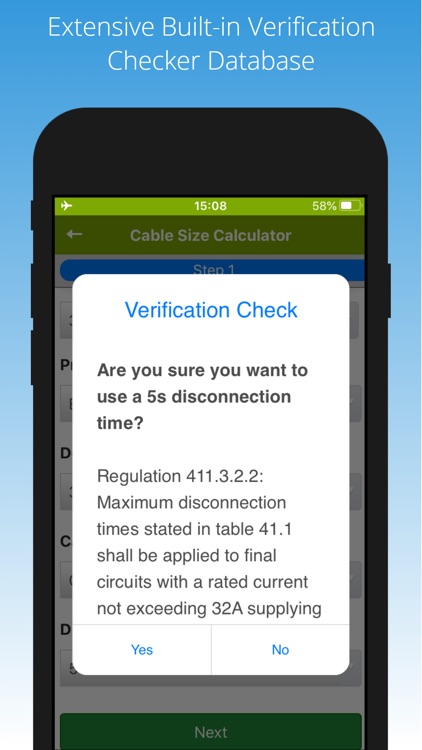

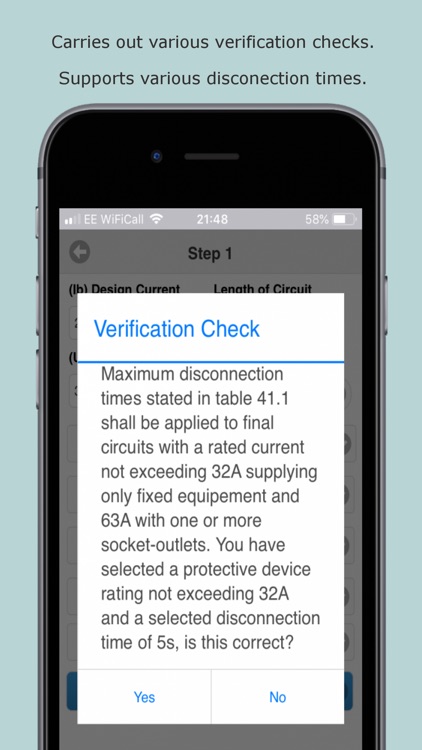

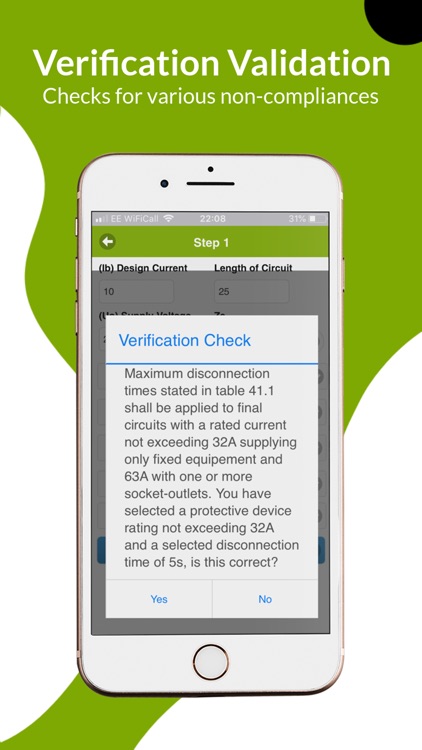

- Verification checks and helpful hints

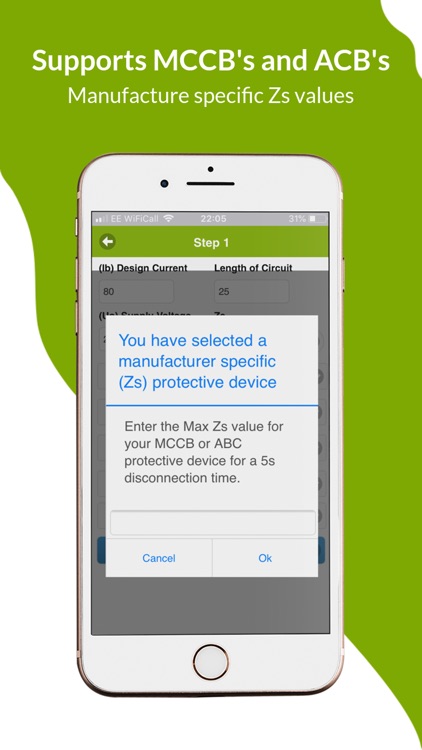

- Support for manufacturer specific BS EN 60947-2

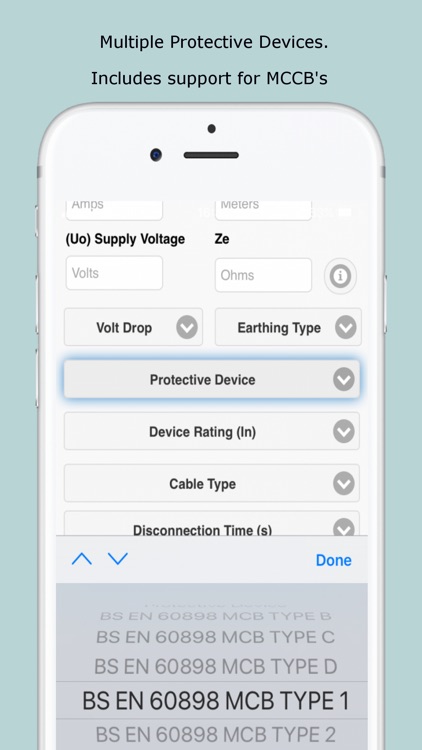

(max Zs) MCCB's & ACB's

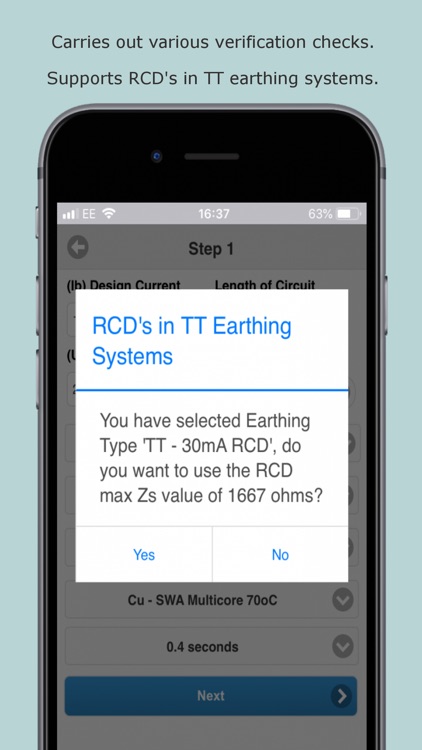

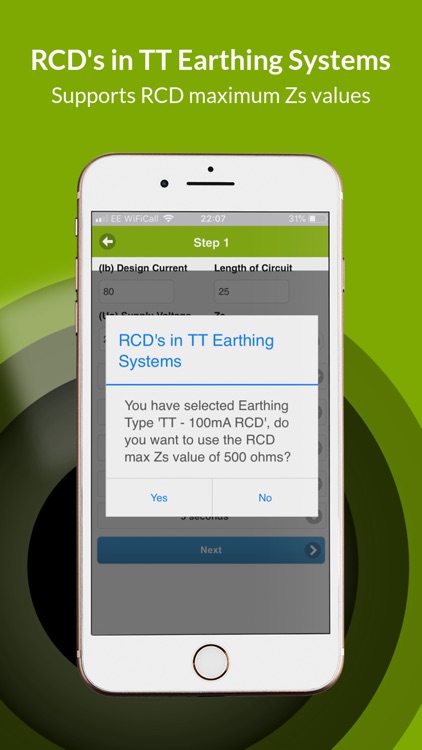

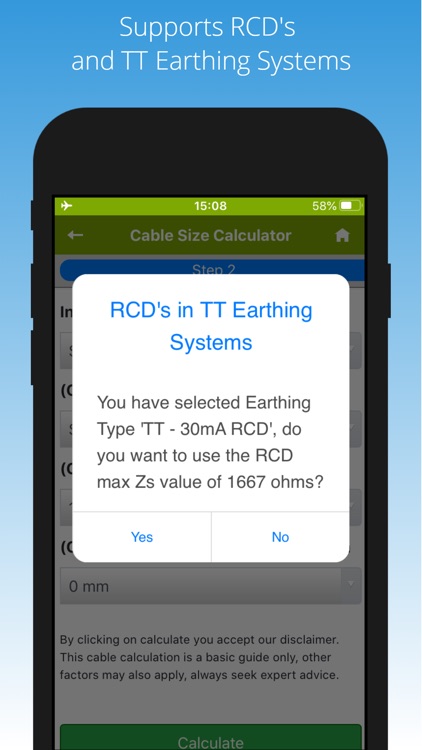

- Support for RCD's in TT Earthing Systems

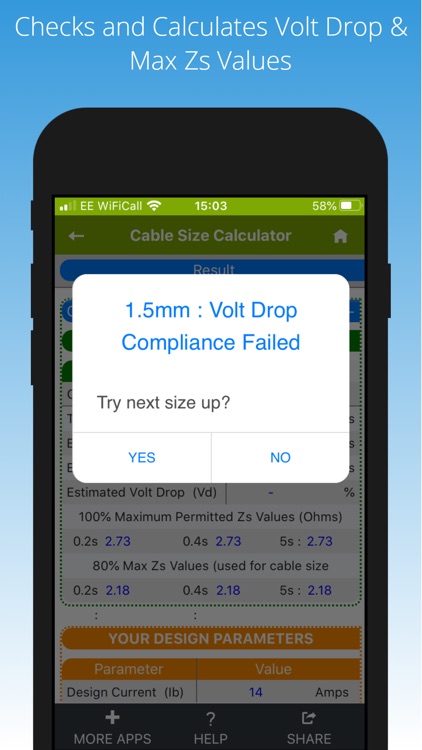

This cable calculator also checks the volt drop %, max Zs, R1+R2 and applies the relevant correction factors from an easy to use selection list of options.

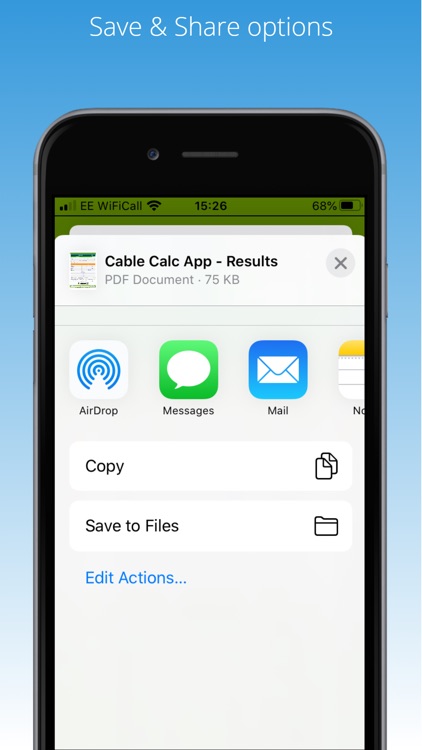

How to share or email the cable calc results PDF file:

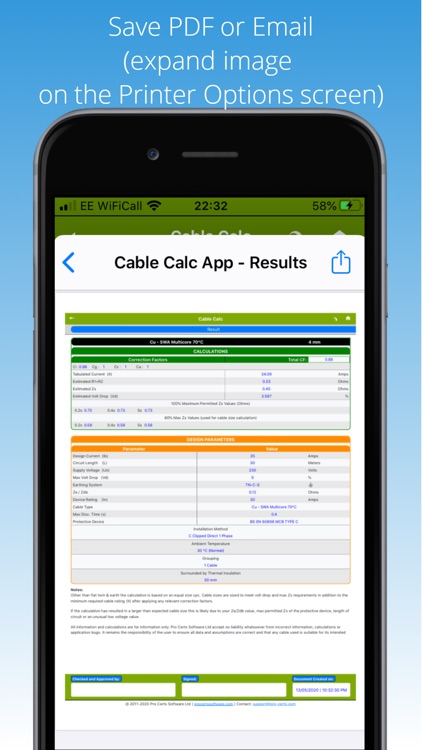

1) On the Results screen tap "Print".
2) Expand the displayed image (preview window is then displayed).
4) Tap the share icon to show your device's share and save options.

Calculate circuit cable sizes for final circuits, distribution circuits and sub main electrical supplies.

This cable sizing app can also be used to check the electrical cable ratings for different electrical installation methods to ensure existing cables or wires are compliant on existing installations for an Electrical Installation Condition Report (EICR) including volt drop and Max Zs.

You can also use cable calc to check existing installed cable sizes and circuits to check for compliance and to confirm the correct cable size for the type of cable, installation method and length of circuit has been selected and installed correctly.

This cable calculator also takes into account and applies the following factors for it's cable size calculation formula:
+ Volt drop
+ Correction factors
+ Maximum disconnection times
+ Length of circuit
+ Various installation methods
+ Various cable types
+ Tabulated Current
+ Maximum Zs Values
+ Calculates Zs
+ Calculates r1+r2
+ Calculates volt drop %
+ Adjusted required minimum required cable ratings
+ Calculates cable size

Correction Factors:
Cg - Grouping
Ca - Ambient air temperature
Ca - Ambient ground temperature (if cable is buried
or in a duct)
Ci - Thermal insulation
Cf - BS 3036 semi-enclosed fuses (rewire-able)

How to use:

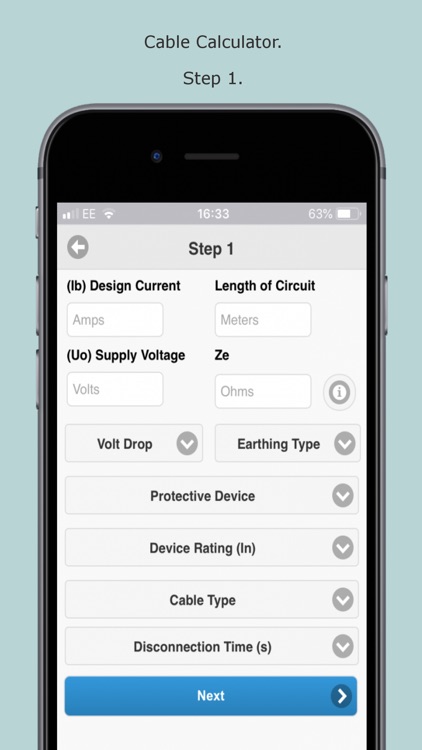

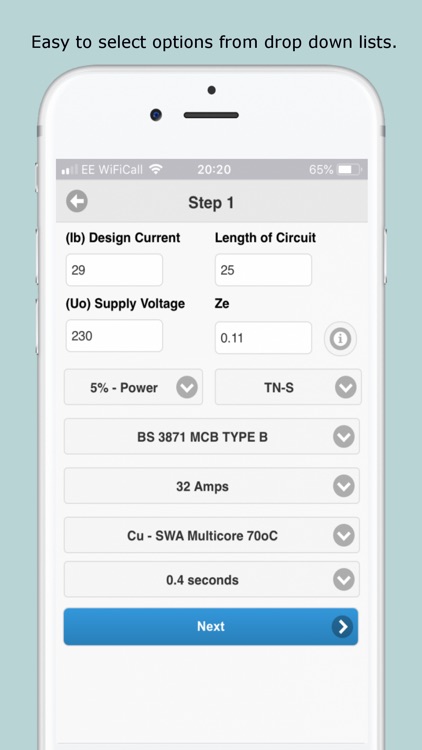

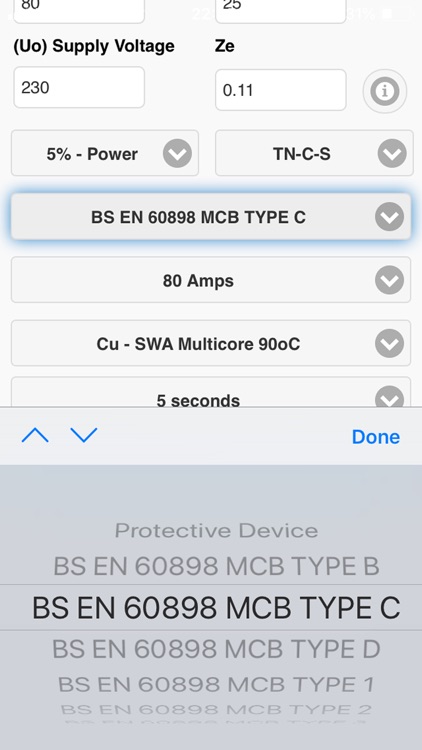

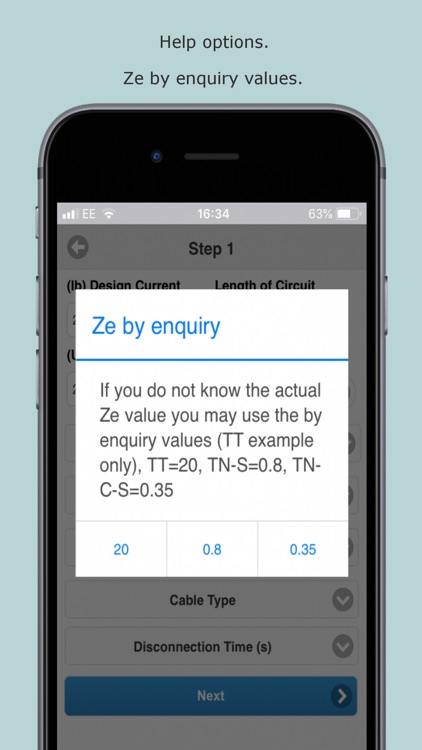

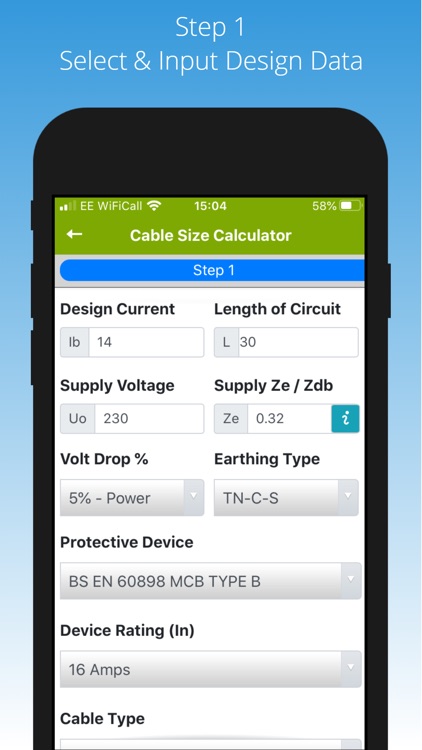

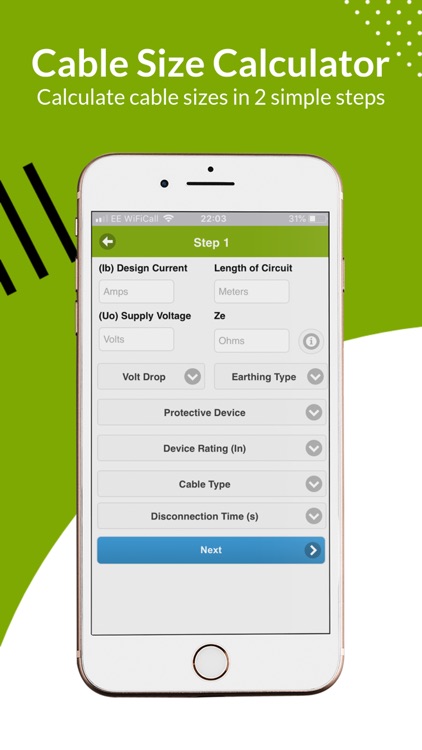

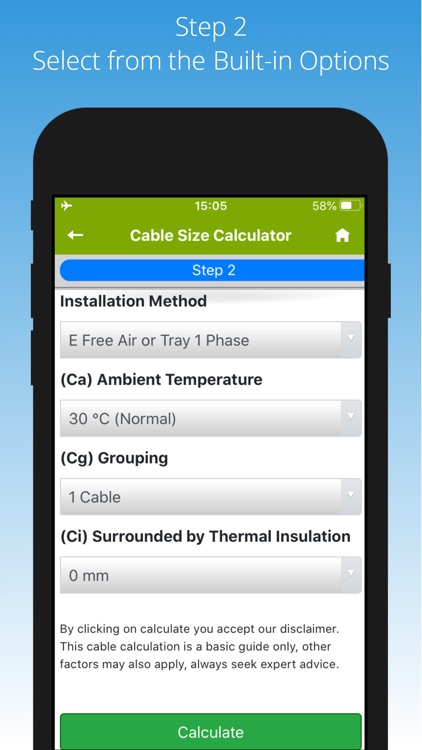

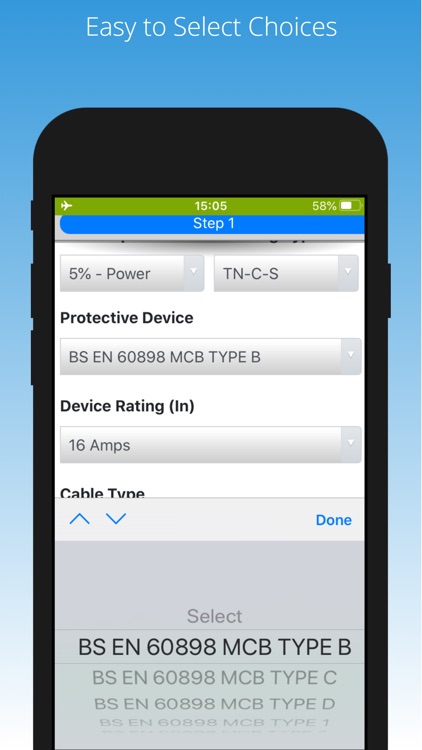

1) STEP 1 - Enter your cable calculation design parameters

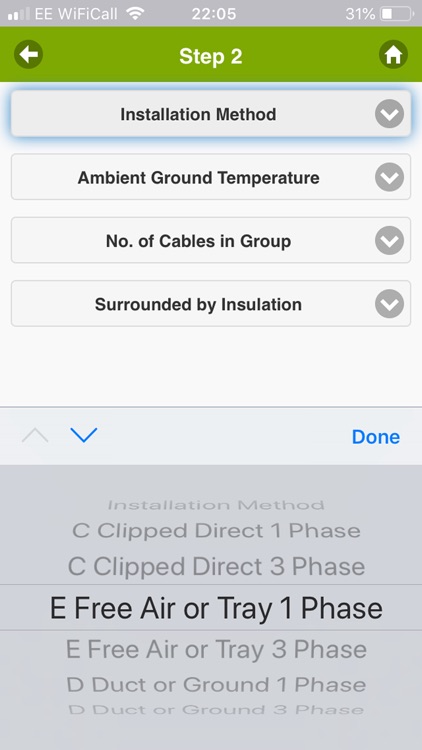

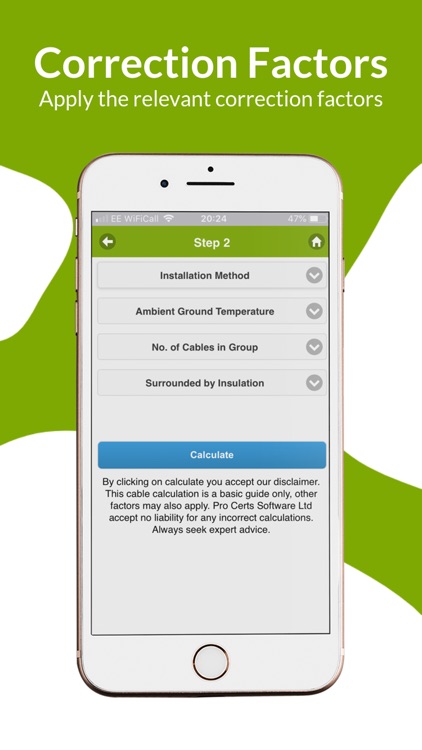

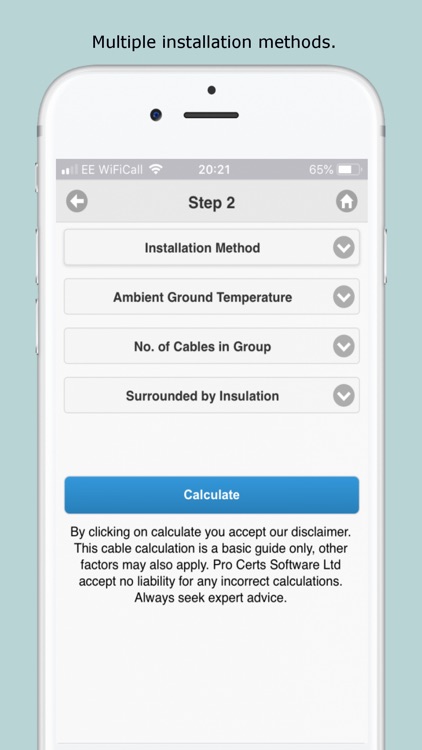

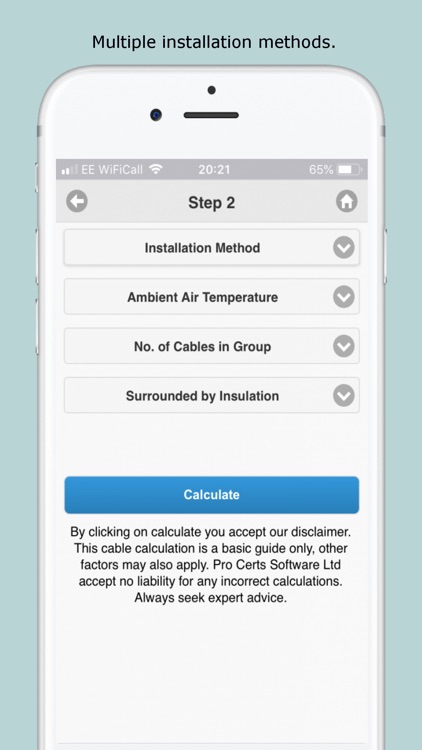

2) STEP 2 - Select an installation method & apply any relevant correction factors
3) Tap "Calculate" to calculate the cable size
4) Print cable calculation results

A handy cable size calculator for iPhone and iPad.

You may also like our new 'Pro Certs' app for iPad, produce professional electrical installation certificates and condition reports on the go.

Check out our collection of electrical apps for iOS https://www.procertssoftware.com/apps
