Circuit Colors

Circuit Color is a simple application to find out the color code of the electrical conductors

Circuit Color is a simple application to find out the color code of the electrical conductors

Circuit Colors

by Francisco Alcala
Circuit Colors
Circuit Colors
Apple Watch
Circuit Colors Apple Watch App
Circuit Colors Offers Apple Watch App
Check the details on WatchAware

What is it about?

Circuit Color is a simple application to find out the color code of the electrical conductors. It eliminates the use of cheat sheets or mental calculations or any other method you use now to determine the appropriate color of the circuit.

App Details

Version
4.1
Rating
(15)
Size
16Mb
Genre
Productivity Utilities
Last updated
April 19, 2016
Release date
January 6, 2011
More info

App Store Description

Circuit Color is a simple application to find out the color code of the electrical conductors. It eliminates the use of cheat sheets or mental calculations or any other method you use now to determine the appropriate color of the circuit.

Systems Included:
120V / 240V - 42 circuits*
120V / 208V - 126 circuits*
277V / 480V - 126 circuits*

Add as many panels as you want.

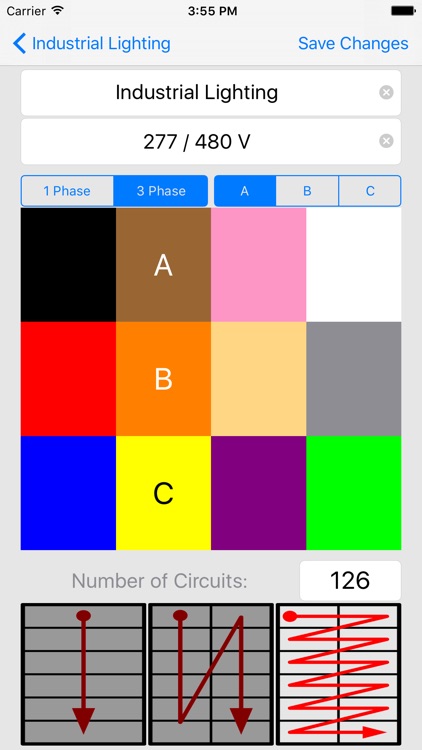

+Single Phase or Three Phase

Choose the phase colors and combinations
+Black, Red, Blue
+Brown, Orange, Yellow
+Pink, Tan, Purple
+White, Green, Gray

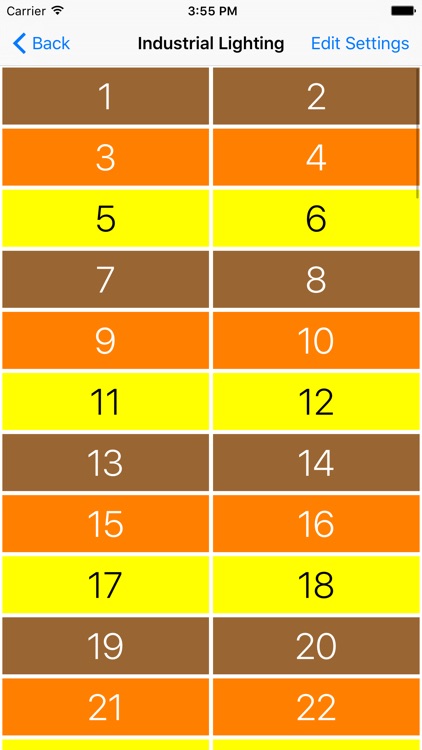

Choose the numbering style.
+Single Sided panels numbered down one side.
+Double Sided panels with conventional "zig zag" numbering.

Choose the number of circuits.
+42 standard
+84 for two conventional panels
+whatever number you want
