CNC Lathe Simulator Lite

A software simulator of a numerical control (CNC) lathe is an educational methodological development intended for basic familiarization of novice machine building specialists with the principles of programming parts turning operations using standard G/M-code (Fanuc System A)

A software simulator of a numerical control (CNC) lathe is an educational methodological development intended for basic familiarization of novice machine building specialists with the principles of programming parts turning operations using standard G/M-code (Fanuc System A)

CNC Lathe Simulator Lite

by Ilya Obraztsov
CNC Lathe Simulator Lite
CNC Lathe Simulator Lite
CNC Lathe Simulator Lite

What is it about?

A software simulator of a numerical control (CNC) lathe is an educational methodological development intended for basic familiarization of novice machine building specialists with the principles of programming parts turning operations using standard G/M-code (Fanuc System A).

CNC Lathe Simulator Lite

App Details

Version
1.1.5
Rating
(7)
Size
61Mb
Genre
Education
Last updated
May 18, 2020
Release date
February 19, 2020
More info

App Screenshots

CNC Lathe Simulator Lite screenshot-0
CNC Lathe Simulator Lite screenshot-1
CNC Lathe Simulator Lite screenshot-2

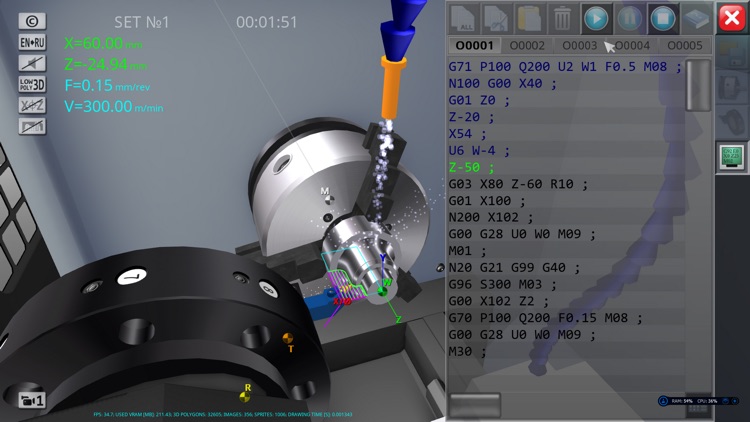

CNC Lathe Simulator Lite screenshot-3

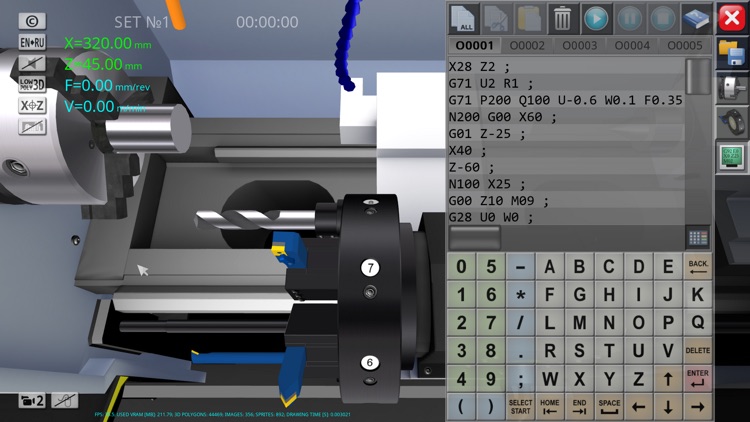

CNC Lathe Simulator Lite screenshot-4

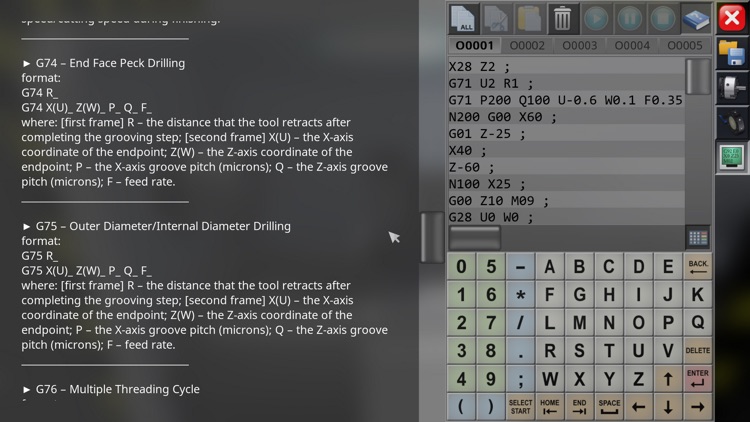

CNC Lathe Simulator Lite screenshot-5

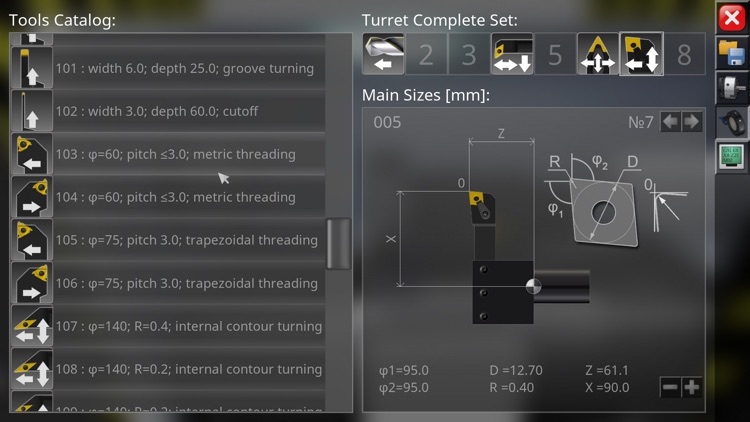

CNC Lathe Simulator Lite screenshot-6

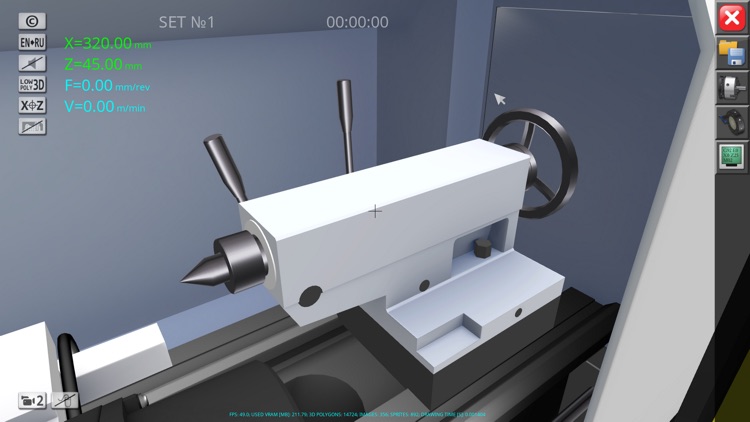

CNC Lathe Simulator Lite screenshot-7
CNC Lathe Simulator Lite screenshot-8
CNC Lathe Simulator Lite screenshot-9

App Store Description

A software simulator of a numerical control (CNC) lathe is an educational methodological development intended for basic familiarization of novice machine building specialists with the principles of programming parts turning operations using standard G/M-code (Fanuc System A).

The basis of the three-dimensional simulation model is a lathe machine with a classical arrangement of units, equipped with a CNC system, an eight-position turret, a three-jaw chuck, a tailstock, a coolant supply system and other machinery. Material processing is performed on two axes in the horizontal plane.

Field of application of the software product: educational process using computer technology: laboratory lessons of students in computer classes, distance learning, demonstration support of lecture material in the group of areas of training and specialties: «Metallurgy, Engineering and Material Processing».

The functionality of the simulator: preparation of texts of control programs of turning operations in the format of a standard G/M-code, checking control programs for syntax and technological errors, playing on the computer screen (or other computing device) three-dimensional graphic models of the main components of the lathe machine and metal-cutting tools to simulate the process of turning metal, the three-dimensional visualization of the process of forming parts during turning on the compiled control programs, visualization of toolpaths, implementation of interactive user interaction with the simulation model of technological equipment.

Graphics software uses OpenGL 3.0 components. The graphical user interface of the program is implemented in English and Russian.

The application requires at least 200 Mb Video RAM!

Limitations of the Lite version: not all cutting tools are available, there is advertising content.
