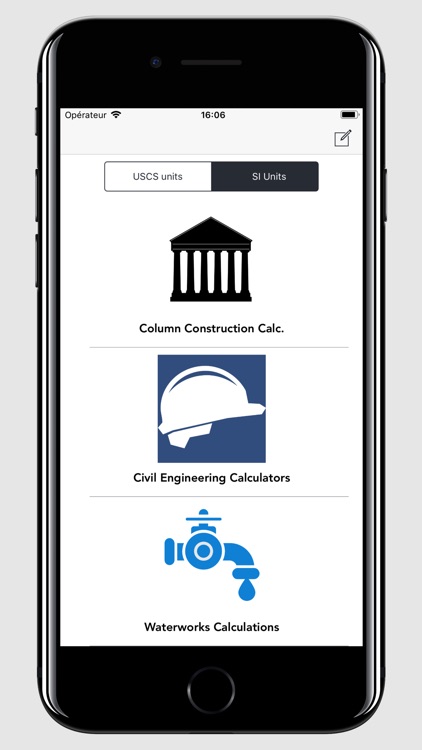

Column Construction Calculator

Column Construction Calculator contains 35 calculators, to measure and calculate different columns and civil engineering parameters. Automatic and accurate calculations and conversions with every unit and value changes.

Available in Metric ( SI ) and Imperial ( USCS ) Units

Available in English, Français, Español, Italiano, Deutsch & Português

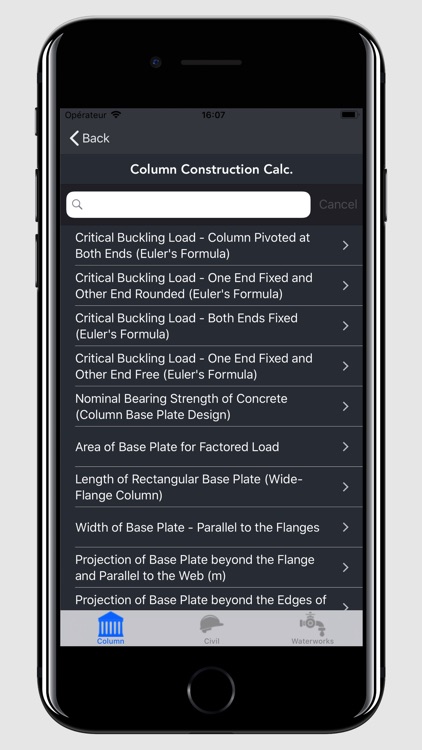

Column Calculator contains following 35 Calculators:

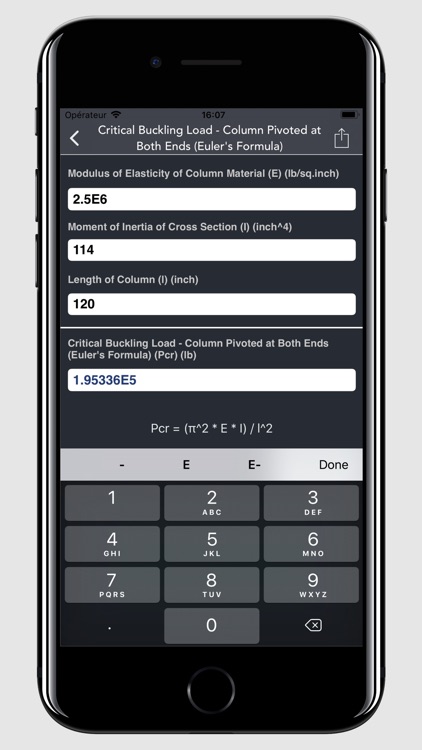

• Critical Buckling Load - Column Pivoted at Both Ends (Euler's Formula)
• Critical Buckling Load - One End Fixed and Other End Rounded (Euler's Formula)
• Critical Buckling Load - Both Ends Fixed (Euler's Formula)
• Critical Buckling Load - One End Fixed and Other End Free (Euler's Formula)

• Nominal Bearing Strength of Concrete (Column Base Plate Design)
• Area of Base Plate for Factored Load
• Length of Rectangular Base Plate (Wide-Flange Column)
• Width of Base Plate - Parallel to the Flanges

• Projection of Base Plate beyond the Flange and Parallel to the Web (m)
• Projection of Base Plate beyond the Edges of the Flange and Perpendicular to the Web (n)

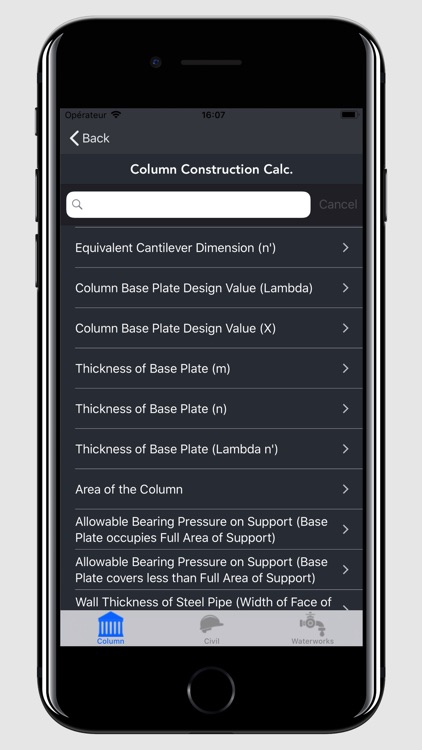

• Equivalent Cantilever Dimension (n')
• Column Base Plate Design Value (Lambda)

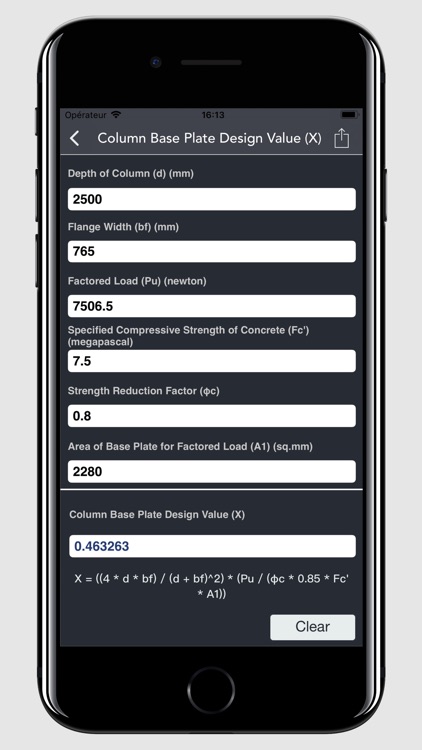

• Column Base Plate Design Value (X)
• Thickness of Base Plate (m)
• Thickness of Base Plate (n)

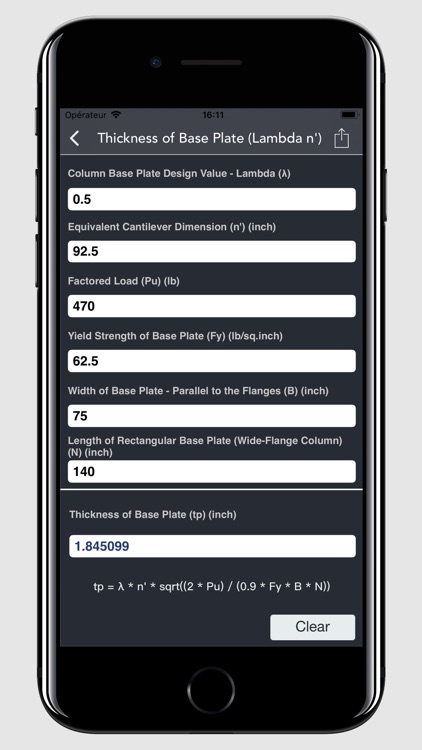

• Thickness of Base Plate (Lambda n')

• Area of the Column
• Allowable Bearing Pressure on Support (Base Plate occupies Full Area of Support)
• Allowable Bearing Pressure on Support (Base Plate covers less than Full Area of Support)
• Wall Thickness of Steel Pile (Width of Face of Rectangular Section)
• Wall Thickness of Steel Pile (Outside Diameter of Circular Section)
• Design Strength of Axially Loaded Composite Column
• Design Strength of Concrete (Direct Bearing)

• Effective Length Factor
• Slenderness Ratio

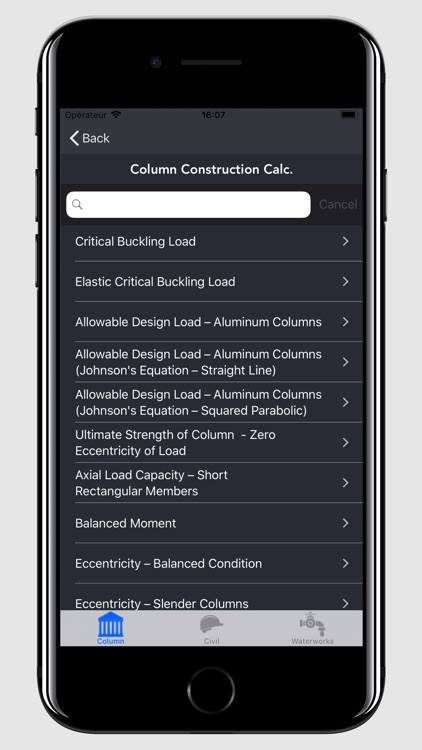

• Critical Buckling Load

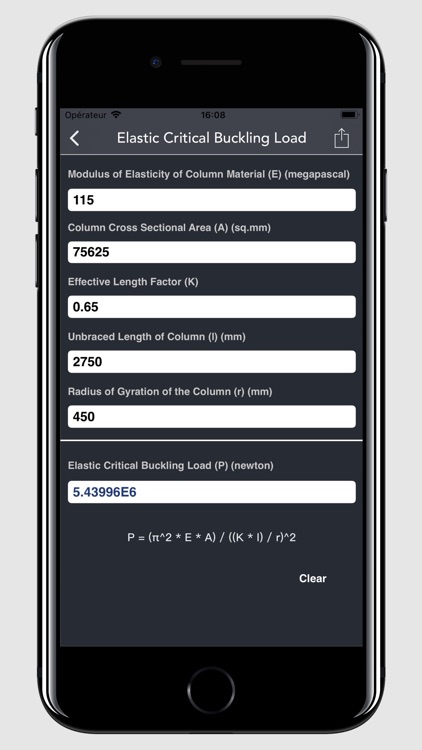

• Elastic Critical Buckling Load

• Allowable Design Load – Aluminum Columns
• Allowable Design Load – Aluminum Columns (Johnson’s Equation – Straight Line)
• Allowable Design Load – Aluminum Columns (Johnson’s Equation – Squared Parabolic)

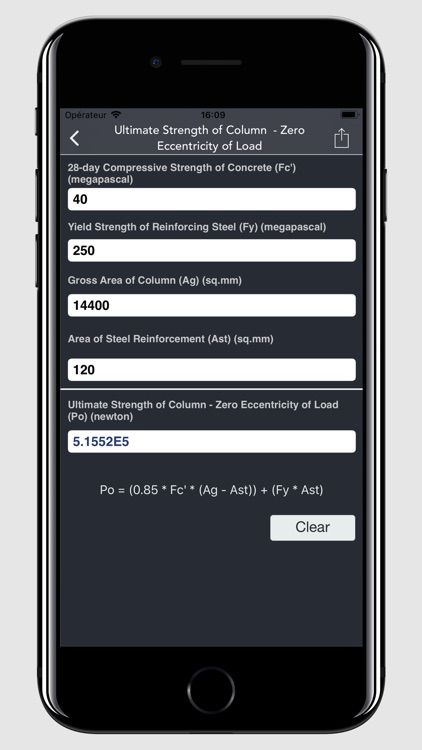

• Ultimate Strength of Column - Zero Eccentricity of Load

• Axial Load Capacity – Short Rectangular Members
• Balanced Moment
• Eccentricity – Balanced Condition
• Eccentricity – Slender Columns
