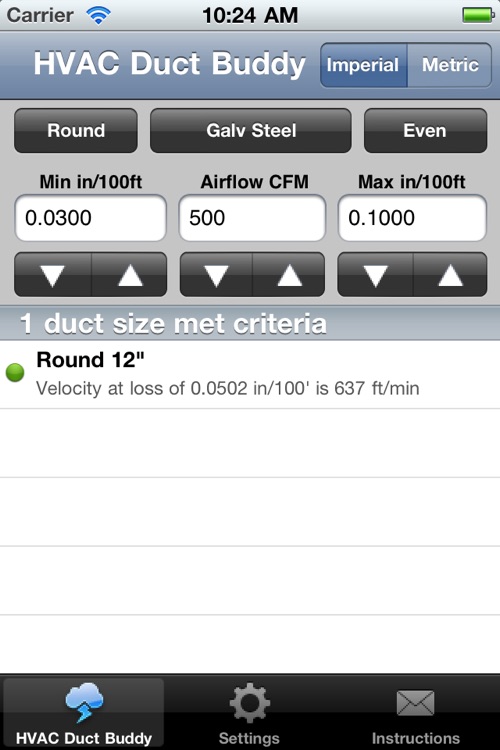

HVAC Buddy® Duct Calc screenshot-0

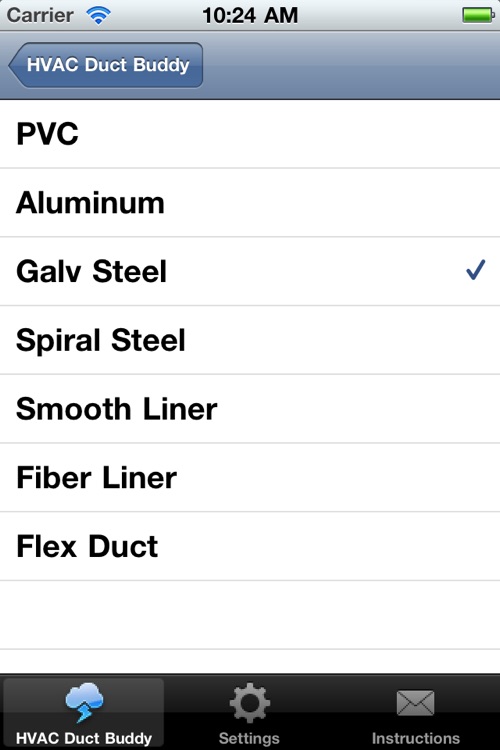

HVAC Buddy® Duct Calc screenshot-1

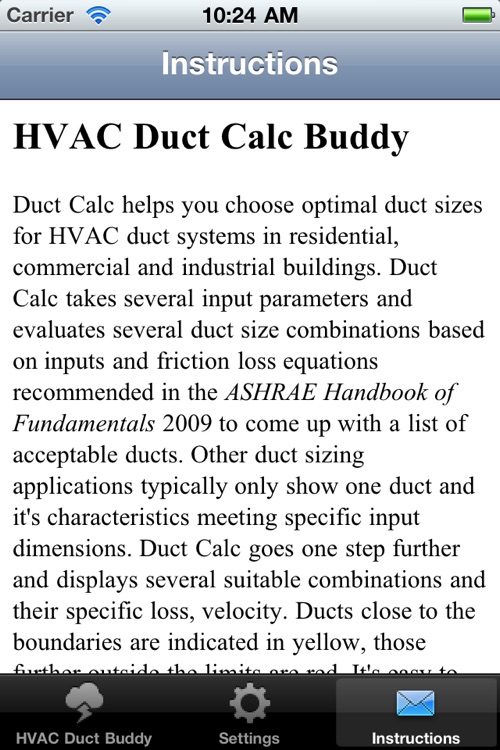

HVAC Buddy® Duct Calc screenshot-2

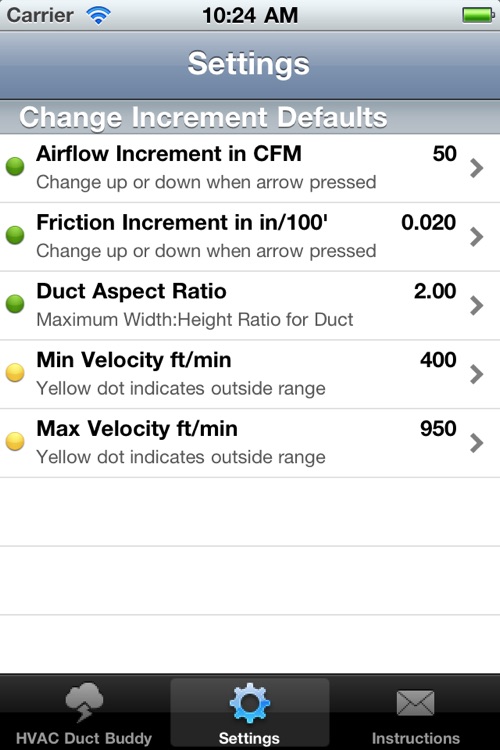

HVAC Buddy® Duct Calc screenshot-3
HVAC Buddy® Duct Calc screenshot-4

App Store Description

HVAC Duct Calc Buddy

Are all Duct sizing calculators tedious? The wheel ductulators and computerized versions are pretty amazing but you still are left testing different combinations given a set of design parameters. Duct Calc Buddy goes just a bit further and runs through iterations to generate a list of duct sizes meeting a given friction loss, velocity, and material.

Calculations are based on friction loss equations recommended in the ASHRAE Handbook of Fundamentals 2009 to come up with each list of acceptable ducts. Ducts close to the boundary conditions are indicated in yellow while those further outside the limits are red. Change limits and other parameters such as aspect ratio in settings.

Considering galvanized vs. Flex? Change the material from Flex to galvanized and HVAC Duct Calc Buddy evaluates sizes meeting your remaining criteria and displays all matching choices. With each design parameter change there is no need to and retry 8x10, 10x12, etc. to see velocities and friction for each as all valid combinations are displayed. It’s easy to adjust your selection and or ranges by pressing up or down arrows as appropriate to expand or contract the list of suitable ducts.

Use for HVAC duct systems in residential, commercial and industrial buildings.

----------
Features:
----------

• English or SI Metric Units
• Min and Max Friction Loss
• Round, rectangular, and Oval Ducts
• Multiple Duct Materials Galvanized, Flex, etc.
• Configure Even or Odd Sizing
• Min and Max Velocity constraints
• Duct sizes from 5" (12.5cm) to 100" (254cm)
• Equations from ASHRAE Handbook of Fundamentals 2009


HVAC Duct Calc Buddy is part of the HVACBuddy Suite of applications for the HVAC/R industry. We strive to make each app the best in class solution for it's purpose. You can be confident the app you buy today will continue to be updated and improved.

HVAC Buddy - The Number one selling HVAC Charging App in the Appstore. Refrigerant Charging and diagnostics using Superheat, Subcooling, Airflow. Email System Status Report to yourself or to clients. Metric or Imperial.

HVAC Duct Calc Buddy - This application.

HVAC PT Buddy - Over 90 Refrigerant combinations and their corresponding PT relationship in Metric or Imperial units.

HVAC Psychrometric Buddy - Quickly calculate thermodynamic properties of moist air at temperatures commonly used in HVAC systems. Enter multiple sets of properties, mix air streams.
