HVAC Pipe Sizer - Steam

The "HVAC Pipe Sizer - Steam" application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties

The "HVAC Pipe Sizer - Steam" application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties

HVAC Pipe Sizer - Steam

by Carmel Software Corporation
HVAC Pipe Sizer - Steam
HVAC Pipe Sizer - Steam
HVAC Pipe Sizer - Steam

What is it about?

The "HVAC Pipe Sizer - Steam" application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties.

HVAC Pipe Sizer - Steam

App Details

Version
3.0
Rating
NA
Size
18Mb
Genre
Utilities Productivity
Last updated
January 30, 2018
Release date
October 22, 2009
More info

HVAC Pipe Sizer is $6.99 but there are more add-ons

  • $9.99

    HVAC Equipment Locator

App Screenshots

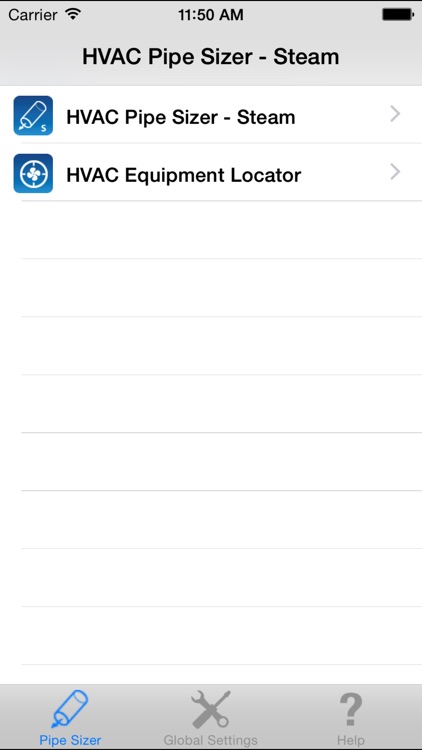

HVAC Pipe Sizer - Steam screenshot-0
HVAC Pipe Sizer - Steam screenshot-1
HVAC Pipe Sizer - Steam screenshot-2

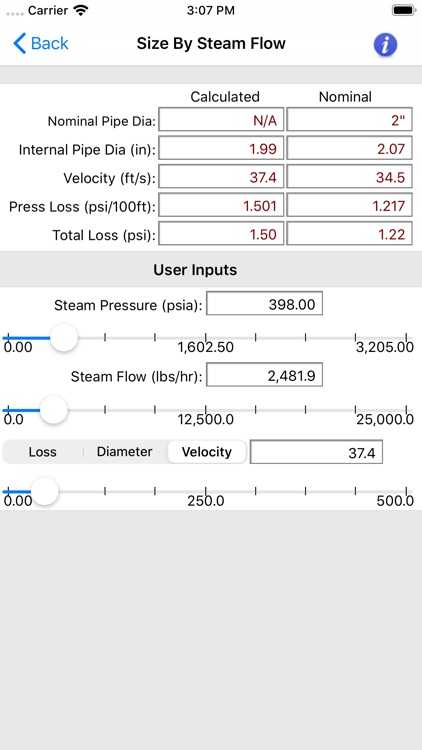

HVAC Pipe Sizer - Steam screenshot-3
HVAC Pipe Sizer - Steam screenshot-4

App Store Description

The "HVAC Pipe Sizer - Steam" application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties.

This app is now a universal app that works on both the iPhone and iPad and adjusts its screen size accordingly.

This app now includes the HVAC Equipment Locator. Click here for details: http://bit.ly/1BPl1Nr

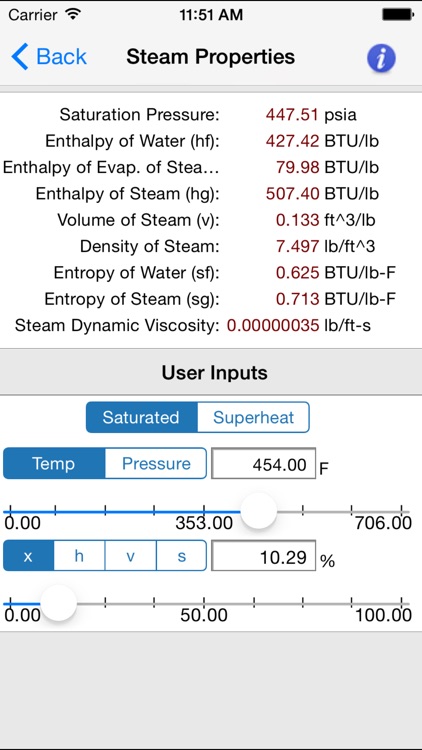

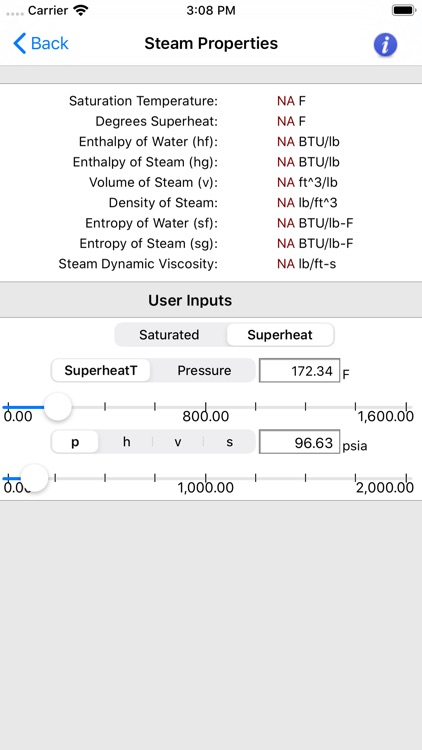

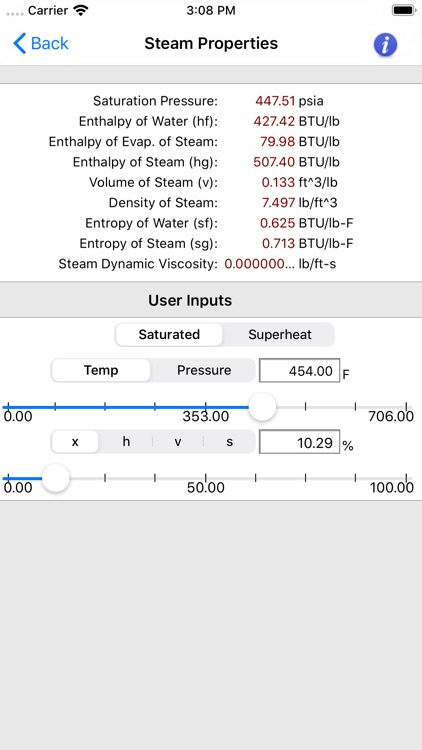

It also includes a bonus steam table calculator that allows you to specify 2 parameters for either saturated or superheated steam and display the remaining steam properties.

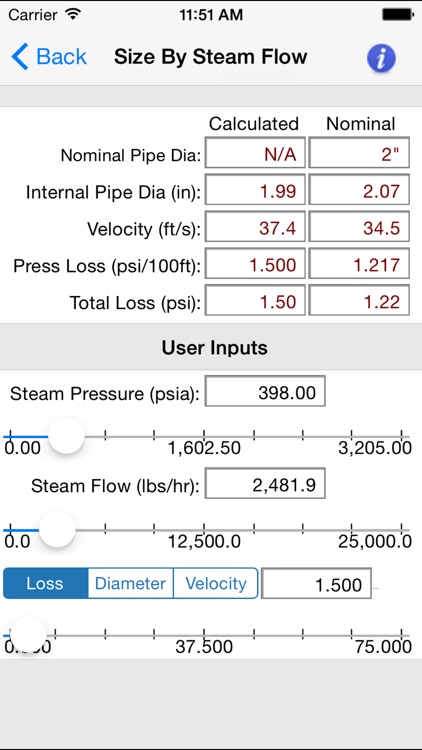

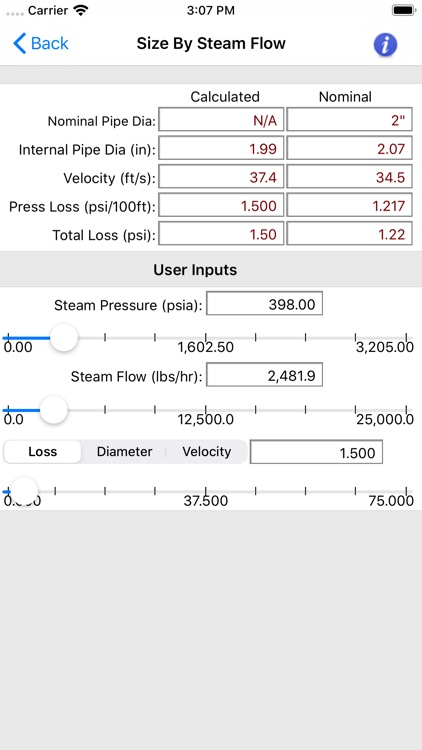

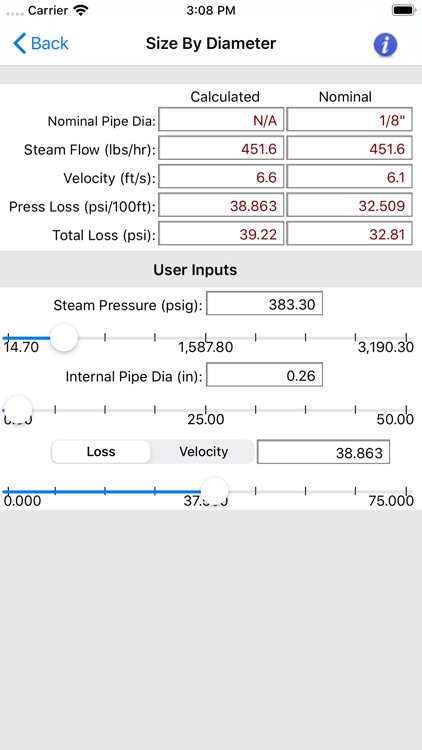

In the pipe sizing module, you can specify the total steam flow in lbs/hr (or kgs/hr), the initial steam pressure (psia or psig) and one of either pressure loss (psi/100ft), pipe internal diameter (inches) or steam velocity (ft/s) parameters. The results include both the exact and nominal pipe diameters and the calculated velocity and total pressure loss. If you are analyzing an existing steam pipe system, there is an option to input the existing pipe internal diameter, initial steam pressure and one of either pressure loss or steam velocity parameters to derive the calculated steam flow and other remaining properties.

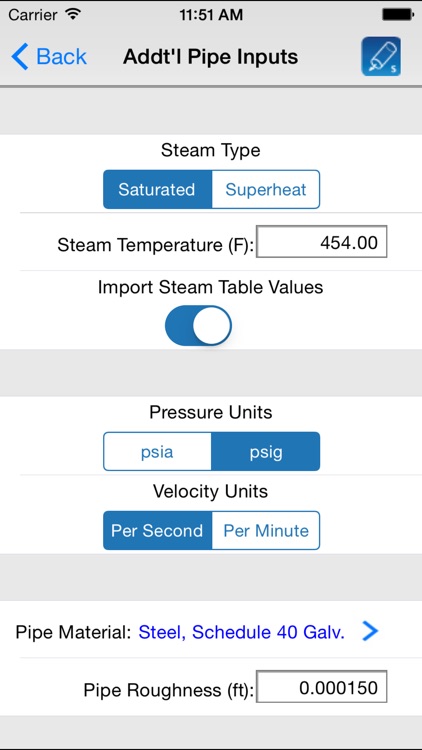

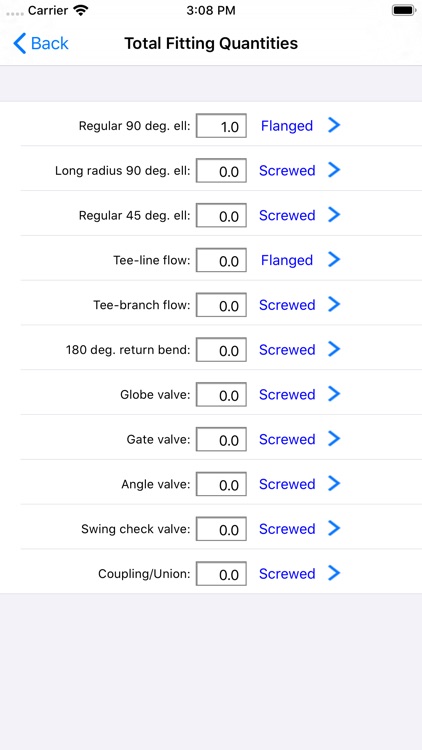

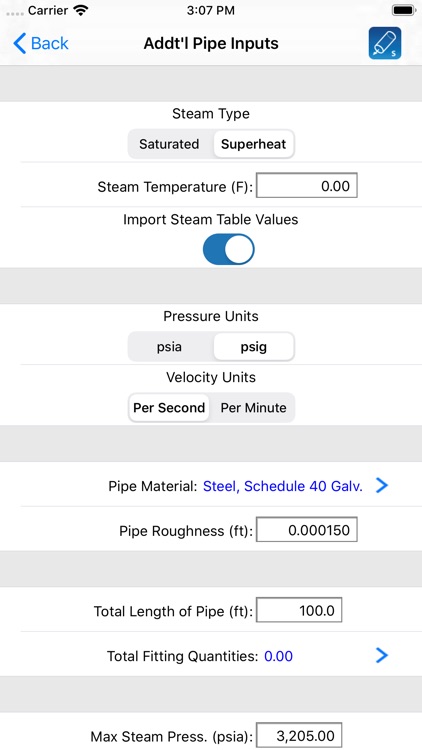

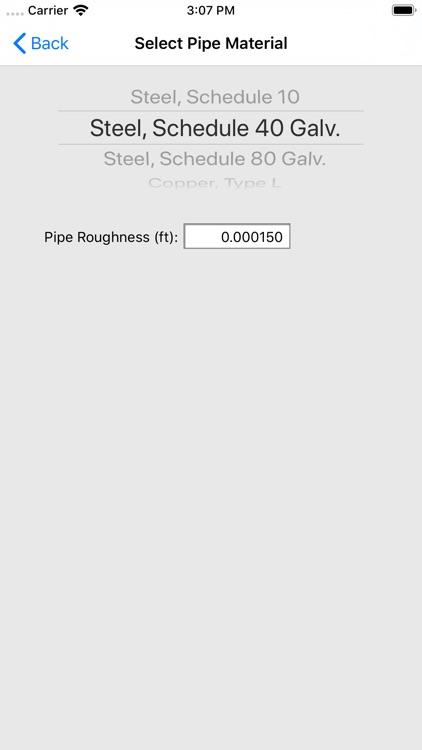

You can specify additional parameters such as whether the steam is saturated or superheated (with accompanying temperature), the pipe material type, the total length of pipe, quantities for up to 11 different types of pipe fittings, and much more. You can also choose to display values in either english or metric units.

The bonus steam table module is one-of-a-kind. It allows you to easily view results by selecting a variety of input parameters and easily altering these inputs using the slider control. This is perfect for students who often rely upon the more static printed steam tables in engineering text.

This application includes built-in pipe fitting equivalent length and nominal pipe sizing tables for a wide variety of pipe material types and diameters.

This application uses slider controls that allow you to quickly increment or decrement the input values and immediately observe the calculated results. You can also manually input exact values.

This app now includes the HVAC Equipment Locator. Click here for details: http://bit.ly/1yTq539

This application was designed by Carmel Software Corporation, a leader in HVAC design software since 1995. In fact, Autodesk (the makers of AutoCAD) acquired our load calculation software and incorporated it into their leading 3D modeling software called Revit.

We also offer the following additional applications for the iPhone/iPad:

1. HVAC Duct Sizer
2. HVAC Pipe Sizer โ€“ Gas Low Pressure
3. HVAC Pipe Sizer - Gas High Pressure
4. HVAC Pipe Sizer โ€“ Liquid
5. HVAC Pipe Sizer โ€“ Steam
6. Steam Tables
7. Psychrometric Plus
8. Psychrometric LT
9. HVAC Pipe Sizer Plus
10. HVAC Pipe Sizer Gas Plus
11. HVAC Toolkit
12. HVAC Toolkit Ultimate
13. HVAC Residential Load Calcs
14. HVAC Load Plus
15. HVAC Equipment Locator
16. ASHRAE Duct Fitting Database
17. ASHRAE 62.1 Ventilation Load Calcs
18. HVAC Psych HD
19. HVAC ResLoad-J
20. HVAC Residential Load Calcs HD
