What is it about?

This app supports DWG and DXF files. LidarCad designed for mobile devices and contains tools, that increase your productivity on touch screens. We trying to make designing fast, like on the desktop, and mobile - to work in the field.

App Details

Version
1.9
Rating
(4)
Size
58Mb
Genre
Productivity Utilities
Last updated
January 24, 2021
Release date
January 12, 2019
More info

App Screenshots

LidarCad screenshot-0
LidarCad screenshot-1
LidarCad screenshot-2
LidarCad screenshot-3
LidarCad screenshot-4
LidarCad screenshot-5

App Store Description

This app supports DWG and DXF files. LidarCad designed for mobile devices and contains tools, that increase your productivity on touch screens. We trying to make designing fast, like on the desktop, and mobile - to work in the field.

The application allows you to work with the LiDAR sensor, built-in into the iPad Pro 11 (2nd generation), iPad pro 12.9 (4th generation), iPhone 12 Pro. You can scan surroundings and analyse it into LidarCad: measure various dimensions such as width, height, length, area, volume. Also you will be able to perform simple editing with your scans.

Tree detection determines diameter and direction of tree trunk. The minimal diameter is 5 cm., maximum is about 5 m. With this function it is possible to capture pipes, poles or columns.

The scanner can classify the following objects: wall, ceiling, floor, door, window, table or seat. Classified objects are saved in separate layers into DWG file.

With this App you can estimate volume and area of various objects: construction, natural relief or cargo - it can be done with ease! Switch between feet and meters measurement units. Results saved into .dwg format.

The measurements accuracy made with LiDAR sensor depends on the accuracy of the accelerometer and gyroscope. Errors accumulate while iPad camera moves. According to our observations, it is about 1.5% of the measured line length and 2% and 3% for area and volume respectively.

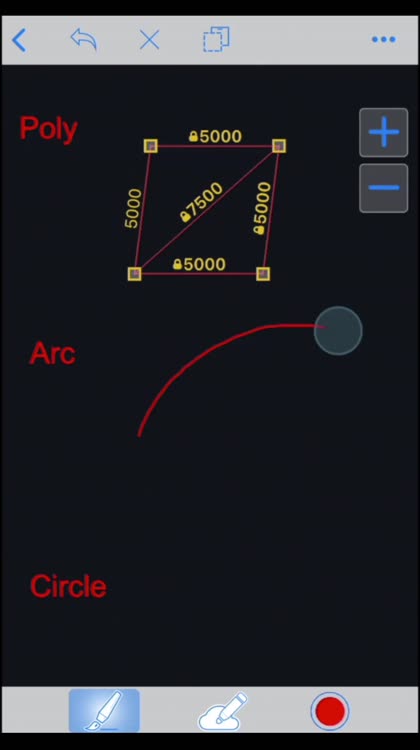

App contains 2D drawing tools, in each step you could edit new entities with precision. Auto entity analyzes the drawing path and can recognize a segment as:
* Polyline
* Arc
* Circle

Also, you can use tools, that draw certain type of entity:
* Polyline
* Circle
* Multiline
* Text, MText
* Table entities
* Hatch with patterns
* Cloud, Marker for markups

Edit your drawings with snap and grip points just like on computer. Also you can set length/angle values to entities - this tools uses a parametric engine, specially designed for touch screens.

Edit your drawing with a set of frequently used CAD tools:
* Move, Copy, Scale, Rotate
* Undo, Redo
* Offset, Mirror
* Join, Explode
* Send-To-Back, Bring-To-Front
* Entity Filter Tool

Measuring tools contains:
* Distance measurement (supports 2D and 3D)
* Area measurement
* Ortho measurement tool
* Position tool (2D and 3D modes)

You could connect your rangefinder to this App. It supports:
* Bosch GLM50C
* Bosch GLM100C
* Bosch GLM120C
* Leica DISTO D110, D1, D2
* Leica DISTO D510, D810, S910
* Leica DISTO X3, D8
* Condtrol Vector


Also you could use layers, layouts, views, color management in this App.
Plot drawing to pdf/jpeg images, or directly to AirPrint device.

You can work with drawings from any source: iCloud, Dropbox, Google Drive, Box, email, or use internal storage. Share drawings by email, Files or other App.
