Logic Gates (Logic Circuit Helper)

Logic Gates is a efficient and friendly tool for beginners even experts to design their own logic circuit.

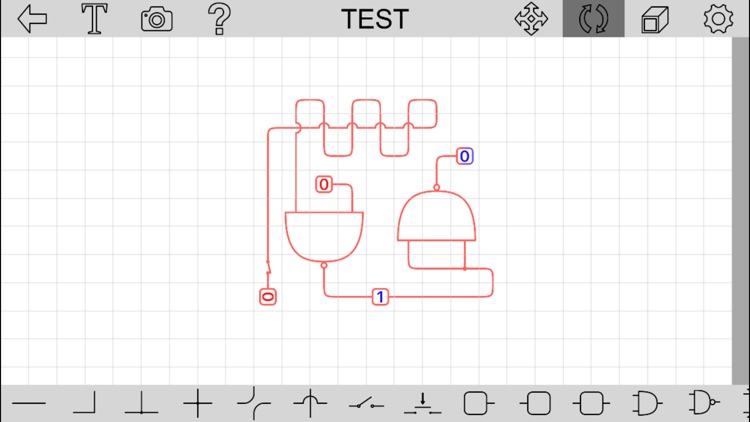

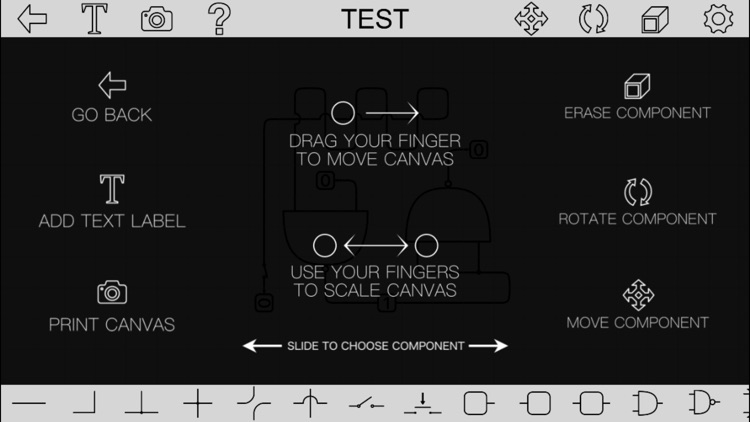

Electronic components can be easily added, moved, rotted as well as erased, with text labels to explain idea. Multi-touch gestures can be used to zoom and move the canvas.

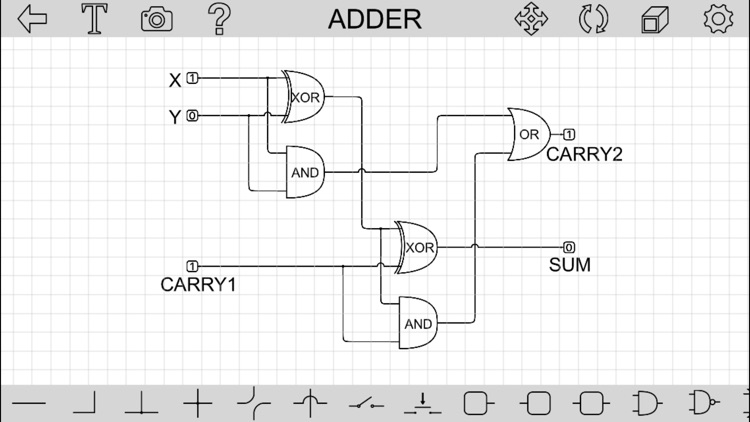

It's significant that Logic Gates can analyze the logic circuit automatically(the outputs will change immediately as soon as the inputs change).

We also provide an exciting function to print the canvas(including electronic components and labels) and the picture will quickly save to the system album.

Click the logo button to find our Email address and contact with us if you have any question, request or advice.
