MechGen FG

Design a four-bar linkage that connects the rotation of an input crank to the coordinated rotation of an output crank

Design a four-bar linkage that connects the rotation of an input crank to the coordinated rotation of an output crank

MechGen FG

by John McCarthy
MechGen FG
MechGen FG
MechGen FG

What is it about?

Design a four-bar linkage that connects the rotation of an input crank to the coordinated rotation of an output crank. Locate the two cranks and define their input and output angles and let MechGen FG design four-bar linkages for you. The design data and an animation of your linkage are easily distributed by email. See the "MechGen FG demo" video on YouTube.

MechGen FG

App Details

Version
3.3
Rating
(5)
Size
11Mb
Genre
Productivity Education
Last updated
April 26, 2017
Release date
September 15, 2014
More info

App Screenshots

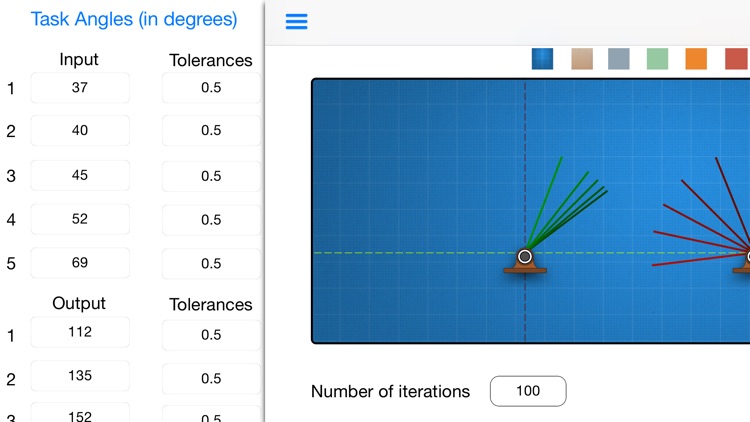

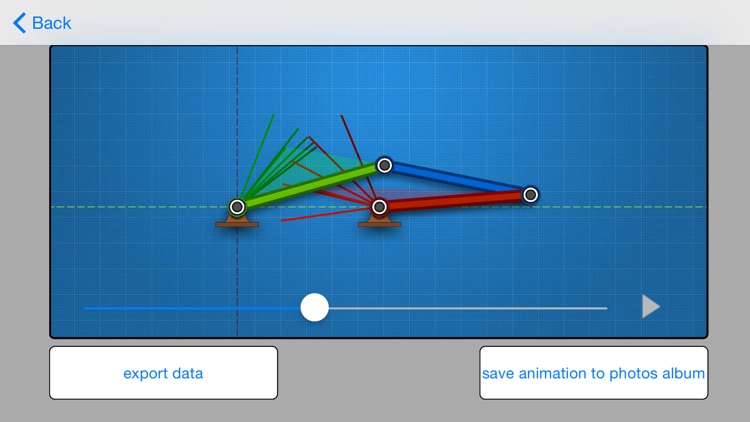

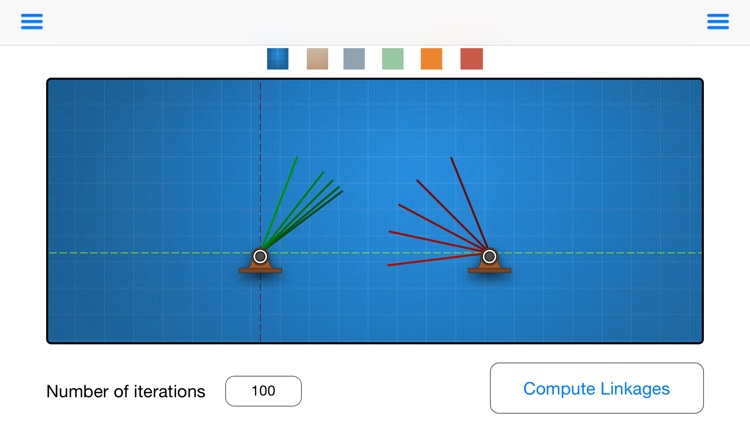

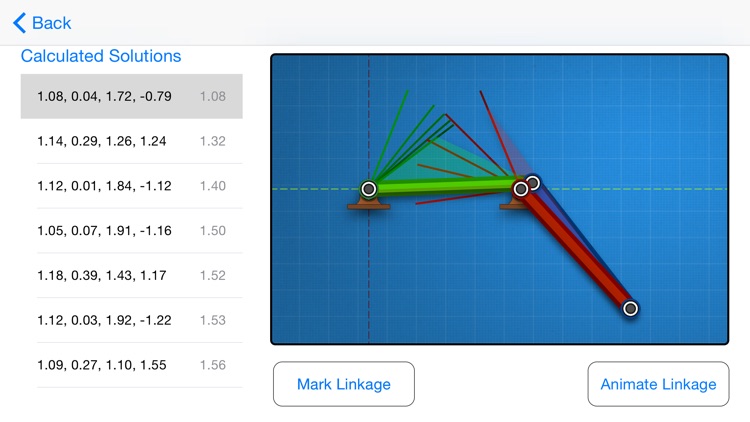

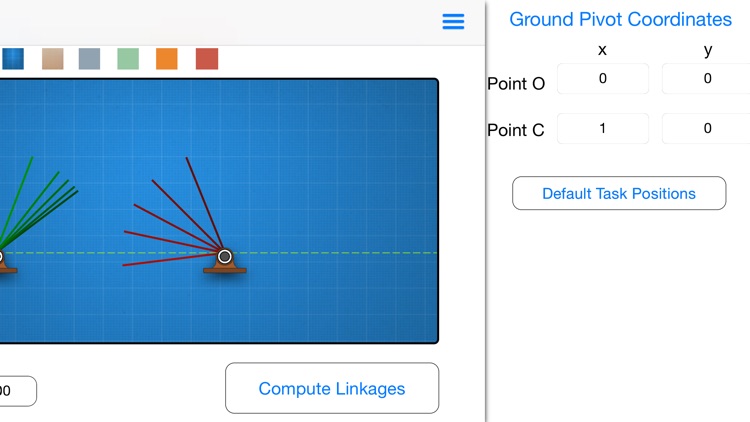

MechGen FG screenshot-0
MechGen FG screenshot-1
MechGen FG screenshot-2
MechGen FG screenshot-3
MechGen FG screenshot-4

App Store Description

Design a four-bar linkage that connects the rotation of an input crank to the coordinated rotation of an output crank. Locate the two cranks and define their input and output angles and let MechGen FG design four-bar linkages for you. The design data and an animation of your linkage are easily distributed by email. See the "MechGen FG demo" video on YouTube.
