NU2 iLDA

The iLDA controller is installed by any free egress emergency exit perimeter door or protected areas to monitor, manage and alarm the door, maintain life safety code requirements while maintaining the building’s security. The iLDA is suited for use in schools, hospitals, airports, daycare centers, courthouses, office complexes and any building that requires to secure, monitor and alarm non-lockable security doors.

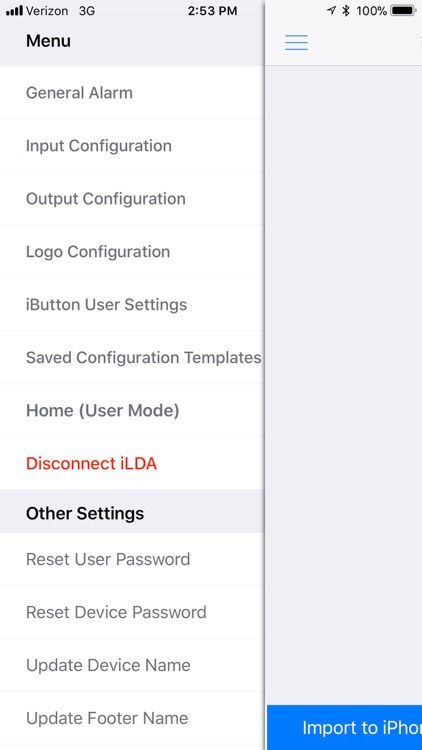

Via Bluetooth and using the iLDA app, installers and administrators can change configuration, timers, functionality, display etc. as well as add / delete user’s digital key fob without the need to remove the unit off the wall. Remote monitoring and management of the iLDA is done from any stand-alone guard station or via interface to the building’s access control system.
iLDA operates from 12v-24v AC or DC, has 5 programmable inputs and 4 programmable form C relay outputs. Outputs are supervised via built in selector jumpers for simple dry form C, for 1K or 1K/2K EOL supervision. No need for external EOL resistor kits.
Selectable inputs are: Door Status Monitor (DSM/DC), shunt, bypass, alarm reset or shunt/reset. Additionally, iLDA controller monitors door’s electrified lock power (V-SENSE) and shunts the unit when door unlocks by the building’s access control.
The 4 programmable outputs allow monitoring of: alarm condition, bypass status, door ‘held’ status and door contact ‘mimic’ condition. There is no need to drill for multiple DSM contacts. For certain specialized applications, the built in Fire Alarm (F/A) input automatically removes power from the ‘lock’ relay as well.
iLDA has dedicated outputs for remote Red/Green LEDs as well as 2.4” graphical display showing multiple door conditions such as: Door is secured, door in alarm, door is held open, door in bypass as well as multiple timers in count up/count down mode.
Via use of any mobile device, the display can be further customized to show device’s location, company name or logo, installing company’s name, support phone numbers etc. there are total of 5 programmable lines.
iLDA is available with iButton digital key fob or alternatively with 26 bit HID micro reader. iLDA’s database stores 100 digital ‘keys’ and their user’s name. Export feature allows for quick cloning of multiple iLDAs without the need for data reentry. Users and digital keys can be added/removed via the mobile device. No need to duplicate and distribute traditional mechanical keys.
iLDA controller has a built in RS-485 port for either ‘chaining’ iLDAs or for communication with OEM products.
iLDA 9900 uses an open architecture platform allowing for easy third-party integration and thus is highly suitable for the OEM marketplace. The iLDA 9900 is part of a family of integrated products that include the Intelligent Mantrap Controller (iMTC) and the Smart Power Supply (sPS-5000).
Easy to install using distributed architecture, the iMTC is scalable from 2 to 8 protected doors. sPS-5000 is a networked or RS-485 managed power supply with built in graphic display, providing 4 managed output voltages with digital over-current breakers.
For more information on other highly sophisticated products please visit our website - nu2systems.com.
