Perfect Structure

Design and optimize reinforced concrete columns and beams easily with this App. . Language support for English, German, French, Italian, Spanish, Portuguese, Russian and Turkish. Supported design codes include ACI 318, Eurocode 2, BS 8110, SP 63.13330 and TS 500. Execute your design in seconds and receive the results in PDF, CSV and DXF formats. Share your calculation report with your colleagues over the internet. Fast and flexible.

Key Features:
- Modern and User Friendly Design
- 5 Design Codes: ACI 318, Eurocode 2, BS 8110, SP 13330 and TS 500
- 8 Languages: English, German, French, Italian, Spanish, Portuguese, Russian and Turkish
- 2 Units Systems: Metric (SI) & Imperial
- 3 Different File Formats for Output: PDF, CSV, DXF
- Reinforced Concrete Column Section Types: Rectangular, Circular, Hallow Rectangular and Hallow Circular

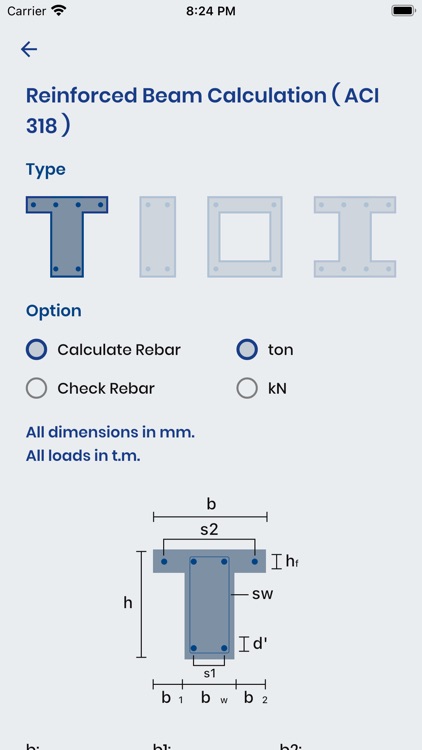

- Reinforced Concrete Beam Section Types: Rectangular, T-beam, I-beam, Box-beam (Hollow Core)
- Design of both singly and doubly reinforced beams
- Draw interaction diagrams for columns
- Checks given reinforcement against given loads and section parameters OR calculates optimal reinforcement amount against given loads
- Calculates and checks both flexural reinforcement and shear reinforcement

We hope you will enjoy using it and highly appreciate your valuable feedback.

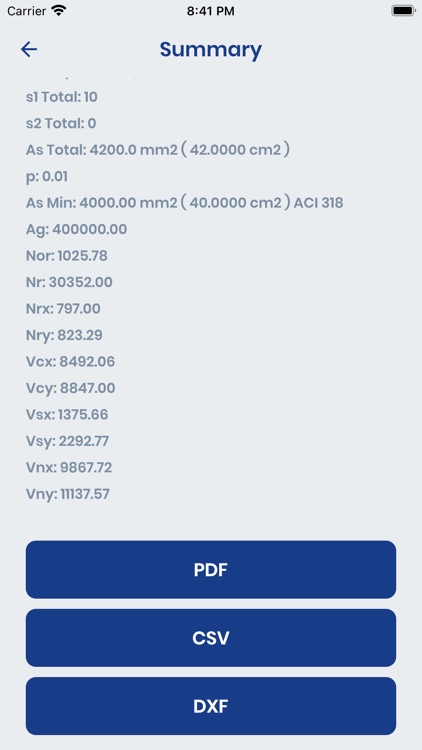

Perfect Structure is the ultimate tool for engineers to design and check the load bearing capacity of reinforced concrete members. Test your structure on the go! With its intuitive and contemporary interface, Perfect Structure brings the best of UX to your mobile phones and tablets. Execute your design and receive the results in PDF, CSV and DXF formats. Share your calculation report with your colleagues over the internet. Fast and flexible, Perfect Structure is the everyday tool for the perfect engineer who wants to have the mobility of a smartphone or a tablet without a compromise. Just launch your Perfect Structure app, use the buttons on the main screen for a column or a beam, select the section type, enter the dimension and load data, assign steel and concrete grades and leave the rest to your app by hitting the “Calculate” button. The results will be ready in moments with a clear and concise results screen. Then, select the PDF, CSV and DXF output options if you’d like to send the results to others, save the report in your project folder or inspect your column or beam layout in a CAD software. Use the settings page for a variety of options from user feedback to design code selection. See how your design complies with the design codes by getting the design check results according to the relevant code. Try and test different reinforcement bar arrangements and member dimensions to get to the optimal configuration. Phenomenally easy to use and flexible, Perfect Structure will get you to the result in a matter of seconds with a top-notch user experience.

Tags:
Reinforced Concrete Column Design, Reinforced Concrete Beam design, Reinforced Concrete, Structural Design, Structural Optimization, design of reinforced concrete members, PDF output, shear design, moment design, high strength concrete, high strength steel, reinforcement steel, column interaction diagram.
