SMD stencils are required in the process of printing solder paste onto circuit boards in the electronics industry. The thickness and aperture of the SMD stencils define the amount of solder paste.

To ensure that the solder paste adheres to the circuit board, close attention must be paid to the area ratio and aspect ratio of the stencil. photocadCALC software makes it quick and easy to calculate the maximum possible thickness for laser-cut SMD stencils with a variety of stencil apertures.

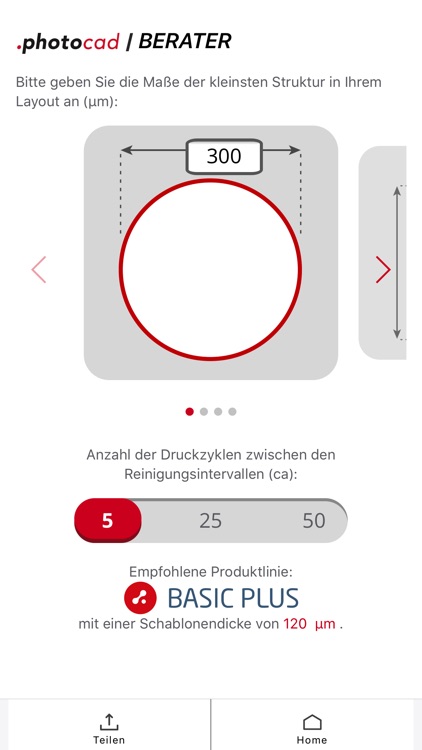

However, the photocad app has a great deal more to offer: the product advisor allows you to specify the most suitable SMD stencils for your planned deployment. As a result, you will receive a link to our online shop that is tailored to reflect your specific needs, and which can be conveniently shared by e-mail, WhatsApp or Airdrop.

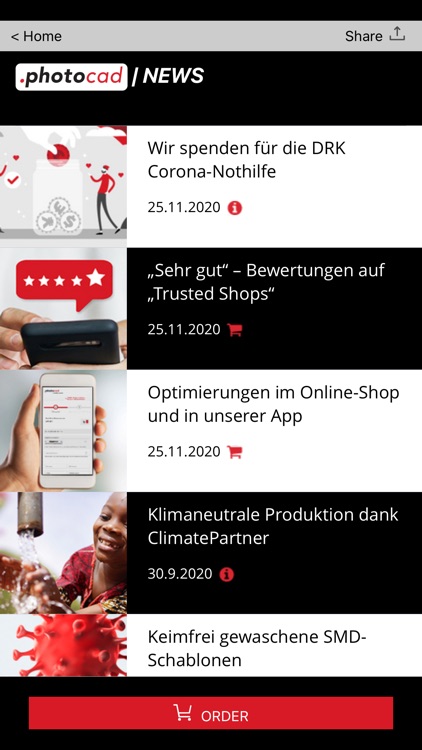

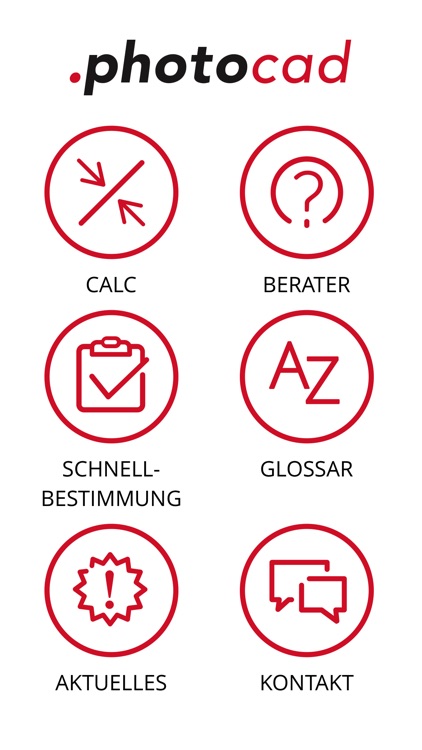

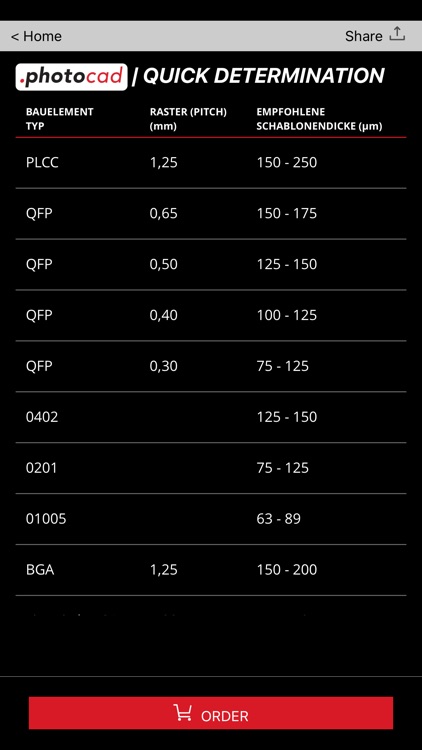

A useful glossary, a tool to quickly define stencil thickness, and constantly updated news and information about the company and the online shop complete the range of functionalities offered by the photocad app.
