Pipe Fittings

A handy mobile reference tool for Piping Engineers, Mechanical Engineers, Designers, Draftsmen, Pipe Fitters, Students and more for the Oil & Gas Industry, Petrochemical & Manufacturing Plants as well as Design Engineering Consulting Companies.

This application covers the B16.9 Factory-Made Wrought Buttwelding Fittings & B16.11 Forged Fittings, Socket Welding and Threaded - another Piping DataBase series.

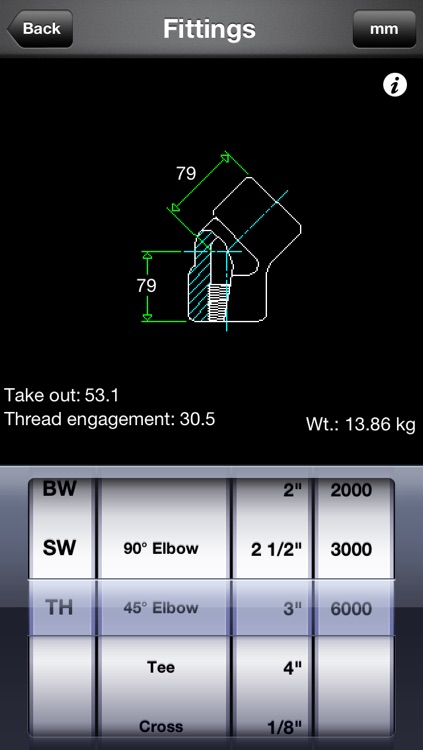

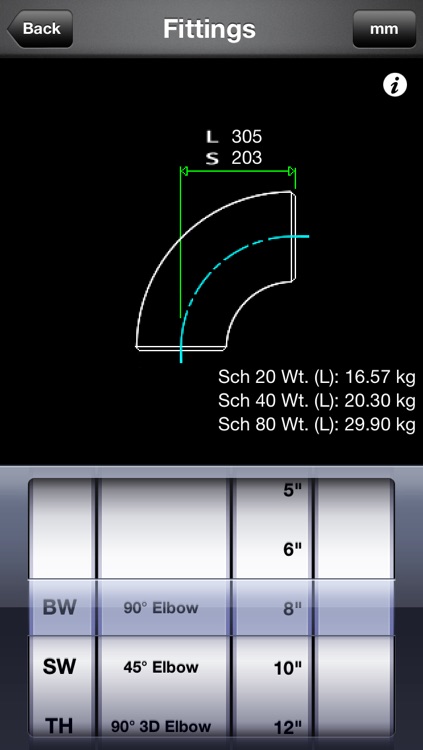

User interface is presented in an easy one page set up, interchangeable to both US Customary Units and SI Units by scrolling the pickers and touching the button switch.

FITTINGS:
BW: 90/45 deg. Elbows, Tee & Cross (Straight & Reducing), Cap, Concentric & Eccentric Reducers, Lap Joint Stub End (all sizes up to 48”)
SW: 90/45 deg. Elbows, Tee, Cross, Coupling, Cap ( Class 3000,6000 & 9000 )
TH : 90/45 deg. Elbows, Tee, Cross, Coupling, Cap ( Class 2000,3000 & 6000 )


Note:
More piping components at Piping DataBase – Xtreme: includes Pipe Schedules, Fittings, Valves, Line Blanks, Branch Connections and Flanges. All in one app!
