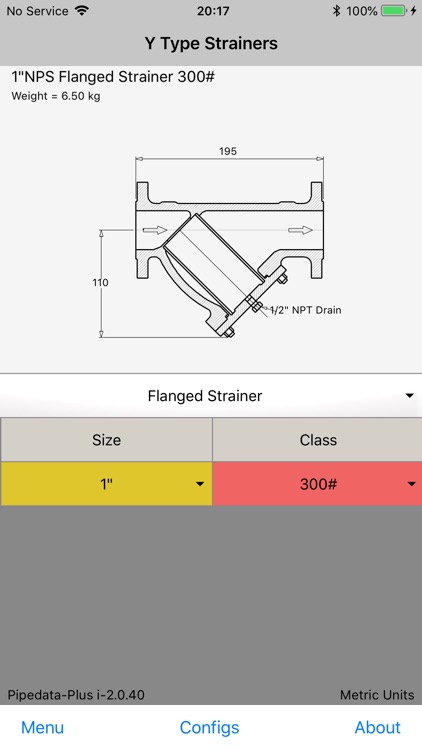

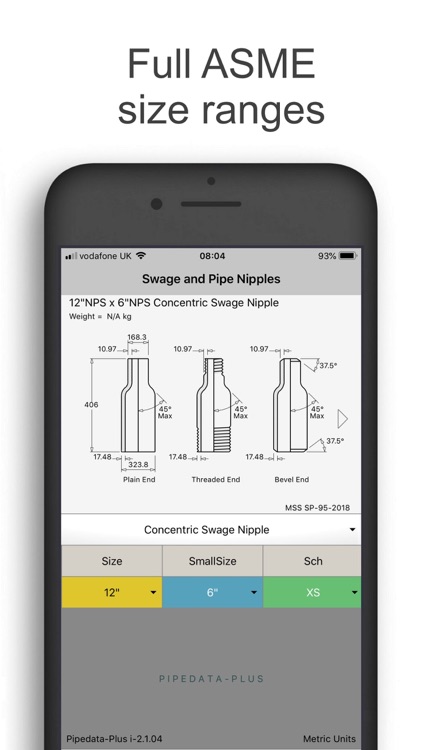

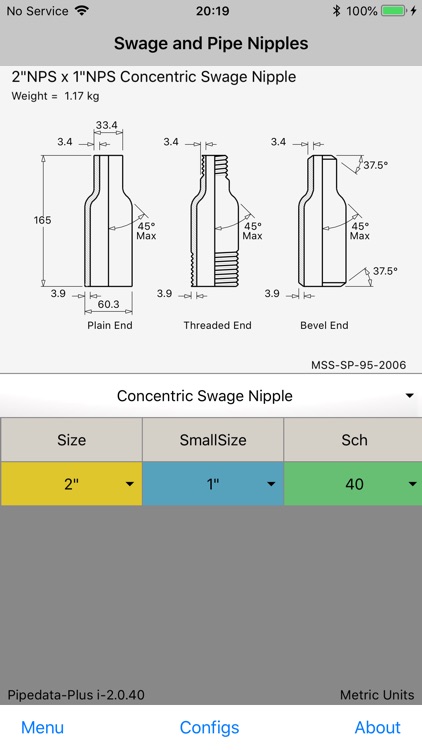

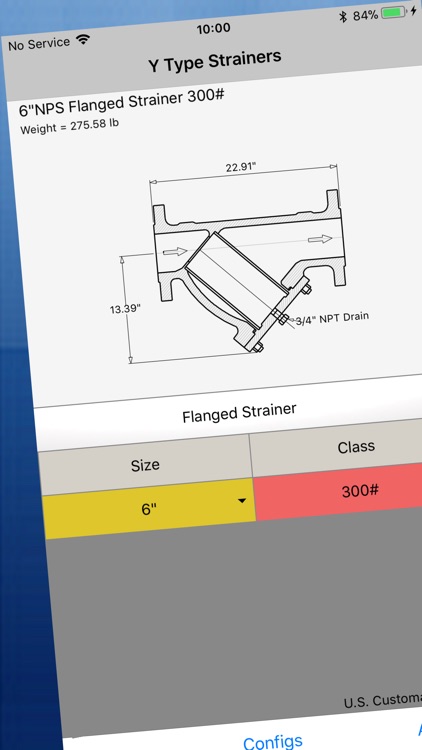

Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc

Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc

Pipedata-Plus

by John Bennett
Pipedata-Plus
Pipedata-Plus
Pipedata-Plus

What is it about?

Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc. Pipedata-Plus also includes design aids, safe spans, pipe flexibility, spacing and more. The interface is enhanced with colour coded components and parameters. This release also has auto-landscape screen orientation.

Pipedata-Plus

App Details

Version
2.0.56
Rating
NA
Size
34Mb
Genre
Productivity Business
Last updated
September 17, 2018
Release date
October 18, 2015
More info

App Screenshots

Pipedata-Plus screenshot-0
Pipedata-Plus screenshot-1
Pipedata-Plus screenshot-2
Pipedata-Plus screenshot-3
Pipedata-Plus screenshot-4
Pipedata-Plus screenshot-5
Pipedata-Plus screenshot-6
Pipedata-Plus screenshot-7
Pipedata-Plus screenshot-8
Pipedata-Plus screenshot-9

App Store Description

Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc. Pipedata-Plus also includes design aids, safe spans, pipe flexibility, spacing and more. The interface is enhanced with colour coded components and parameters. This release also has auto-landscape screen orientation.

Based on the latest ASME piping dimensional specifications it shows Metric, U.S. Customary Units and Inch Fractions, NPS and DN pipe sizes and includes audited valve weights, flange and pipe weights and all piping component weights.

DATA SUMMARY
Pipedata-Plus Provides
Piping Dimensions and Weights
Flange Dimensions and Weights
Valve Dimensions and Weights

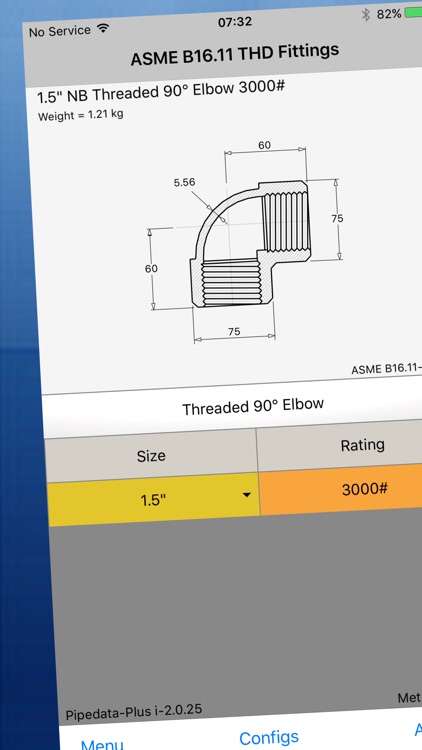

Piping Fittings Dimensions and Weights
for the following components:

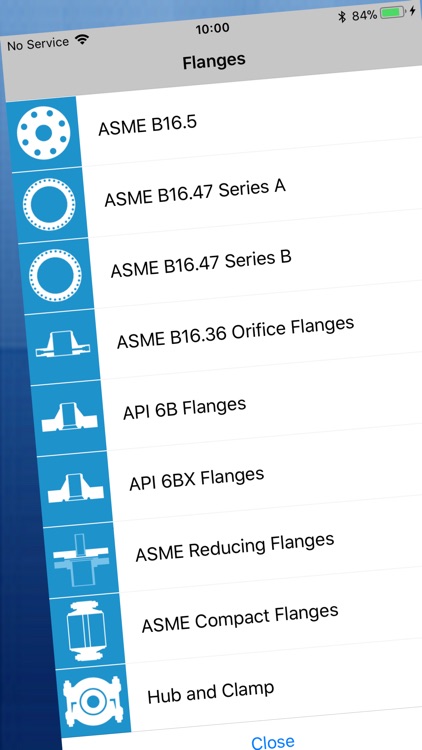

FLANGES

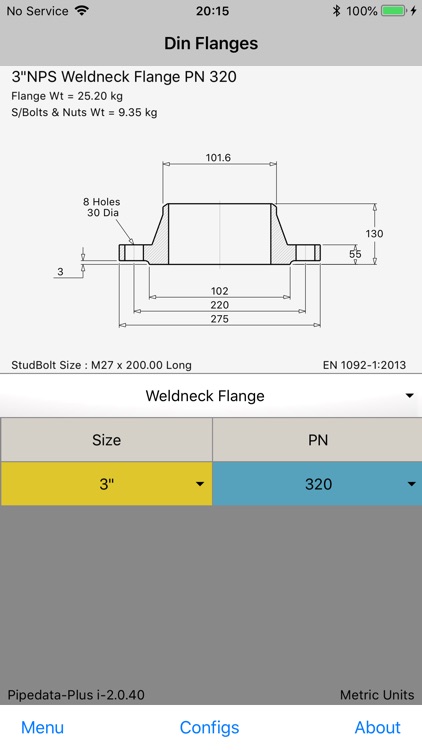

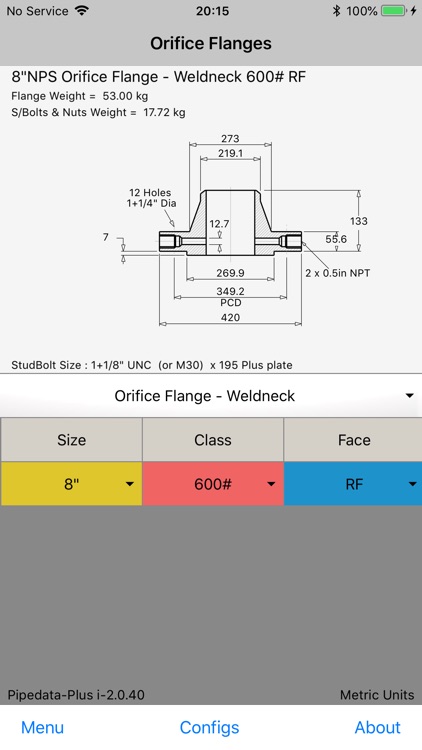

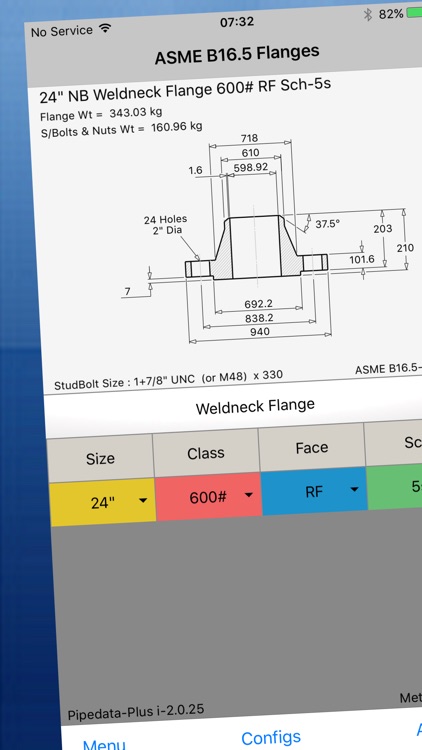

ASME B16.5 Flanges
WeldNeck Flange
Slip On Flange
Blind Flange
Threaded Flange
SocketWelded FlangeLapped Flange
Long Welding Neck Flange

ASME B16.47 Series A Flanges
WeldNeck Flange
Blind Flange

ASME B16.47 Series B Flanges
WeldNeck Flange
Blind Flange

Orifice Flanges ASME B16.36
WeldNeck
Slip On
Threaded

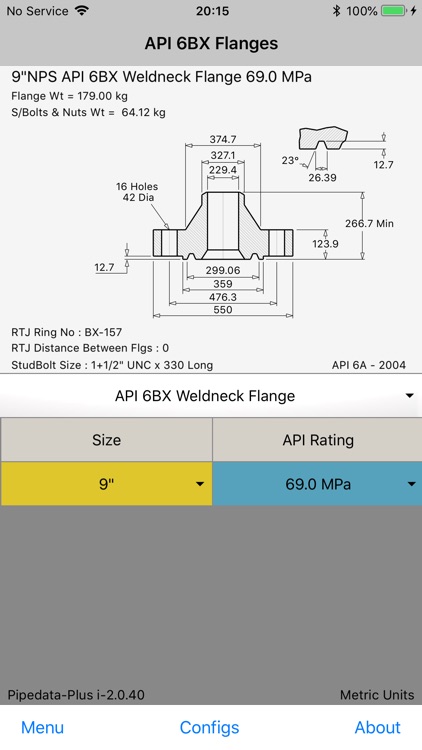

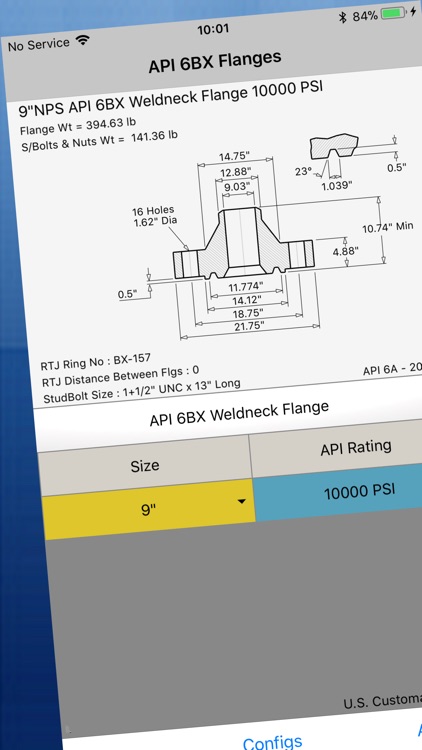

API-6A Flanges
API Type 6B
Weldneck
Threaded Flange
Blind

API Type 6BX
WeldNeck
Blind and Test Flange

Reducing Flanges AMSE B16.5
Threaded
Slip-On

ASME Compact Flanges
Standard
Swivel
Blind

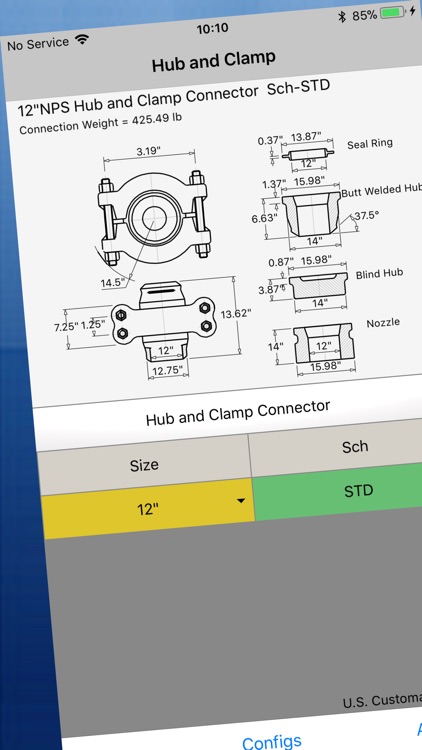

Hub and Clamp
Hub-Clamp Pipe Connector

Din Flanges EN1092-1:2013
Blind Flange
Threaded Flange
Flat Flange
Weldneck Flange
Lapped Flange

BS 10 Flanges
TABLES A,D,E,F,H,J,K.R & S

PIPE FITTINGS

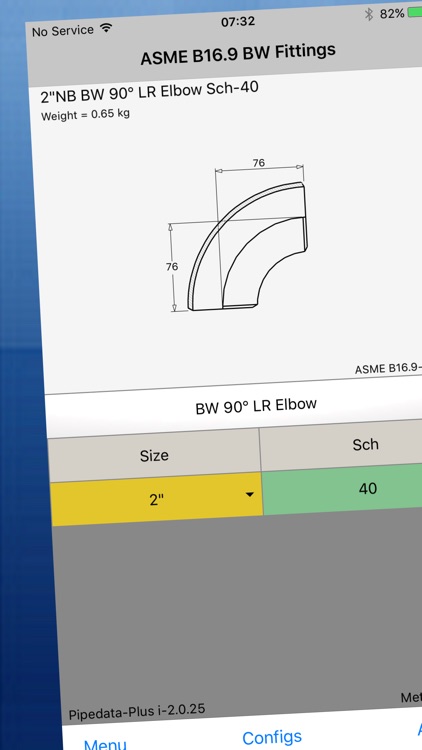

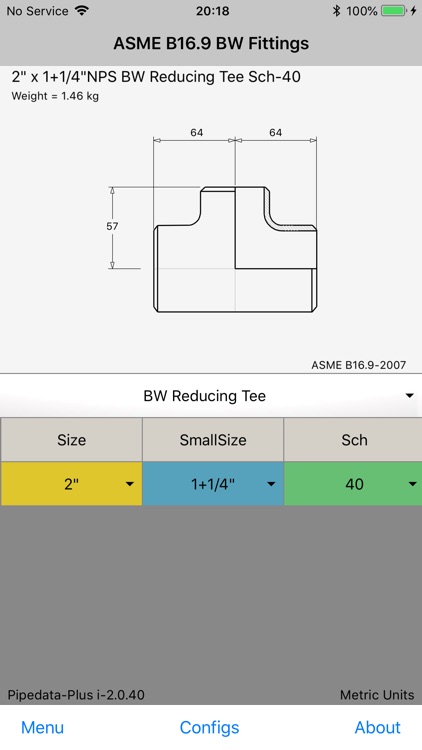

ASME B16.9 Butt Welded Pipe Fittings
ASME B16.11 Threaded Pipe Fittings
ASME B16.11 Socket Welded Pipe Fittings

VALVES
ASME B16.10

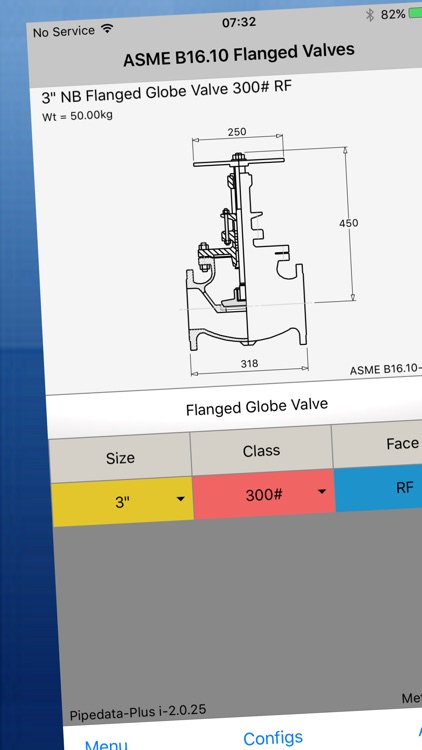

Flanged Valves
Gate Valve
Globe Valve
Ball Valve
Control Valve (for layout)
Swing Check
Wafer Check
Wafer type Butterfly
Lug type Butterfly

Buttwelded Valves
Gate
Globe
Ball Valve
Check

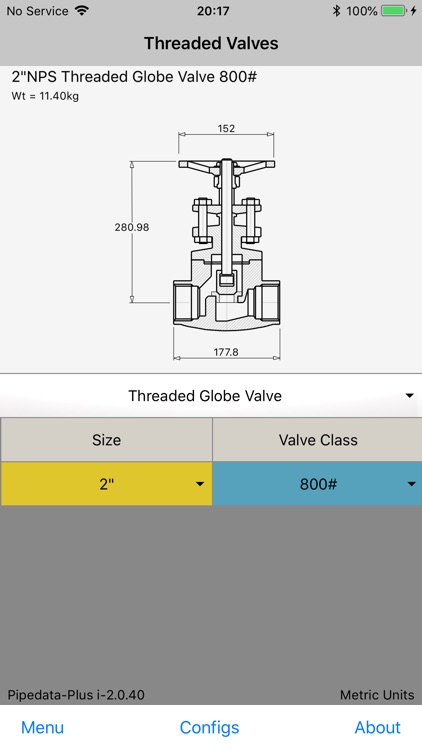

Threaded Valves
Gate
Globe
Horizontal Check
Vertical Check

Socketwelded Valves
Gate
Globe
Horizontal Check
Vertical Check

BLINDS AND SPACERS

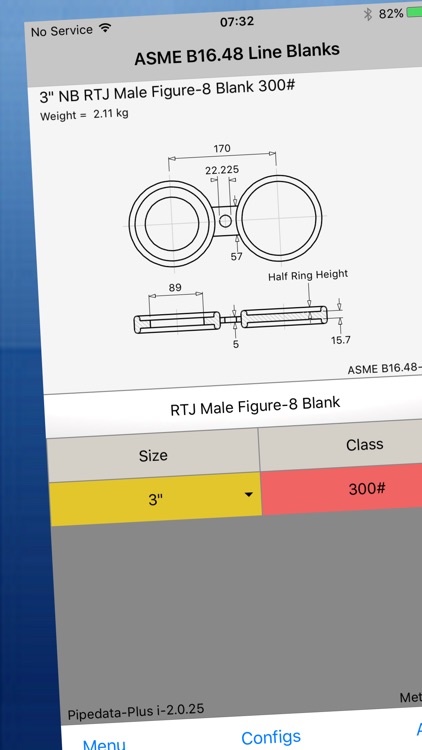

ASME B16.48
Spectacle Blind
Line Spade and Spacer
RTJ Male Type Reversible Spade
RTJ Male Type Line Spade

WELDED BRANCHES
Olets
ButtWelded
Threaded
SocketWelded
Weldoflange
Elbowflange

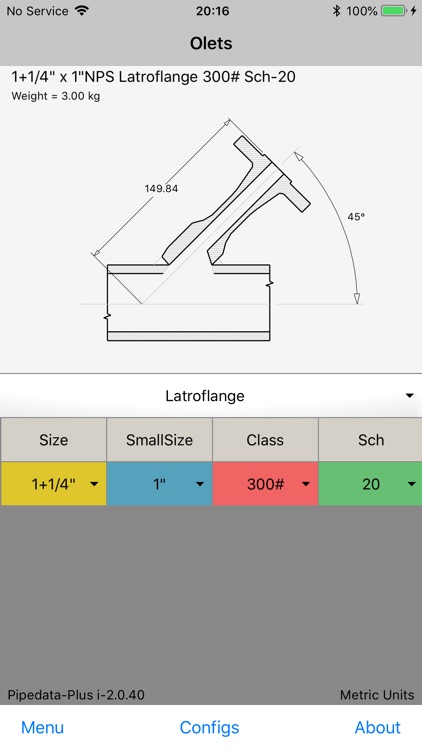

Latroflange
Nipoflange

Pipets
ButtWelded
Threaded
SocketWelded
Flanged

GASKETS
None Metallic Flat Ring for ASME B16.5 Flanges
None Metallic Flat Ring for ASME B16.47 Series A Flanges
None Metallic Flat Ring for ASME B16.47 Series B Flanges
Spiral wound for ASME B16.5 Flanges
Spiral wound for ASME B16.47 Series A Flanges
Spiral wound for ASME B16.47 Series B Flanges
RTJ soft iron ring type R - ASME B16.21
RTJ soft iron ring type RX - ASME B16.21
RTJ soft iron ring type BX - ASME B16.21

PIPE
ASME B16.10M/19M
Pipe By Schedule
Pipe By Wall Thickness

NUTS
ISO Nuts
UNC Nuts

DESIGN AIDS
ASME Composite Dimensions

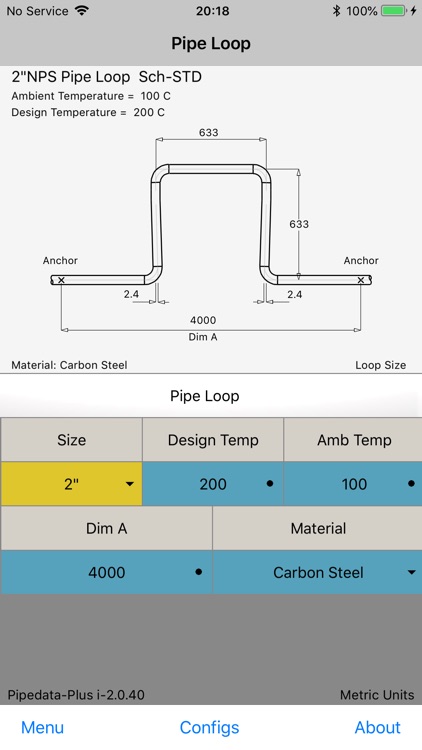

Pipe Flexibility
Pipe Leg
Pipe Loop
Safe spans

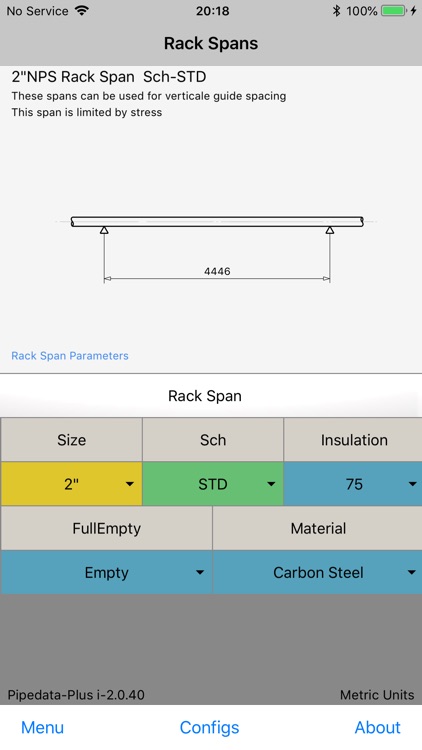

Safe rack spans

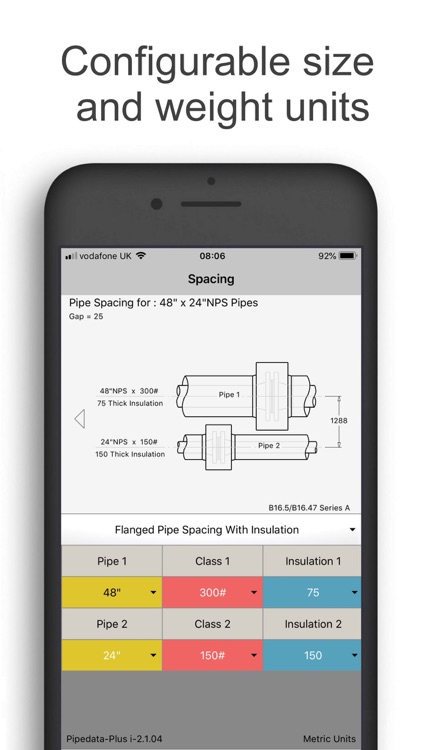

Safe Pipe Spacing
Safe Pipe Spacing with Insulation
Safe Flanged Pipe Spacing
Safe Flanged Pipe Spacing With Insulation
