PIPEFIT

ALL MAJOR STANADARD DIMENSIONS FOR VALVES ,PIPE & FITTINGS ON FINGER TIPS.

PIPEFIT is useful for Managers, Engineers, Designers, Site supervisors in various industries ranging from Oil & Gas, Petrochemical, mining, renewable energy etc
PIPEFIT is developed keeping following professionals in mind with a goal of providing easy access to Pipe, Valves and Fittings dimensions in their mobile platforms. This application is specifically targeted for PIPING PROFESSIONALS like draftsman, designers and Engineers who need to prepare Engineering sketches, drawings. It is useful for senior engineers and Managers for review /checking purpose.
Procurement/ Quality Control / Inspection /Store etc are other disciplines which will benefit from this application.
This product is also useful for other disciplines like process, instrumentation etc who will use valve , pipe and fitting dimensions pressure drop calculations or during interface management respectively.

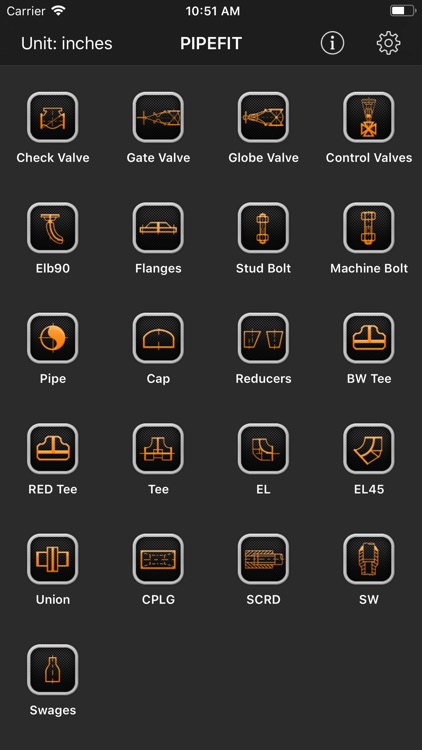

This APPLICATION is designed user in mind. From menu screen you can launch application and start using it straightaway. Users can selections dimensions in mm or inches at start.
You can select variables like Nominal size, Rating, Schedule etc from side scroll menu or drop down menu.
FOR MM SELECTION
Nominal Sizes are in Inches
Bolt Nos & Dia are in Inches and are shown near Machine Bolt head
All other Dimensions in Millimeters
Pipe weight Empty W in Kg/m
Pipe thickness = t in mm
Flange thickness is inclusive of Raised Face thickness
FOR INCH SELECTION
Nominal Sizes are in Inches
Bolt Nos & Dia are in Inches and are shown near Machine Bolt head
All other Dimensions in Millimeters
Pipe weight Empty W in lb/ft
Pipe thickness = t inches
Flange thickness is inclusive of Raised Face thickness.

STANDARDS USED ARE AS PER ANSI/ASME
FOR PIPES : B36.10 & B36.19
FOR FLANGES- B16.5
FOR VALVES FLANGED- B 16.10
FOR SW & SCRD – B16.11
OTHERS- MANF STD
FOR BOLTINING- B16.5
