Plot Digitizer

Plot Digitizer is an app to extract numerical data from plot images

Plot Digitizer is an app to extract numerical data from plot images

Plot Digitizer

by Daniel Medeiros
Plot Digitizer
Plot Digitizer
Plot Digitizer

What is it about?

Plot Digitizer is an app to extract numerical data from plot images.

Plot Digitizer

App Details

Version
1.4.1
Rating
(1)
Size
43Mb
Genre
Productivity Education
Last updated
June 26, 2022
Release date
January 31, 2020
More info

App Screenshots

Plot Digitizer screenshot-0
Plot Digitizer screenshot-1
Plot Digitizer screenshot-2
Plot Digitizer screenshot-3
Plot Digitizer screenshot-4
Plot Digitizer screenshot-5
Plot Digitizer screenshot-6
Plot Digitizer screenshot-7
Plot Digitizer screenshot-8
Plot Digitizer screenshot-9

App Store Description

Plot Digitizer is an app to extract numerical data from plot images.

It is often necessary to obtain original (x, y) data from graphs, e.g. from scanned scientific plots, when data values are not available. Plot Digitizer allows you to easily get the numbers in such cases.

Digitizing is a nine-step process:

1. Open a picture or take a photo of the plot;

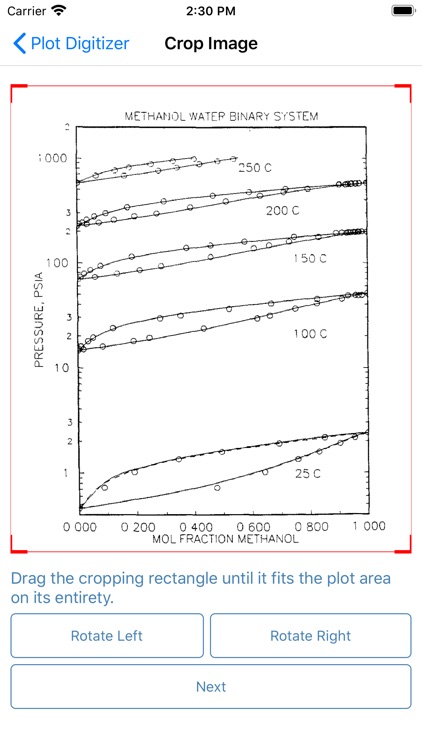

2. Crop the picture to isolate the plot;
3. Align the plot, if required;
4. Do some fine-tuning cropping, if required;

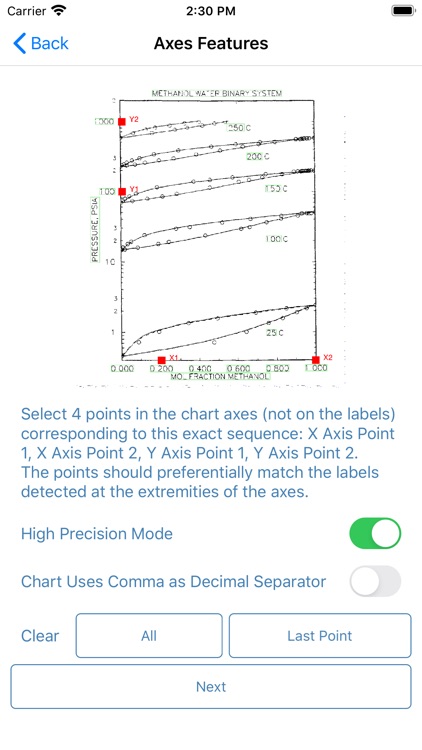

5. Set the X and Y axes anchor points using your finger or an Apple Pencil;
6. Adjust the Axes Titles and anchor points;
7. Digitize the data series using your finger or an Apple Pencil;
8. Label the data series;
9. View, export the digitized data or view fitted equations.

At the end of the process, you can copy the data to the clipboard, share it with another app, view a digital plot or fitted equations from the digitized data.

Disclaimer:

The plot image shown in the screnshots is taken from: A. Danesh, D.-H. Xu, D.H. Tehrani, A.C. Todd. Improving predictions of equation of state by modifying its parameters for super critical components of hydrocarbon reservoir fluids. Fluid Phase Equilibria 112 (1995) 45-61.
