Reel Packing Calculator

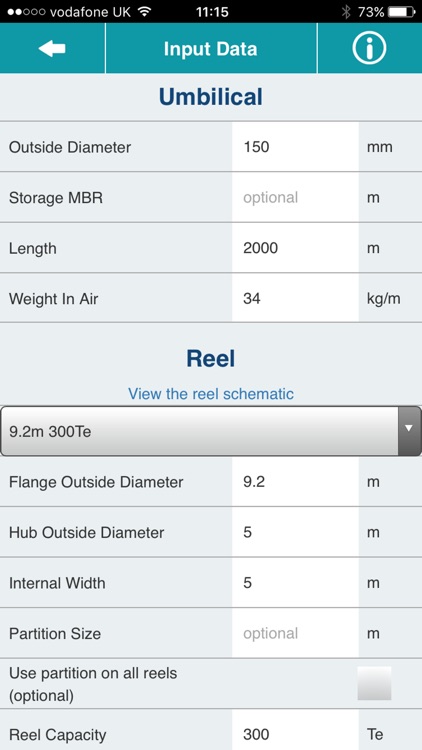

The Packing Calculator app provides the packing arrangements for rigid and flexible products. There are two options for each type, single pipe and pipe-in-pipe for rigid types and flexible and umbilical for flexible types. The rigid product is packed on a reel. The flexible product can be packed on a reel or carousel. For the reel, two packing configurations are available in the calculations, stacked and meshed.

For rigid pipelines, if the weight is unknown, user can input the outside diameter, wall thickness and coatings and the app calculates the weight and uses the value in the packing calculations. For more information, refer to the manual within the app.

The packing calculations are based on the geometrical and theoretical packing configurations, no operational tolerances are considered in the calculations.

Once the app is installed on a device, there is no need to access to the internet to use it.
The app has been checked and verified by PDi engineering team, however no liability can be accepted for any loss or damage arising from use if this information.
