Sectionary LT

* Sectionary is basically a cross-section dictionary for iPhone and iPad which reports geometrical and mechanical properties of common structural sections for beams and columns

* Sectionary is basically a cross-section dictionary for iPhone and iPad which reports geometrical and mechanical properties of common structural sections for beams and columns

Sectionary LT

by Massimo Marletta
Sectionary LT
Sectionary LT

What is it about?

* Sectionary is basically a cross-section dictionary for iPhone and iPad which reports geometrical and mechanical properties of common structural sections for beams and columns.

App Details

Version
1.58
Rating
(3)
Size
23Mb
Genre
Productivity Reference
Last updated
September 27, 2018
Release date
March 4, 2013
More info

Sectionary LT is FREE but there are more add-ons

  • $1.99

    Shape Pack

  • $0.99

    Advanced Beam

  • $0.99

    Remove Ads

App Screenshots

Sectionary LT screenshot-0
Sectionary LT screenshot-1
Sectionary LT screenshot-2
Sectionary LT screenshot-3
Sectionary LT screenshot-4
Sectionary LT screenshot-5
Sectionary LT screenshot-6
Sectionary LT screenshot-7
Sectionary LT screenshot-8

App Store Description

* Sectionary is basically a cross-section dictionary for iPhone and iPad which reports geometrical and mechanical properties of common structural sections for beams and columns.

* The sections can be either edited by the user starting from pre-defined shapes or chosen by a wide library of normalized steel profiles, including European (such as IPE, HE and UPN series), US, UK, Australian and Japanese standard sections.
The provided shapes are suitable for steel and wooden sections, while further details for reinforced concrete elements will be added in the future.

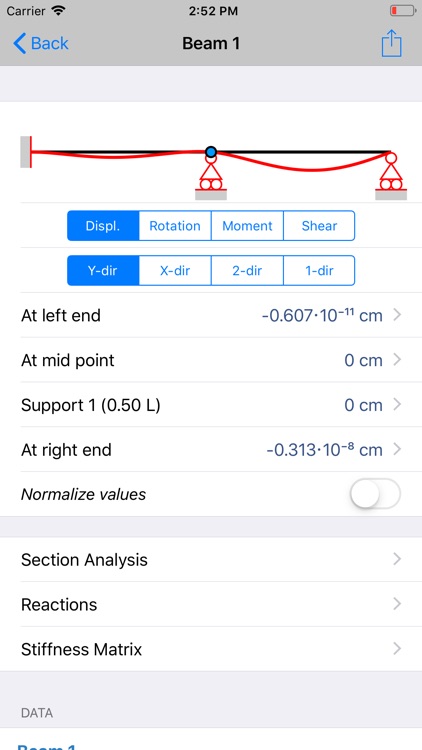

* But Sectionary is much more than a mere cross-section catalog! By means of direct integration of the Elastic Beam fourth-order differential equation, Sectionary evaluates - for a given cross-section - displacements, rotations, bending moments and shear forces along beams subjected to transversal loads with several restraint conditions (i.e. simply supported, cantilever and much more).

* Sectionary provides a wide range of geometrical and mechanical properties at the cross-section level which are useful in the structural analysis of beams and columns (i.e. centroid location, area, principal axes, static moments, second order moments, elastic and plastic modules, etc) plus several results for beams (i.e. deflections, bending moments, etc).

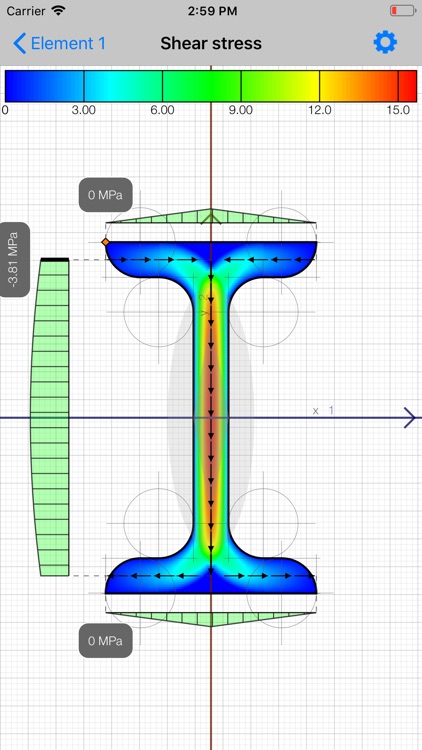

* Stress analysis is also provided. The internal forces can be directly assigned by the user or derived from the elastic-beam calculations.

* By considering section and material properties, Sectionary provides resistant bending moment and resistant shear force for steel sections according to Italian and European codes

* Sectionary is a useful reference tool for both professional users (structural engineers and architects) and students of the Statics and Mechanics of Structures courses.

If you are interested in Sectionary, may be you would like "Bolted", our new app for the design of bolted connections of steel elements according to Eurocode 3.
Check it out on the AppStore!
