Shaft Stress and Notch Factor

This App calculates the Notch Factors and the Total Stress on the Radius of a two Diameter Shaft with or without internal Hole

This App calculates the Notch Factors and the Total Stress on the Radius of a two Diameter Shaft with or without internal Hole

Shaft Stress and Notch Factor

by Claudio Maffei
Shaft Stress and Notch Factor
Shaft Stress and Notch Factor
Shaft Stress and Notch Factor

What is it about?

This App calculates the Notch Factors and the Total Stress on the Radius of a two Diameter Shaft with or without internal Hole.

Shaft Stress and Notch Factor

App Details

Version
1.0
Rating
NA
Size
13Mb
Genre
Productivity Utilities
Last updated
July 17, 2017
Release date
July 17, 2017
More info

App Screenshots

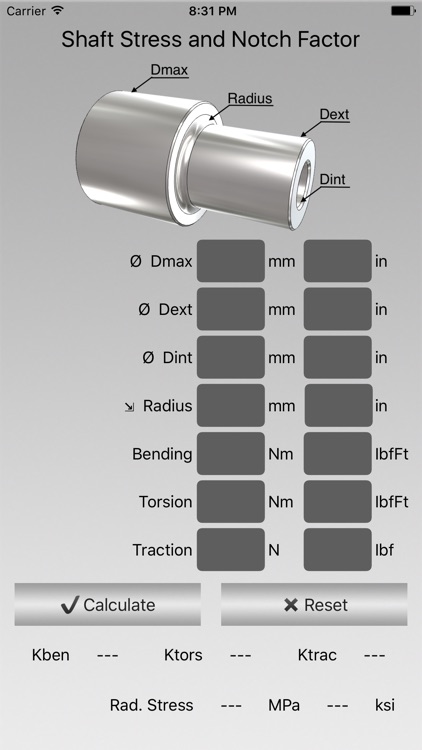

Shaft Stress and Notch Factor screenshot-0
Shaft Stress and Notch Factor screenshot-1
Shaft Stress and Notch Factor screenshot-2
Shaft Stress and Notch Factor screenshot-3
Shaft Stress and Notch Factor screenshot-4

App Store Description

This App calculates the Notch Factors and the Total Stress on the Radius of a two Diameter Shaft with or without internal Hole.

You can use or Metric Units, Imperial Units or you can Combine them.

Inputs:
Dmax => Major Diameter of the Bigger Shaft
Dext => External Diameter of the Smaller Shaft
Dint => Internal Diameter of the Smaller Shaft (when present)
Radius => Radius between the two Shafts
Bending => Bending Moments acting on the Shaft Radius
Torsion => Torsional Moment acting on the Shaft
Traction => Axial Force acting on the Shaft

Output:
Kben => Notch Factor for Bending Stress
Ktors => Notch Factor for Torsional Stress
Ktract => Notch Factor for Axial Force
Rad.Stress => Total Stress on Radius
