What is it about?

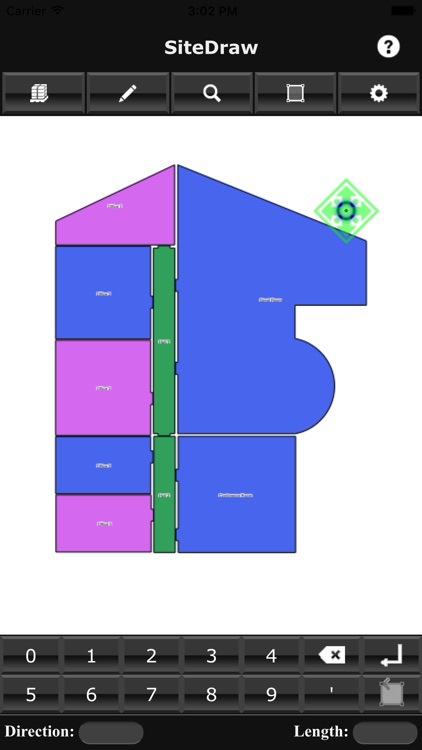

SiteDraw is designed to create fast and accurate “As Built” floor plans. Rooms are drawn by manually inputting room dimensions and swiping the screen in the direction of the line, or by receiving measurements from Leica Disto Laser Rangefinders*.

SiteDraw

App Details

Version
1.2.20
Rating
NA
Size
8Mb
Genre
Business Productivity
Last updated
September 9, 2016
Release date
January 8, 2014
More info

App Screenshots

SiteDraw screenshot-0
SiteDraw screenshot-1
SiteDraw screenshot-2
SiteDraw screenshot-3

App Store Description

SiteDraw is designed to create fast and accurate “As Built” floor plans. Rooms are drawn by manually inputting room dimensions and swiping the screen in the direction of the line, or by receiving measurements from Leica Disto Laser Rangefinders*.

Designed with the Builder, Interior Designer, Space Planner, Flooring Estimator, Insurance Adjuster, Real Estate Agent and Appraiser in mind, SiteDraw eliminates the overhead and steep learning curve of similar CAD type programs. Draw straight lines, angles and curves through triangulation off of existing room points.

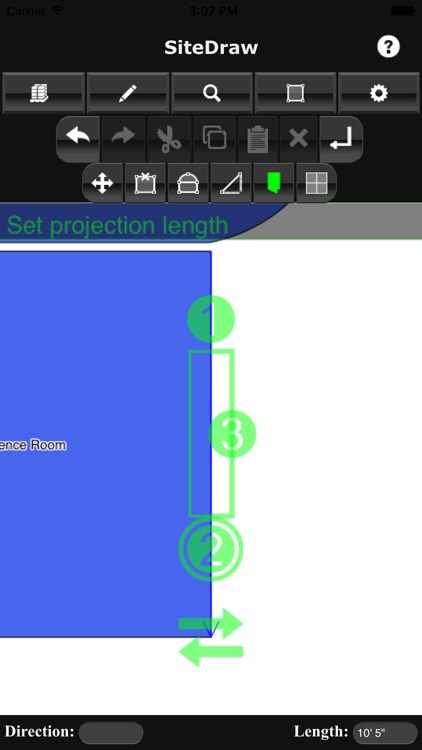

The door insertion tool allows rapid placement of door locations and openings from fixed reference points within a room. Once the first door opening is created, SiteDraw memorizes the width and depth of the opening to make repetitive door placement in rooms, halls and corridors a breeze. Door locations are also used as the connecting point to accurately position rooms in relation to adjacent rooms.

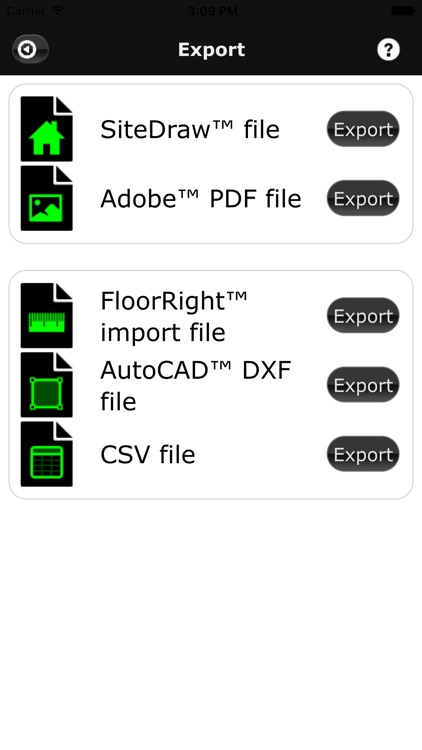

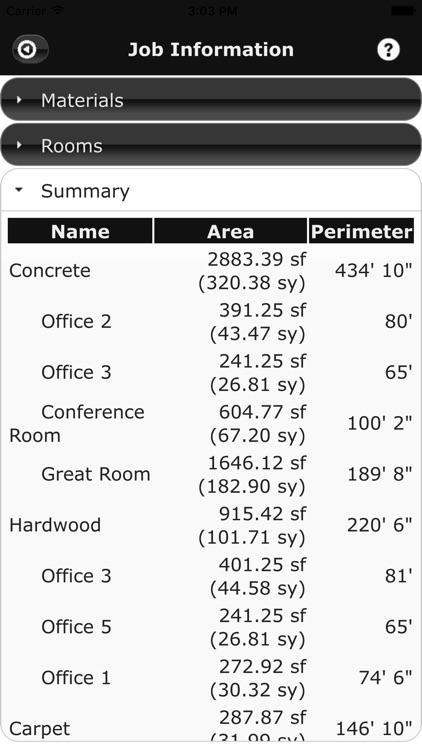

Room summary displays net square footage, square yardage and perimeter per room. Drawing (with room dimensions) can be exported to .pdf, .csv, .dxf and FloorRight Flooring and Carpet Estimating Software.

*Disto is a registered trademark of Leica Geosystems. SiteDraw will not integrate with all models of the Disto Laser Rangefinder. Visit the SiteDraw website for hardware compatibility.
