Spread Footing

SPREAD FOOTING is structural engineering application utilized by Civil Engineers to design and analyze foundations with Large bi-axial Loads - Moments.

• Friendly User Interface.
• Details Slides and generated PDF with Code reference.

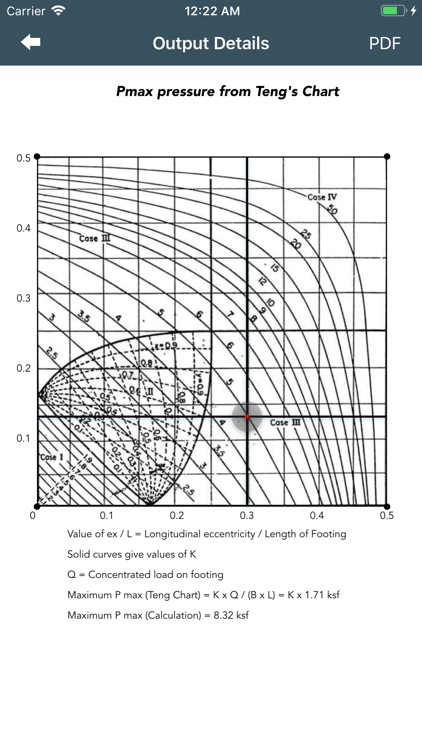

• Pressure at Foundation corners.
• Imperial and Metric Unit

Presented Details:
• Effective area under Tension and Compression Zone.
• Pressures are each corner and Gravity Center.

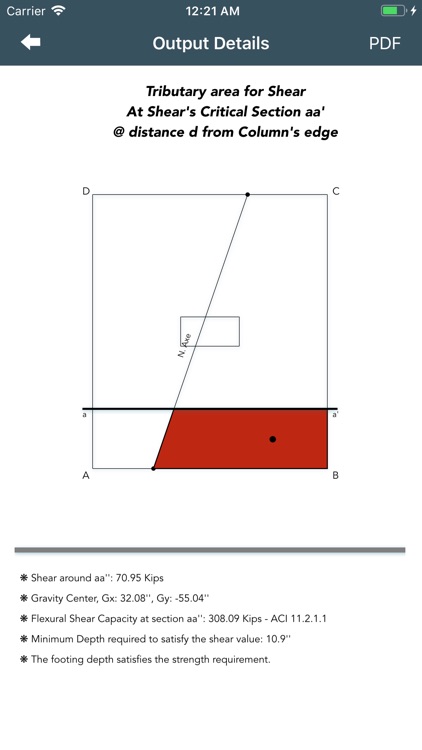

• Oneway Shear, Two way Shear, Penetration Shear at Critical Sections.

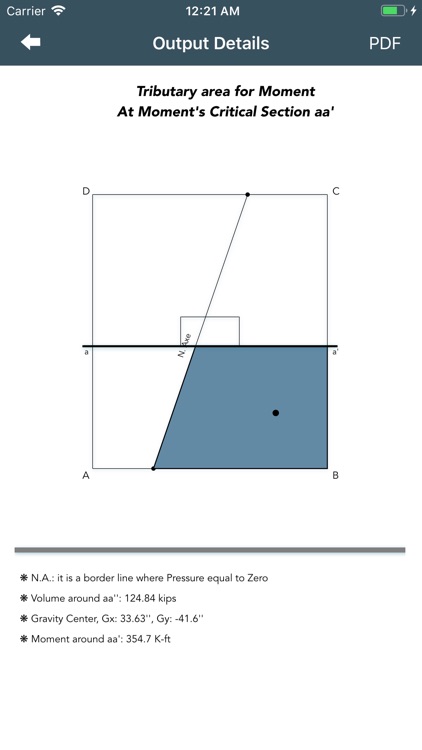

• Moments at Critical Sections.

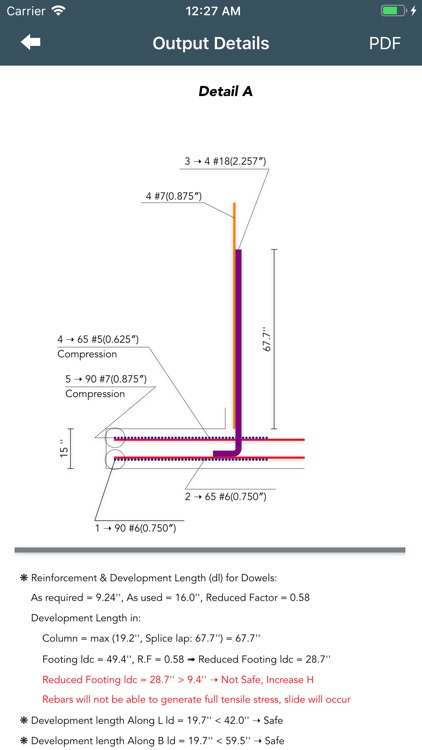

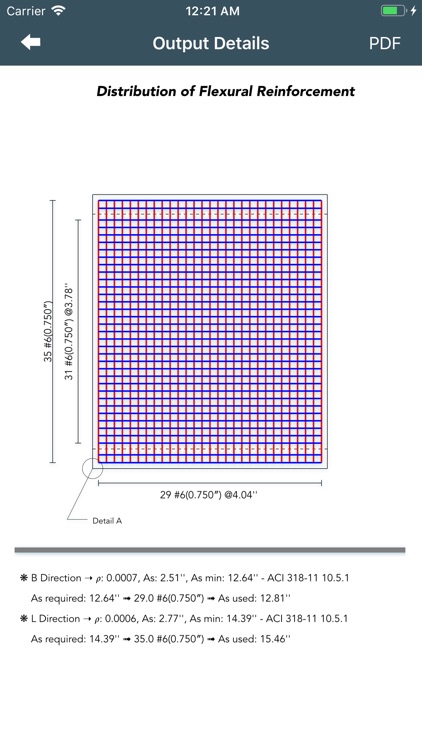

• Rebars Distribution in Plan and in Section.

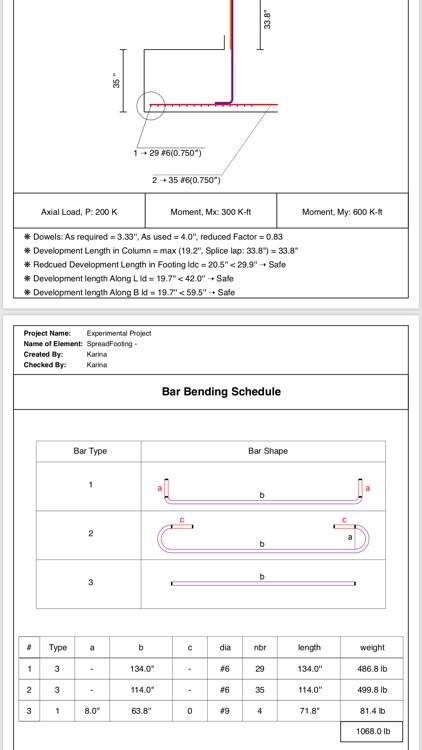

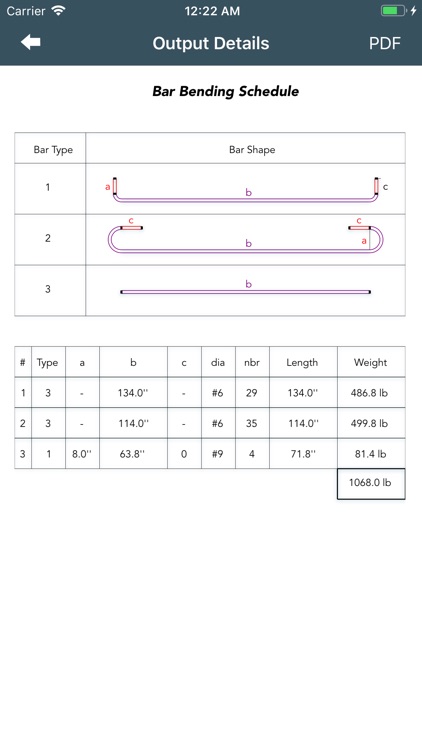

• Bar Bending Schedule.
