The 555 timer is an integrated circuit chip that is commonly used in timers, pulse generators, and oscillator circuits
Timing Circuit-Calculating
by Tegan Warner
What is it about?
The 555 timer is an integrated circuit chip that is commonly used in timers, pulse generators, and oscillator circuits. The 555 can be used as a delay device, flip-flop or oscillating element in the circuit.
App Store Description
The 555 timer is an integrated circuit chip that is commonly used in timers, pulse generators, and oscillator circuits. The 555 can be used as a delay device, flip-flop or oscillating element in the circuit.
This application is mainly used to calculate the timing circuit output frequency.

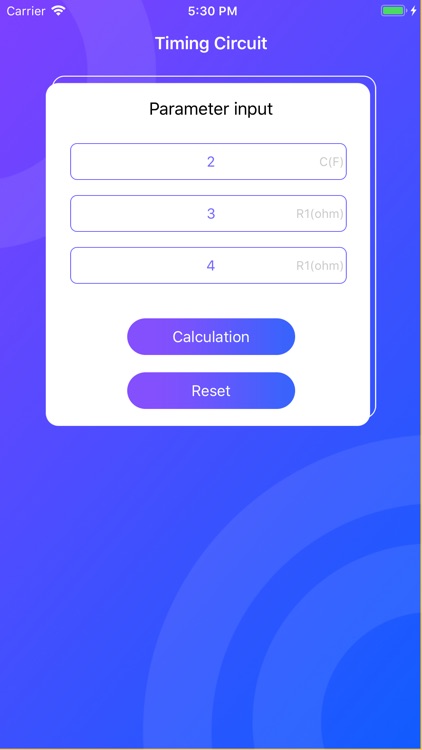

Input parameters: R1 (ohm); R2(ohm); C(F)
Output parameters: duty cycle (%), high time (s), low time (s), frequency (Hz)
Calculation formula:
TH (high time s) = 0.693 * (R1 + R2) * C
TL (low time s) = 0.693 * R2 * C
Frequency (output frequency) = 1.44 / ((R1 + R2 + R2) * C)
DCP (duty cycle %) = (T(h) / (T(h) + T(l))) * 100
Disclaimer: The calculation results are for reference only!
