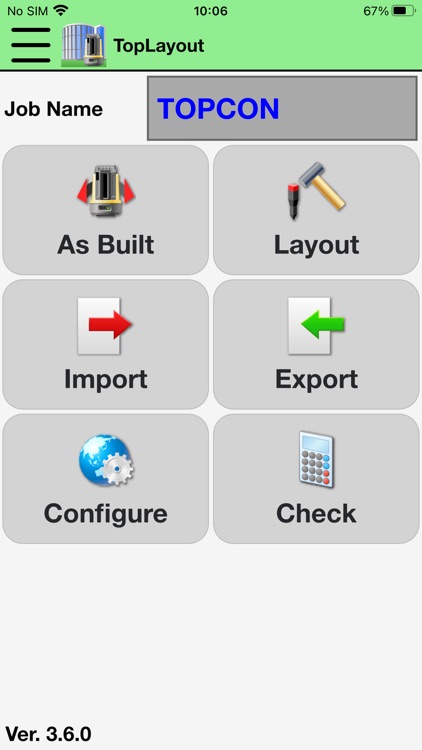

TopLayout

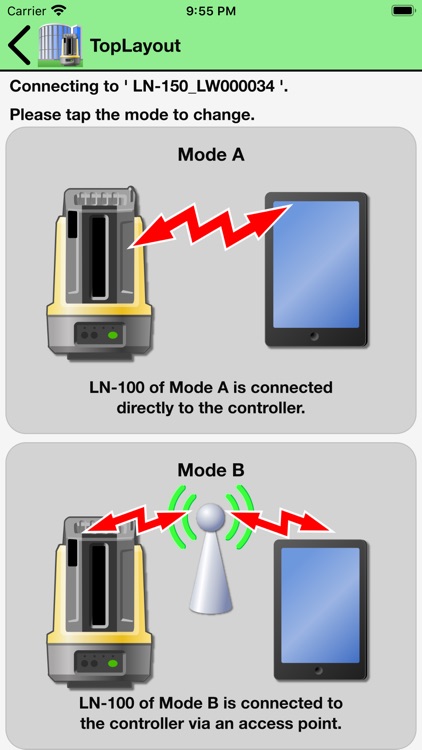

This application can communicate with a layout navigator LN-100/150. By using this, you can perform the layout work of 3 dimensional design data and as-build measurement of 3 dimensional point data.

Layout navigator LN-100/150 is pursuing the increase in efficiency of survey work and the ease of using compared with the conventional survey instrument.
The update rate of data has realized 20 Hz. So the data delay to the motion of the prism is minimized and the response of guidance to a layout point becomes smooth. Moreover, it can be re-tracked quickly when it failed of tracking the prism.
By carrying the self leveling, LN-100/150 can also be used easily by user which is not used to handling of a survey instrument.

Main Features of layout navigator LN-100/150：
+Realization of simplification of operation by the limit to the function of layout work and as-build measurement.
+Realization of the laborsaving by the measurement by oneself.
+Realization of improvement of operational efficiency by the optimal sequence for each of layout work and as-build measurement.
+Realization of simplification of instrument setup by the self leveling and visual information of operation steps.

https://www.topcon.co.jp/en/positioning/products/product/ts00/LN-100_E.html

To use this application, the use of location information should be enabled.
This application can be used on devices with iOS 12 or higher.
Please note that operation on all devices is not guranteed.

Operability confirmed model：
+iPhone 8 (iOS 14.2)
+iPhone 11 Pro (iOS 13.3.1)
+iPad (6th generation)(iOS 12.2)

The instruction manual can be downloaded from the TOPCON website.
