Vibration Pro

Vibration Pro is a true vibration spectrum analyzer using the built in accelerometers and gyroscope inside the iPod Touch and the iPhone, the built in microphone or the Digiducer series of professional quality external USB accelerometers and USB input sensors

Vibration Pro is a true vibration spectrum analyzer using the built in accelerometers and gyroscope inside the iPod Touch and the iPhone, the built in microphone or the Digiducer series of professional quality external USB accelerometers and USB input sensors

Vibration Pro

by Diffraction Limited Design LLC
Vibration Pro
Vibration Pro
Vibration Pro
Apple Watch
Vibration Pro Apple Watch App
Vibration Pro Offers Apple Watch App
Check the details on WatchAware

What is it about?

Vibration Pro is a true vibration spectrum analyzer using the built in accelerometers and gyroscope inside the iPod Touch and the iPhone, the built in microphone or the Digiducer series of professional quality external USB accelerometers and USB input sensors. It acquires and displays time series data, and performs an FFT on each channel to produce frequency spectra. The internal 3-channel accelerometer has a sensitivity of approximately 0.002g and a range of ±7.5g and a frequency range from 0 - 50 Hz (0-3000 rpm) making the iPhone and iPod Touch and iPad sensitive enough to analyze the vibration of most moving machinery. For better sensitivity and a larger frequency range Vibration Pro can be used with external sensors which have sensitivity down to seismic levels and frequency ranges up to 24 kHz.

Vibration Pro

App Details

Version
3.95
Rating
NA
Size
11Mb
Genre
Business Productivity
Last updated
February 25, 2021
Release date
February 7, 2021
More info

App Screenshots

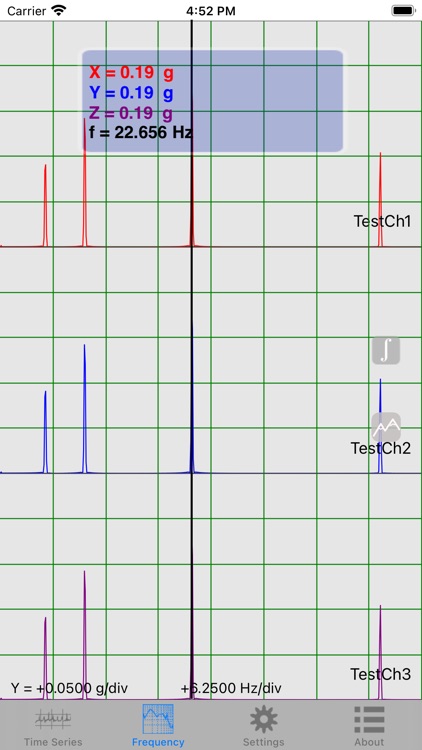

Vibration Pro screenshot-0
Vibration Pro screenshot-1
Vibration Pro screenshot-2
Vibration Pro screenshot-3
Vibration Pro screenshot-4
Vibration Pro screenshot-5
Vibration Pro screenshot-6
Vibration Pro screenshot-7

App Store Description

Vibration Pro is a true vibration spectrum analyzer using the built in accelerometers and gyroscope inside the iPod Touch and the iPhone, the built in microphone or the Digiducer series of professional quality external USB accelerometers and USB input sensors. It acquires and displays time series data, and performs an FFT on each channel to produce frequency spectra. The internal 3-channel accelerometer has a sensitivity of approximately 0.002g and a range of ±7.5g and a frequency range from 0 - 50 Hz (0-3000 rpm) making the iPhone and iPod Touch and iPad sensitive enough to analyze the vibration of most moving machinery. For better sensitivity and a larger frequency range Vibration Pro can be used with external sensors which have sensitivity down to seismic levels and frequency ranges up to 24 kHz.

In many applications Vibration Pro can be an excellent portable alternative to a commercial spectrum analyzer. In predictive maintenance applications Vibration Pro can help identify bearing defects, shaft misalignment, imbalance, and structural resonant frequencies. Vibration Pro is also useful for monitoring the acceleration of part and material handling equipment.

The software is flexible and easy to use. It was written to emulate the familiar oscilloscope based spectrum analyzer. Sample rate and sample delay are easily adjustable and the user can select the length of the data acquisition and the vertical scale used for the display. When a test is complete the resulting data can be saved locally on your device or it can be emailed to your desktop computer for documentation purposes.

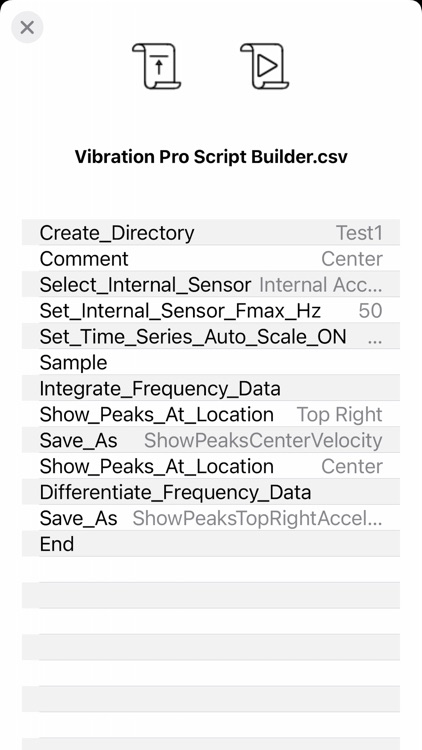

The scripting capability allows creation of complex scripts which can provide the technician with detailed instructions to guide them through multiple measurements. All data is stored in a folder on the device which can easily be emailed or copied to a cloud service for analysis. Scripting is available through an in-app auto renewing monthly subscription which can be renewed and cancelled at any time.
