What is it about?

VIRFuel is a fuel and weight calculation application designed for Boeing 787, 747, Airbus A340, 330 operations using the Sabre flight plan. The application is in metric tonnes and conforms to SOPs used for Virgin Atlantic operations.

VIRFuel

App Details

Version
4.1
Rating
NA
Size
23Mb
Genre
Utilities Navigation
Last updated
June 5, 2018
Release date
January 20, 2011

App Screenshots

VIRFuel screenshot-0
VIRFuel screenshot-1
VIRFuel screenshot-2
VIRFuel screenshot-3
VIRFuel screenshot-4
VIRFuel screenshot-5
VIRFuel screenshot-6

App Store Description

VIRFuel is a fuel and weight calculation application designed for Boeing 787, 747, Airbus A340, 330 operations using the Sabre flight plan. The application is in metric tonnes and conforms to SOPs used for Virgin Atlantic operations.

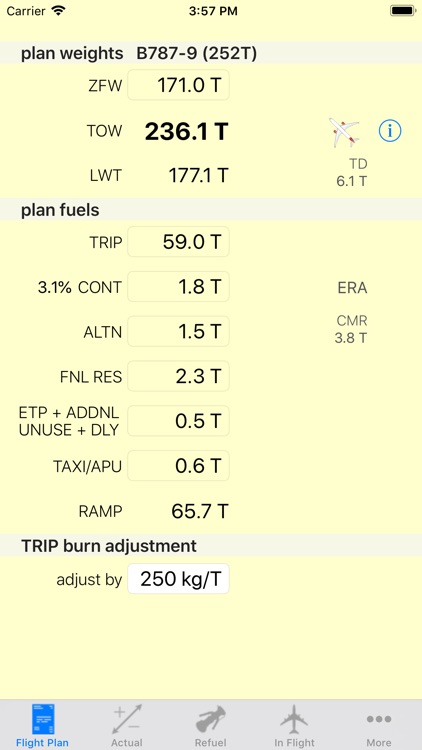

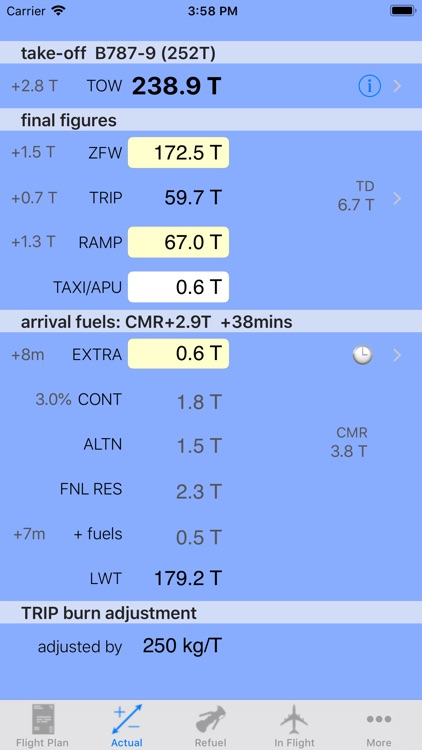

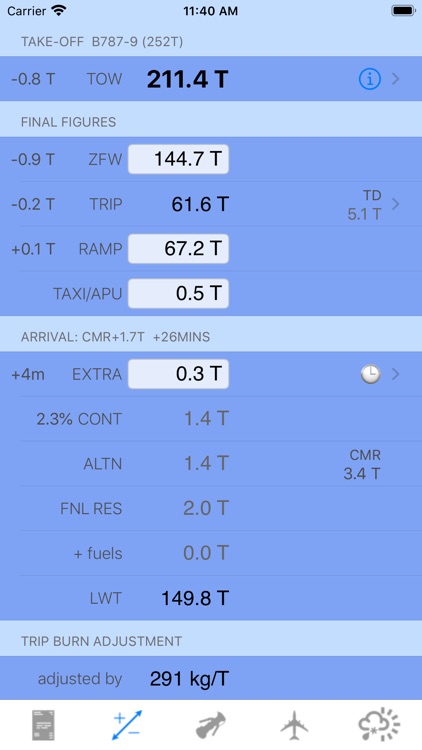

Fuel and weight data is inserted from the front page of the flight plan (the 'plan figures') and can then be updated with desired loads and actual figures from the final ZFW/loadsheet. Changes in zero-fuel weight calculate updates to trip fuel and suggest a new ramp fuel. Alternatively a manually entered ramp fuel, touchdown fuel or required extra fuel at destination will calculate updates to trip fuel and ramp fuel.

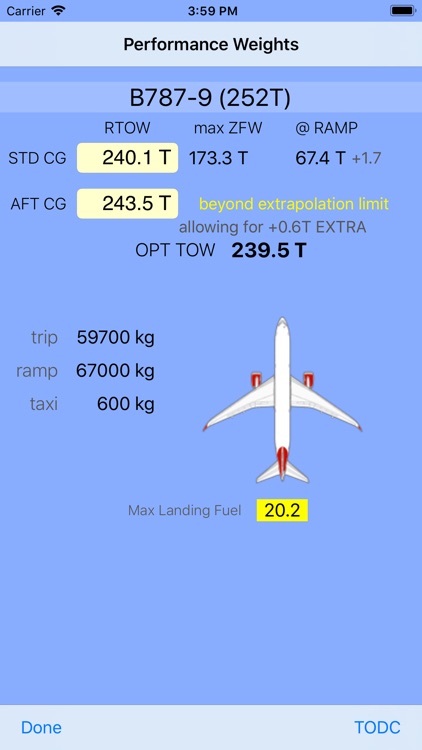

At each stage a take-off weight will be updated and TODC/OPT weights calculated (a TODC buffer of 1T is used). For near maximum weight plans, Std and Aft CG RTOW weights can be provided to calculate a maximum possible ZFW & Ramp fuel combination.

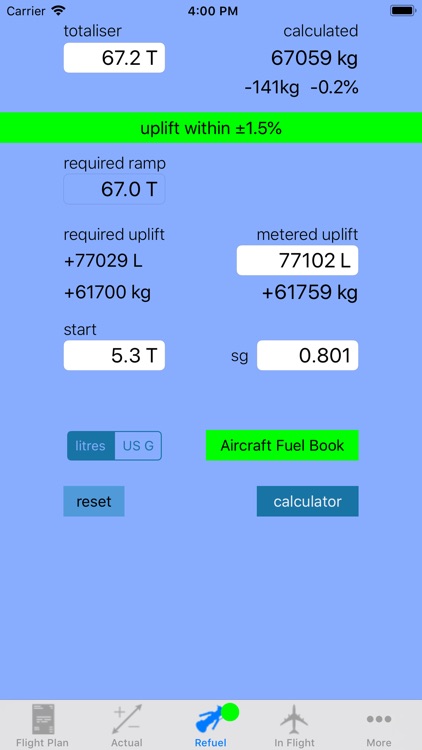

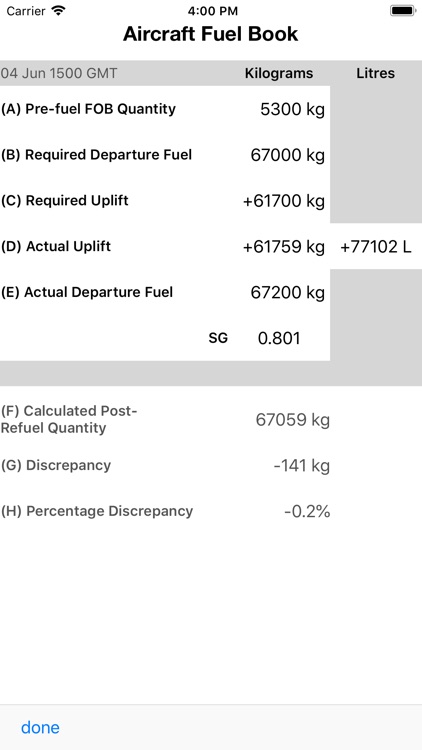

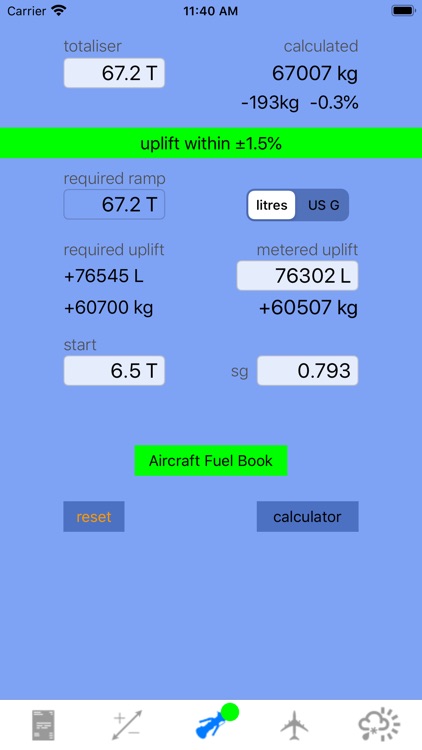

Fuel uplift calculations in Litres and USG with commonly used density units are available to ensure an indicated versus calculated fuel load within +/-1.5%. A representation of the Aircraft Fuel Book can be shown for the easy entry or cross-checking of log book entries.

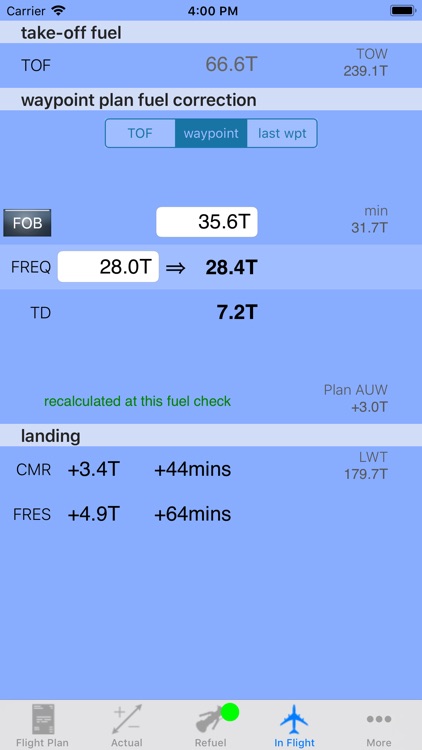

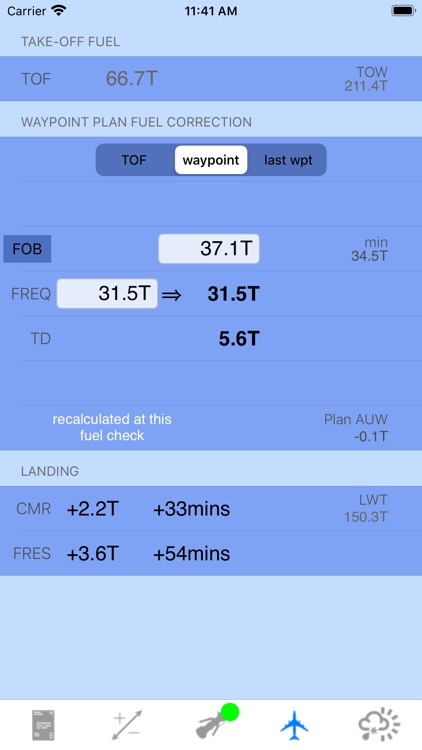

Finally, flight plan waypoint fuel checks can be updated for changes in trip fuel burn.

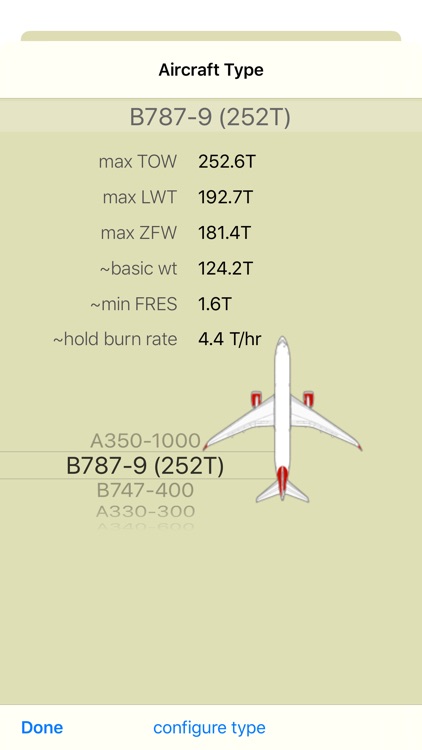

Internal cross-checking is performed and aircraft type limits can be set using the application settings menu or from the plan input page. Engineers have the option to skip directly to the fuel uplift page. A 'swipe-to-reveal' calculator has time addition and unit conversion functions.
Multiple waypoints can be input in lat/lon or selected from a list of North Atlantic entry points. With the addition of spot groundspeeds at each waypoint the true track, distance and time estimates for each waypoint are displayed (consistent with the flight plan format) to cross check oceanic routing or to cross check re-route legs. (Distances, although rounded to the nearest NM are calculated over the earth ellipsoid to metre-level accuracy in the given direction at zero height.)
A GoogleEarth compatible file of the route waypoints can be downloaded when your device is connected to iTunes - sync your device to your iTunes app on the desktop then select the "device" from the left-hand menu bar: under the "Apps" tab select VIRFuel in the "File Sharing" window. "routeWaypoints.kml" can be selected and saved with "Save to..."

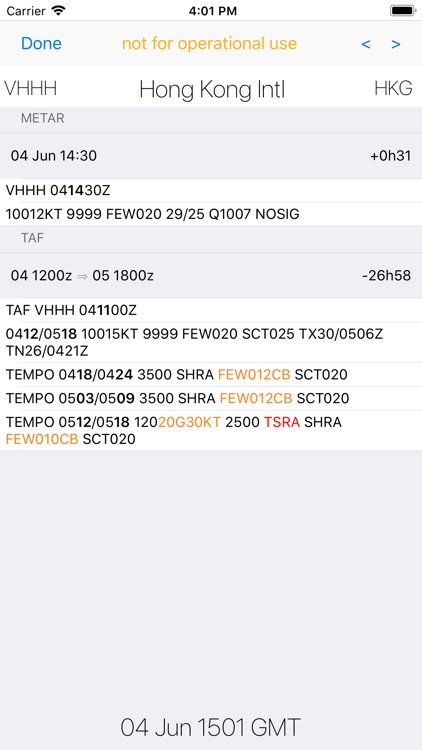

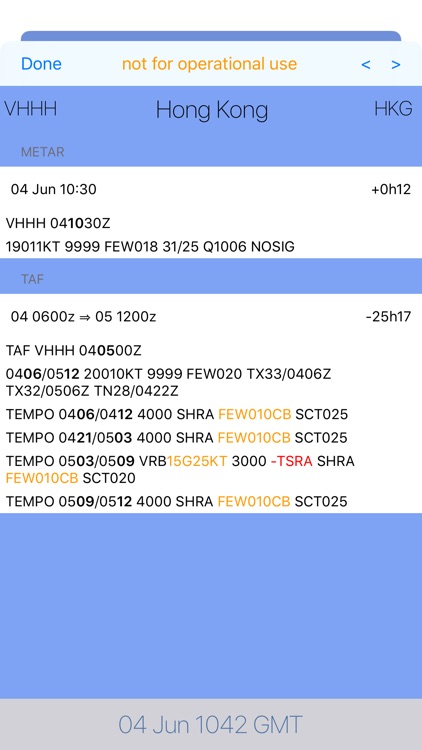

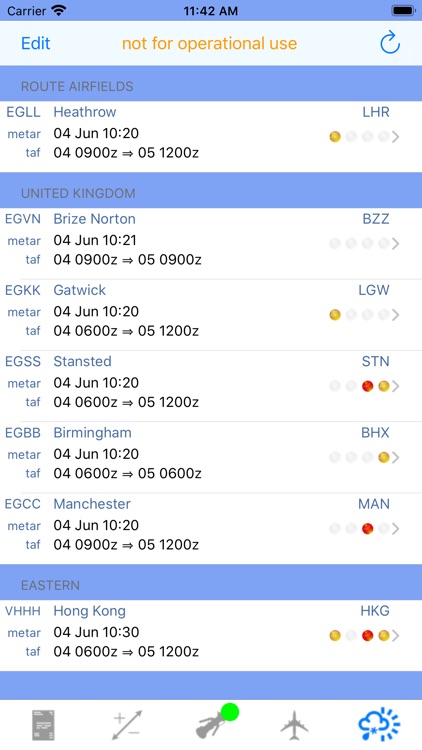

A list of favourite airports can be maintained for which TAF and Metar reports can be downloaded from the NOAA ADDS service. The reports are crosschecked for format errors, download errors and time validity. A colour coded system will highlight wind/visibility/weather/cloud fields that may have operationally significant values. RMK fields are not comprehensively scanned for all decodes and runway states or local variations in format are not necessarily decoded.
