Visual Traffic Pattern

The Visual Traffic Pattern provides a complete visual reference to a selected runway's left or right traffic pattern

The Visual Traffic Pattern provides a complete visual reference to a selected runway's left or right traffic pattern

Visual Traffic Pattern

by Arthur Varrassi
Visual Traffic Pattern
Visual Traffic Pattern
Visual Traffic Pattern

What is it about?

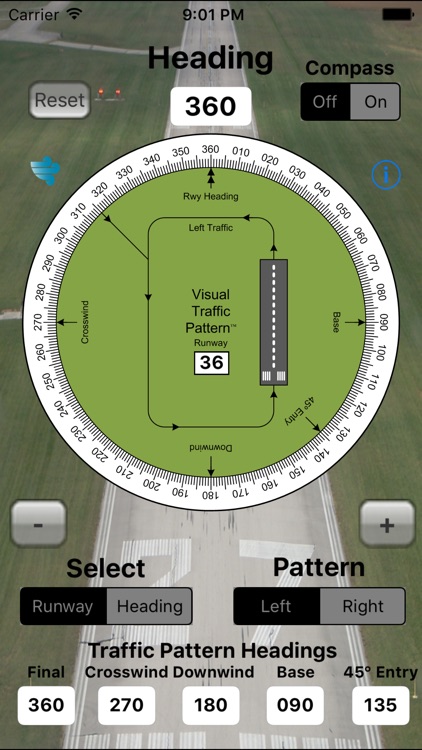

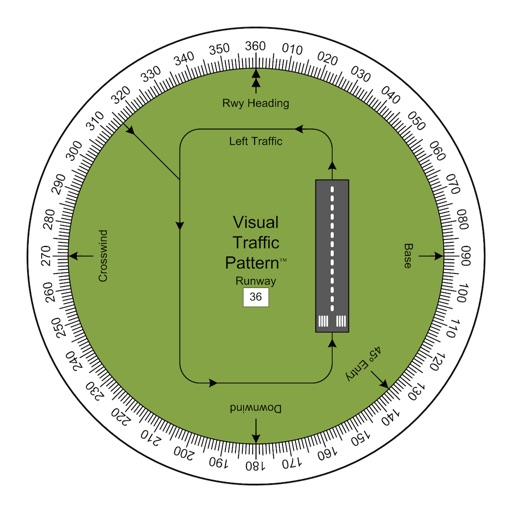

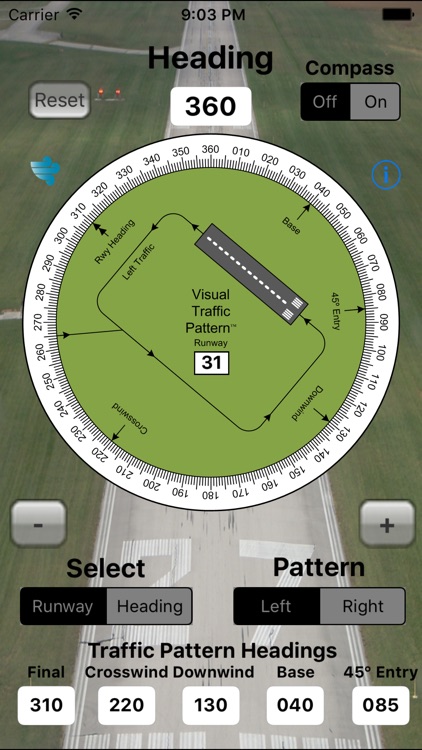

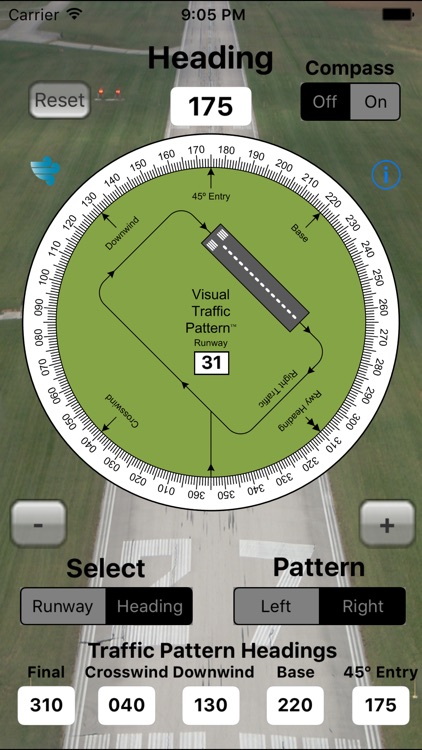

The Visual Traffic Pattern provides a complete visual reference to a selected runway's left or right traffic pattern. With a single finger rotation a pilot can easily view the runway, crosswind, downwind, base, and 45 degree entry headings associated with that runway's traffic pattern. The magnetic orientation of the runway can be rotated to match the aircraft's heading to allow the pilot to visualize the aircraft's approach to the selected runway.

Visual Traffic Pattern

App Details

Version
1.2.1
Rating
NA
Size
25Mb
Genre
Navigation Reference
Last updated
July 7, 2017
Release date
September 18, 2014
More info

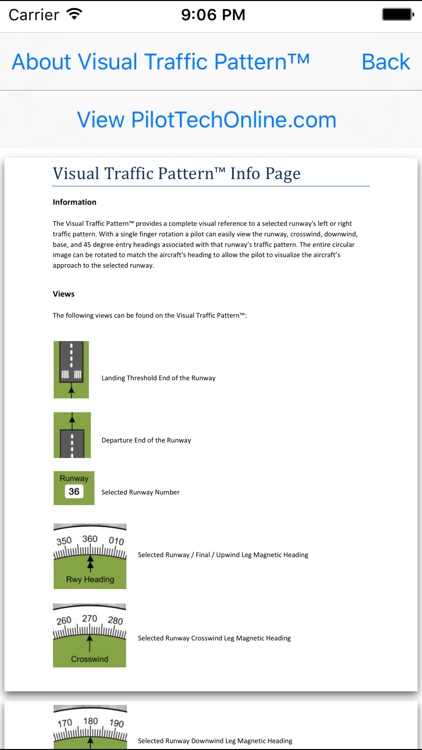

App Screenshots

Visual Traffic Pattern screenshot-0
Visual Traffic Pattern screenshot-1
Visual Traffic Pattern screenshot-2
Visual Traffic Pattern screenshot-3
Visual Traffic Pattern screenshot-4

App Store Description

The Visual Traffic Pattern provides a complete visual reference to a selected runway's left or right traffic pattern. With a single finger rotation a pilot can easily view the runway, crosswind, downwind, base, and 45 degree entry headings associated with that runway's traffic pattern. The magnetic orientation of the runway can be rotated to match the aircraft's heading to allow the pilot to visualize the aircraft's approach to the selected runway.

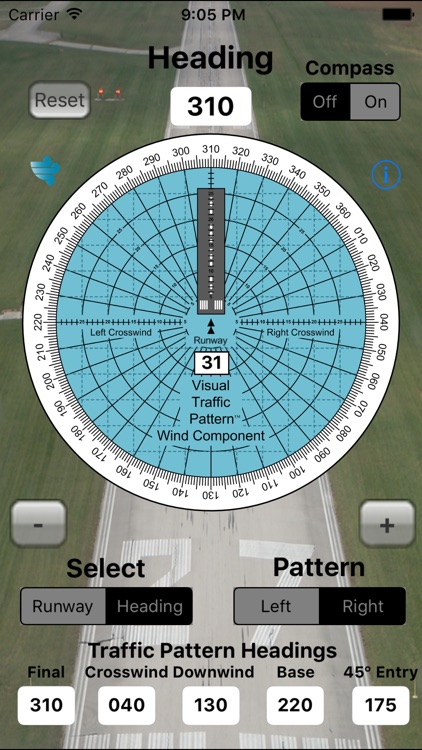

Additional features include compass control of the Heading indicator and a built in Wind Component diagram which will allow you to easily determine runway crosswind and headwind components before takeoffs and landings.

This app is designed for optimal viewing and use on an iPad or iPhone 5 and above. This app requires iOS 8.0 or greater.
