SMD Resistor Calculation

In this system the first two or three digits indicate the numerical resistance value of the resistor and the last digit gives a multiplier

In this system the first two or three digits indicate the numerical resistance value of the resistor and the last digit gives a multiplier

SMD Resistor Calculation

by Amnys Rachid guimar
SMD Resistor Calculation
SMD Resistor Calculation
SMD Resistor Calculation

What is it about?

In this system the first two or three digits indicate the numerical resistance value of the resistor and the last digit gives a multiplier. The number of the last digit indicates the power of ten by which to multiply the given resistor value. Here are some examples of values under this system:

SMD Resistor Calculation

App Details

Version
1.0
Rating
NA
Size
24Mb
Genre
Productivity Utilities
Last updated
December 29, 2019
Release date
December 29, 2019
More info

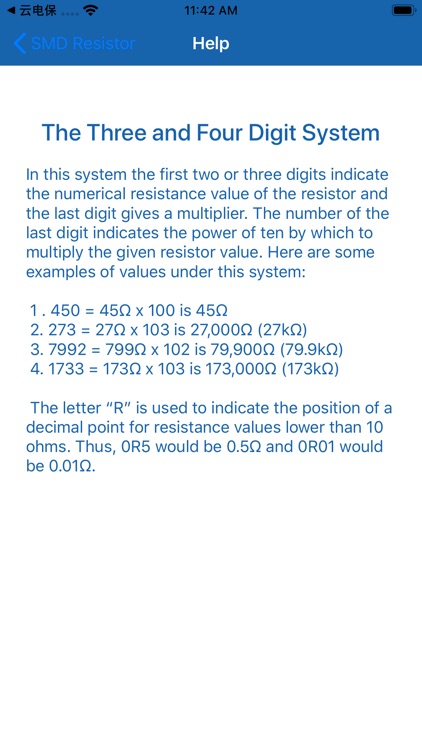

App Screenshots

SMD Resistor Calculation screenshot-0
SMD Resistor Calculation screenshot-1
SMD Resistor Calculation screenshot-2
SMD Resistor Calculation screenshot-3
SMD Resistor Calculation screenshot-4

App Store Description

In this system the first two or three digits indicate the numerical resistance value of the resistor and the last digit gives a multiplier. The number of the last digit indicates the power of ten by which to multiply the given resistor value. Here are some examples of values under this system:

1 . 450 = 45Ω x 100 is 45Ω
2. 273 = 27Ω x 103 is 27,000Ω (27kΩ)
3. 7992 = 799Ω x 102 is 79,900Ω (79.9kΩ)
4. 1733 = 173Ω x 103 is 173,000Ω (173kΩ)

The letter “R” is used to indicate the position of a decimal point for resistance values lower than 10 ohms. Thus, 0R5 would be 0.5Ω and 0R01 would be 0.01Ω.
