Adiabatic Equation Calculator
![Adiabatic Equation Calculator](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/53/1e/02/531e02f2-185a-debf-50e9-5b2efdd62022/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator](https://is1-ssl.mzstatic.com/image/thumb/Purple116/v4/fe/37/a9/fe37a99e-c362-9a4f-138e-55ef7731890d/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/99/1b/a5/991ba5fa-afe9-f56b-7b38-0773ca92881e/pr_source.png/750x750bb.jpeg)
What is it about?
Adiabatic Equation for calculating the minimum cpc (circuit protective conductor) and earth minimum csa sizes of earthing conductors.
![Adiabatic Equation Calculator](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/53/1e/02/531e02f2-185a-debf-50e9-5b2efdd62022/pr_source.png/750x750bb.jpeg)
App Details
App Screenshots

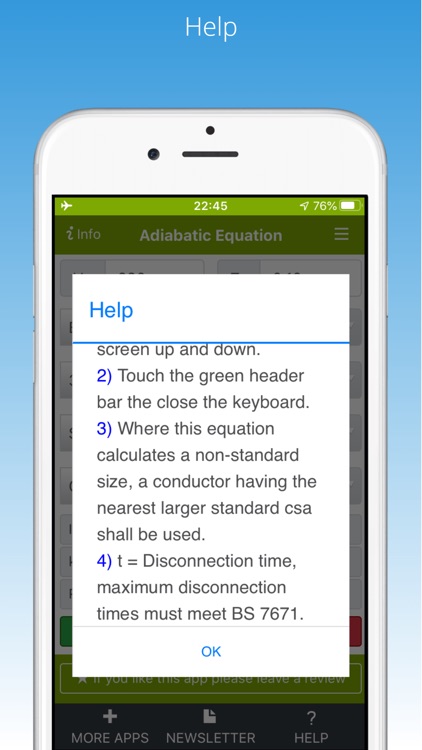

![Adiabatic Equation Calculator screenshot-0](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/53/1e/02/531e02f2-185a-debf-50e9-5b2efdd62022/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-1](https://is1-ssl.mzstatic.com/image/thumb/Purple116/v4/fe/37/a9/fe37a99e-c362-9a4f-138e-55ef7731890d/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-2](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/99/1b/a5/991ba5fa-afe9-f56b-7b38-0773ca92881e/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-3](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/46/b0/18/46b018af-c8cc-e0eb-319e-c96548650c4a/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-4](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/58/6e/67/586e6711-b54e-faf2-3274-0637869eb810/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-5](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/98/36/7d/98367d43-6701-8fef-1cad-63a1f2dc300a/pr_source.png/750x750bb.jpeg)
![Adiabatic Equation Calculator screenshot-6](https://is1-ssl.mzstatic.com/image/thumb/Purple126/v4/5a/e0/2c/5ae02ca3-a6e9-048a-2ea1-86050cfca827/pr_source.png/750x750bb.jpeg)
App Store Description
Adiabatic Equation for calculating the minimum cpc (circuit protective conductor) and earth minimum csa sizes of earthing conductors.
No need to remember the complex adiabatic formula with this adiabatic calculator app for iPhone and iPad..
Adiabatic Equation Calculator takes into account of the following:
t = Disconnection time (seconds)
k = Conductor k value (From BS 7671 tables)
la = Fault current (PEFC in Amps)
I² = la x la
Values of K are obtained from the tables within BS 7671:
- Table 54.2 : Conductor not incorporated in a cable and not bunched with cables.
- Table 54.3 : Conductor incorporated in a cable or bunched with cables.
- Table 54.4 : Sheath or armour of a cable.
- Table 54.5 : Steel conduit or trunking.
Disconnection times (t) are obtained from the maximum operating time/current characteristics tables within BS 7671:
- Fig 3A2 (a,b) : BS 3036 semi-enclosed fuse
- Fig 3A3 : (a,b) : BS 88-2.2
- Fig 3A4 : BS EN 60898 / 61009-1 MCB/RCBO type B
- Fig 3A5 : BS EN 60898 / 61009-1 MCB/RCBO type C
- Fig 3A6 : BS EN 60898 / 61009-1 MCB/RCBO type D
- BS 1361 Fuse
How to use the Adiabatic Equation App:

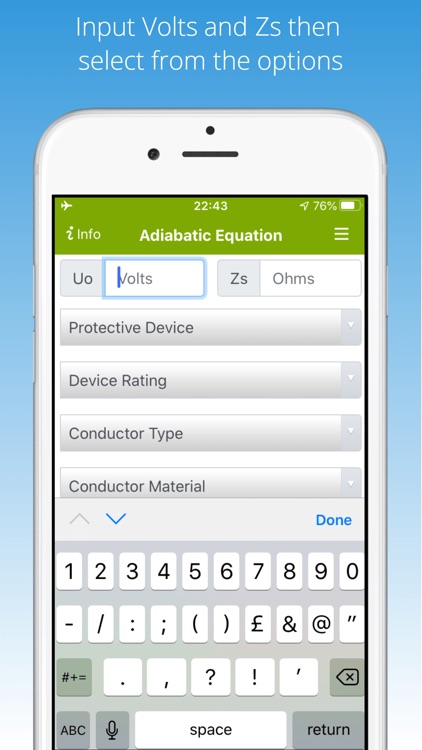

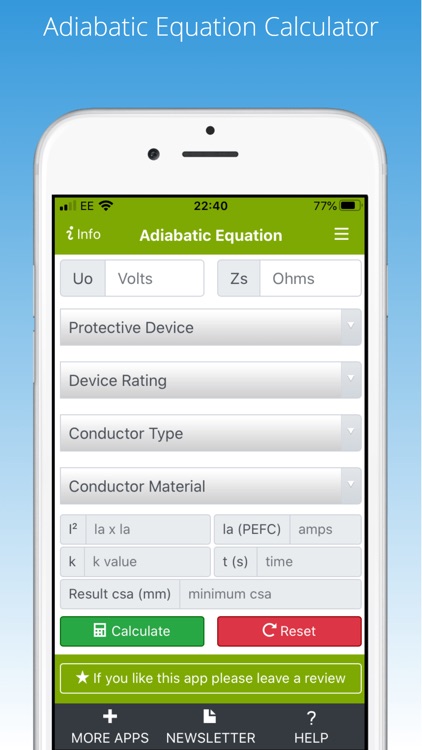

1) Input your voltage value
2) Input your Zs value

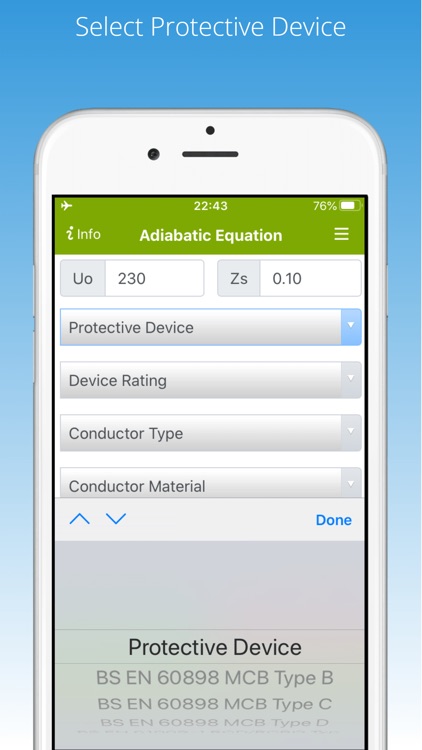

3) Select protective device

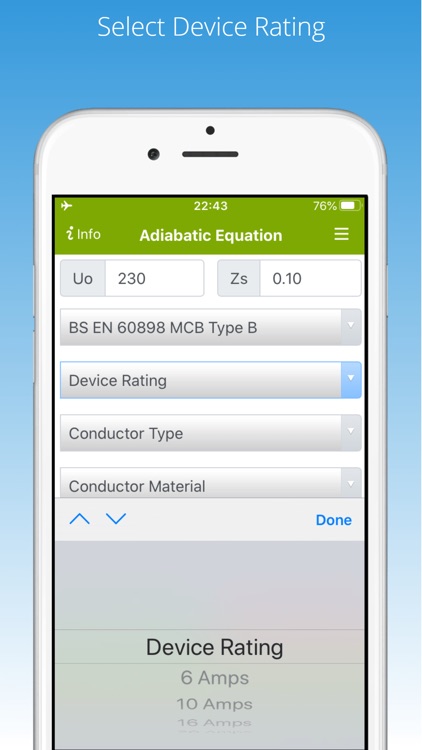

4) Select protective device rating

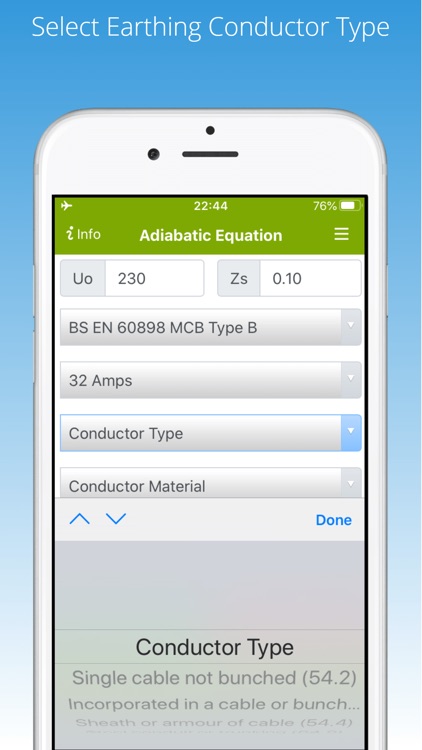

5) Select conductor type

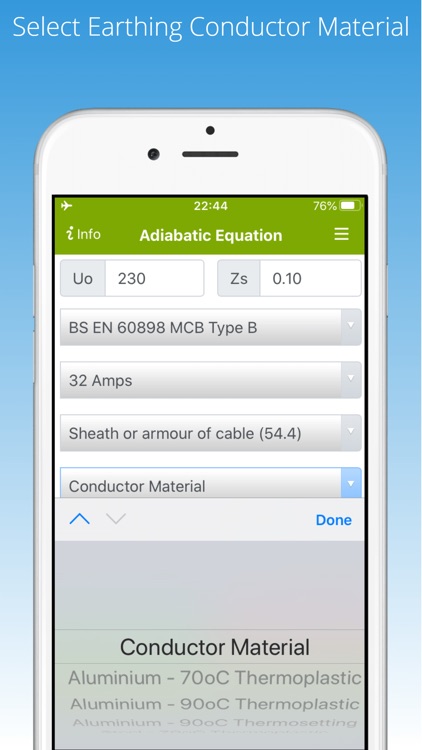

6) Select conductor material

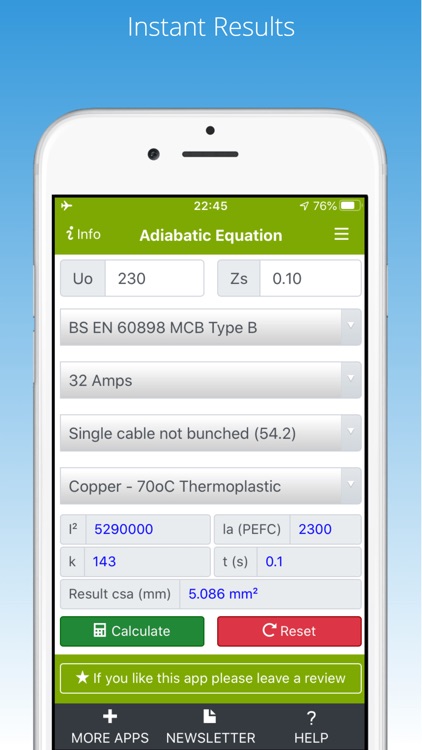

7) Tap calculate
Adiabatic Equation Calculator Software / App for iPhone and iPad.
Check out our collection of electrical apps for iPad & iPhone
