ClinoScope

"ClinoScope" is a new incline analysis tool for measuring angles of tilt, 3D inclination of an object with respect to gravity by using iPhone's acceleration/gyro sensor.

You can easily measure the slope of a variety of locations, such as the distortion of the floor, the inclination of buildings.

It can display the current terminal posture in real time, and has three measurement modes, Inclinometer in INCLINE mode, Gyro-positioning time graph in TIME mode.

Features:
- Optimized for iPhone, Compact code size.
- Measuring 3-dimintional angles of elevation, slope, or incline.
- Inclination measurement function (INCLINE)
- Gyro-positioning time graph function (TIME)
- Capture the measurement results to Photos. (SNAP)

Applications :
- Measurement of tilt states, such as furniture and floors.
- Adjustment of the horizontal reference level when installing the equipment.
- Measuring angle on moving vehicles.
- Setting adjustment, such as audio equipment.
- Use in various Sports, for example, measurement of the green inclination angle of the golf.

Functions:

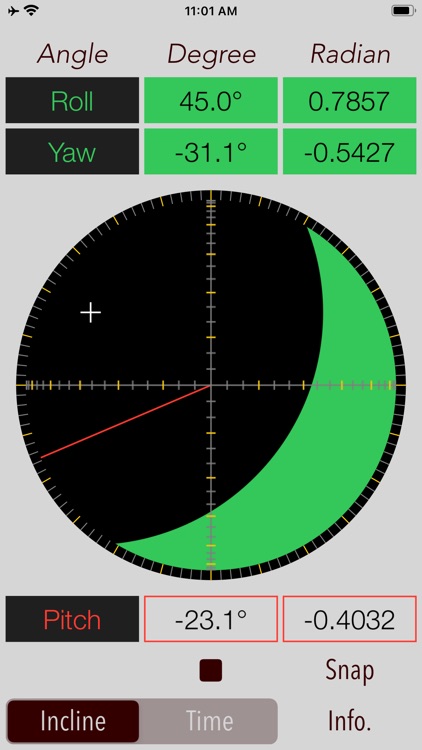

1) INCLINE (3-dimensional inclinometer)
This mode utilizes the information of the acceleration sensor, and operates as a three-dimensional inclinometer. It displays the angle and gradient in visually in accordance with the spatial attitude of the iPhone devices.

The measurement display is slightly different by the terminal posture state (FaceUp, Portrait, Landscape) as follows :

- FaceUP (terminal horizontal): FaceUP is the state that the terminal has become horizontal to the ground plane. In this case, it appears the angle of pitch and roll in the arc, and the angle of yaw in the circle needle. It also displays the cross mark (+) on the position of the zenith (or the nadir), such as seeing the terminal from directly above.

- Portrait (Vertical possession): Portrait is a state that you have hold the terminal to the vertical. The lower side of the Home button is standard. In this case, it appears the angle of pitch and yaw in the arc, and the angle of the roll in a circle needle.

- Landscape (Horizontal possession): Landscape is the state that you have got sideways a terminal, the home button right side will be the standard. In this case, it appears the angle of roll and yaw in the arc, and the angle of the pitch in the circle needle.

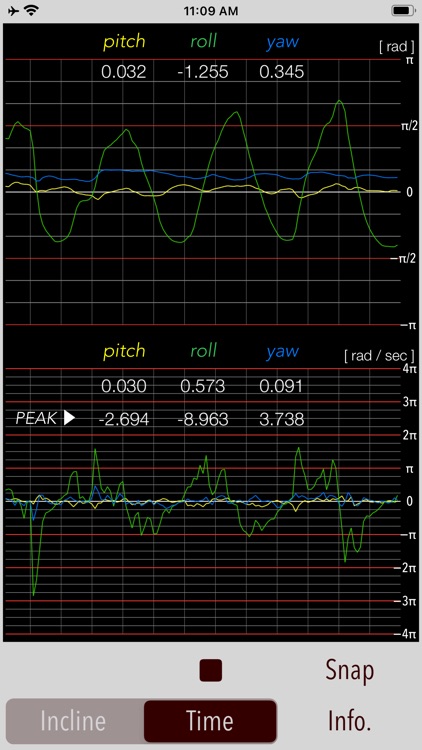

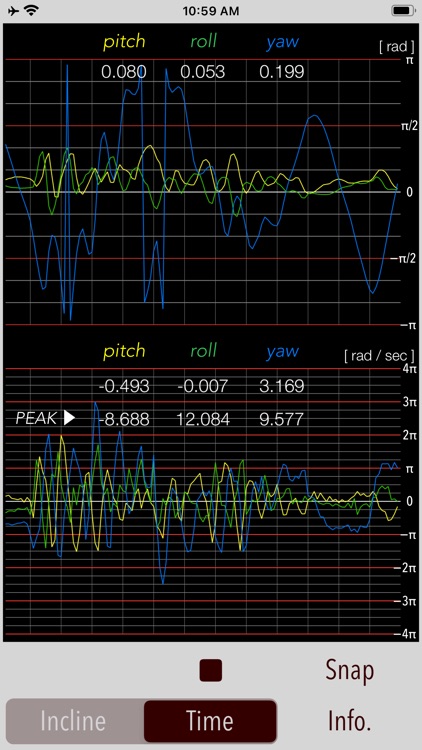

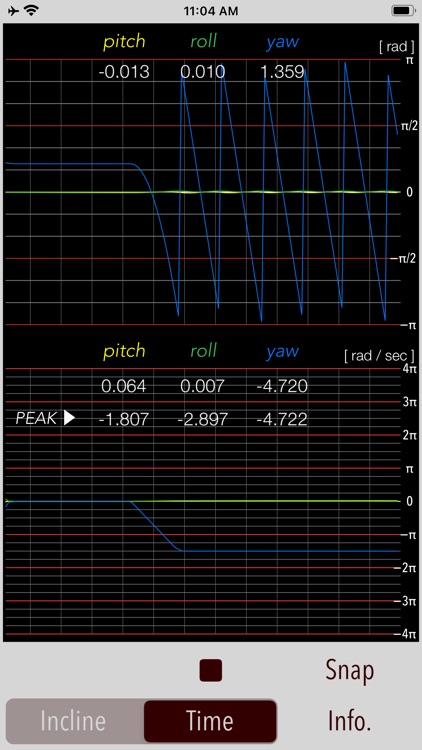

2) TIME (time graph)
This mode is used to see in real time the data of the 3-axis (pitch / yaw / roll) angle and the angular velocity output from the gyro sensor to display the graph. Please use this mode in the state of FaceUP.
- Angle display :
pitch : -π/2 - π/2 [rad] (-90° - +90°)
yaw : -π - π [rad] (-180° - +180°)
roll : -π - π [rad] (-180°- +180°)
- Acceleration :
pitch/yaw/roll : -4π(-12.56) - +4π(12.56) [rad/sec]

Note:
Please avoid using the device with excessive acceleration as it may cause device failure.
