Matra

The program calculates the drawing diagram of Carbon and Stainless Steel wires, Bronze, Aluminium, Zinc and Copper wires

The program calculates the drawing diagram of Carbon and Stainless Steel wires, Bronze, Aluminium, Zinc  and Copper wires

Matra

by Mario Beaupain
Matra
Matra
Matra

What is it about?

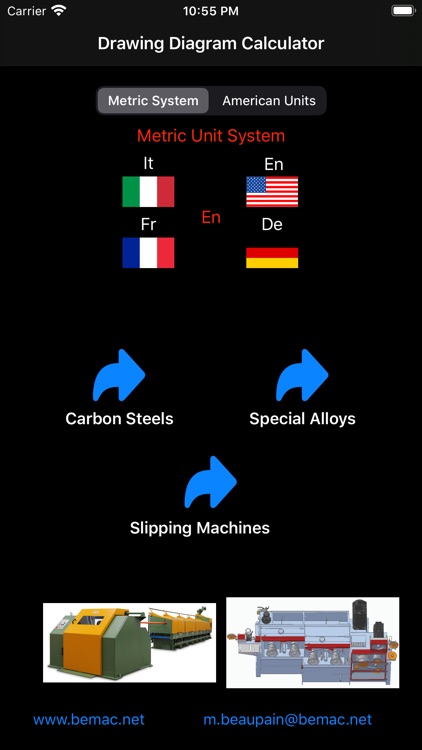

The program calculates the drawing diagram of Carbon and Stainless Steel wires, Bronze, Aluminium, Zinc and Copper wires. For Aluminium and Bronze, we considered the analysis more popular and with the higher tensile strength. For Zinc we considered the material with 99% of base material. Matra is working in English, Italian, French and German languages.

Matra

App Details

Version
2.1.3
Rating
NA
Size
26Mb
Genre
Productivity Utilities
Last updated
November 8, 2020
Release date
March 12, 2018
More info

App Screenshots

Matra screenshot-0
Matra screenshot-1
Matra screenshot-2
Matra screenshot-3
Matra screenshot-4
Matra screenshot-5
Matra screenshot-6
Matra screenshot-7
Matra screenshot-8
Matra screenshot-9

App Store Description

The program calculates the drawing diagram of Carbon and Stainless Steel wires, Bronze, Aluminium, Zinc and Copper wires. For Aluminium and Bronze, we considered the analysis more popular and with the higher tensile strength. For Zinc we considered the material with 99% of base material. Matra is working in English, Italian, French and German languages.

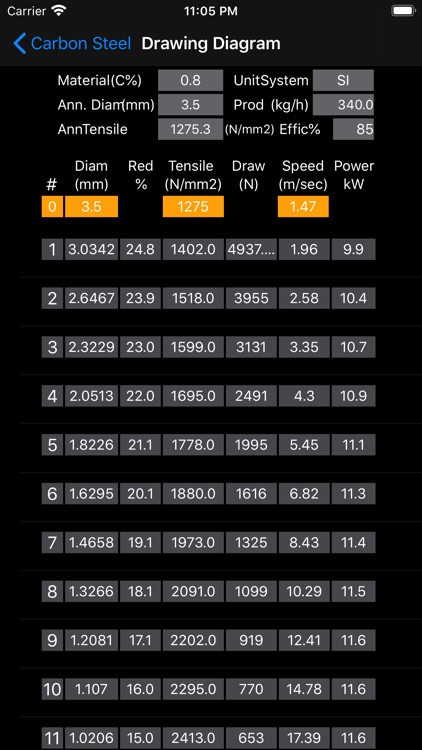

It calculates the diameter sequence and the relative reduction, the material tensile strength, the needing drawing force, the speed and the power for each pass. It calculates also the productivity in kg/h of the machine.

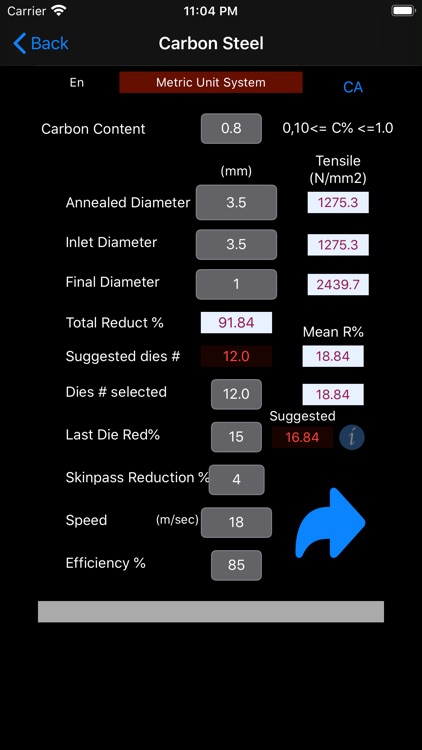

It is possible to work with constant or with decreasing reductions, to set the reduction of the last block and, in the case of external skinpass, to set the value of it. It suggests also the needing dies number letting you enter your choice in the underneath field.

It foresees the final tensile strength of the material basing its calculation on practical values.
Matra is indicated for drawing mills managers, with the aim to define the better drawing diagram in order to optimise the die scheduling.
It calculates also the productivity of the machine with possibility to set the efficiency of it.
It calculates the draw per pass using the Siebel’s formulas of the Homogeneous Work, as inside specified.

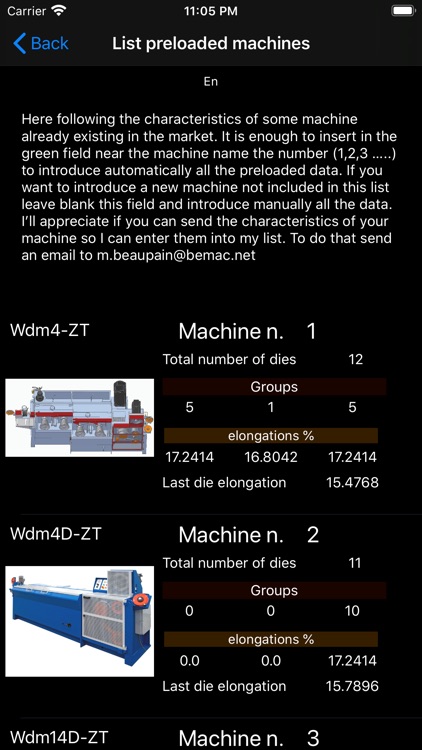

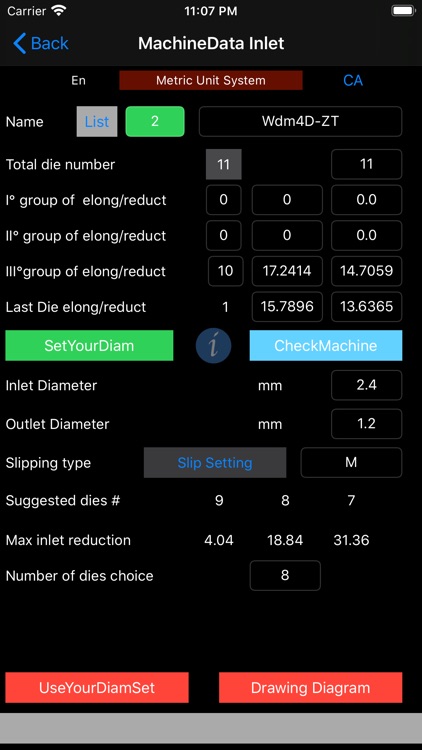

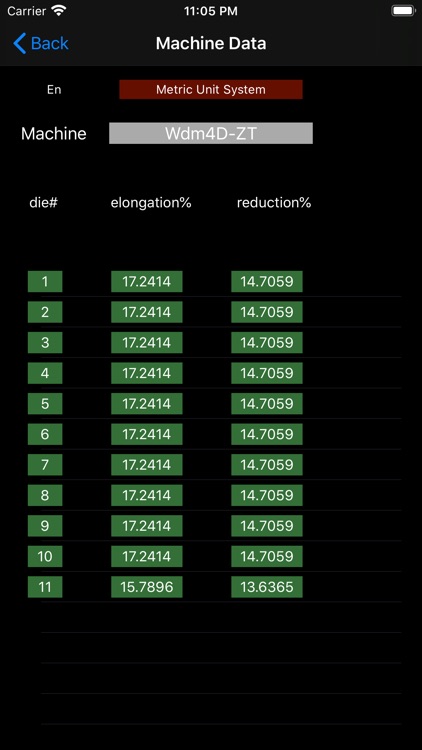

The Matra new version 2.0 is calculating now also the diagram for the wet drawing machines managing the slip for each capstan and controlling the total slip per cent on all the drawing blocks. First the program is asking you to enter the data of the wet drawing machine, as number of dies and elongations per pass. It is also possible to load the data of machines already existing in the market. One time the machine data are entered and checked it is possible to enter the inlet diameter, the outlet diameter and the slip requested per each capstan. It is possible to select 4 types of standard slipping or to enter a custom slip defined by the user. The program proposes then the needing number of dies to obtain the final diameter. After your choice the final report is showing the machine elongation per pass, the wire elongation, reduction and the total slip per pass.
In the version 2.1.0 is also possible to enter, in the section wet drawing slipping machines, your own program and to verify elongations, reductions and slip per pass relative to the characteristics of the chosen machine.
Improved also the readability with iPad.
It is possible also to use the program in your Mac.
The App is working also in dark mode.

The program works with International Unit Measure (SI) or with United States Imperial Units (USC).
