Q-view

Q-view is an independently developed iOS app to monitor CompAir® Quantima® centrifugal air compressors. Q-view acquires running data from the compressor using ModBus TCP/IP. By connecting to the internal Ethernet network of a unit near realtime operating and configuration data can be viewed.

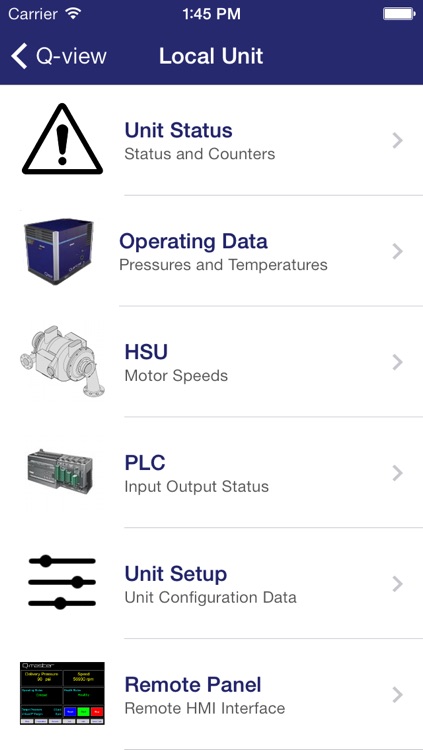

To provide the broadest level of information to the user the following groups of information are easily accessible:

Unit Status
▪Operating State
▪Alarms and Trips
▪Operating Hours
▪Cycles (Starts, Loads, Surges)

Operating Data
▪Pressure Data
▪Temperature Data

Motor Data
▪Speed Data
▪Motor Current

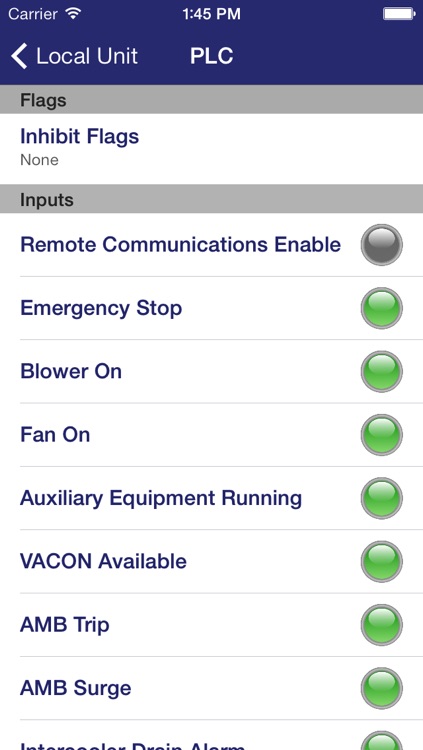

PLC Data
▪PLC Flags
▪Discrete I/O Data

Unit Setup
▪Pressure Alarm and Trip Points
▪Temperature Alarm and Trip Points
▪Speed Margins
▪Timer Parameters
▪PID Loop Parameters

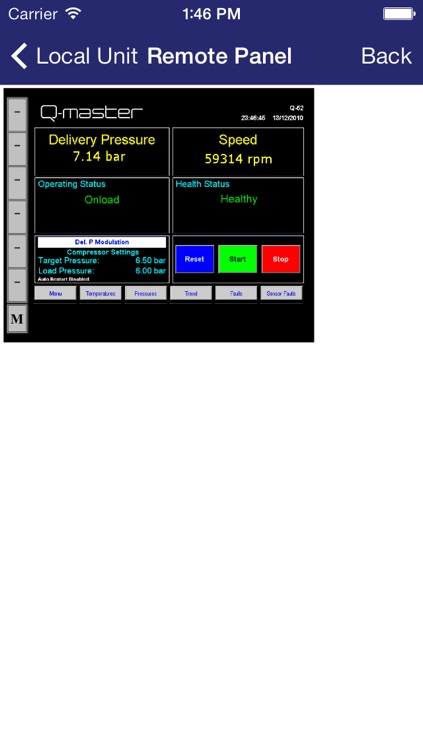

Along with the operating data available through Modbus an integrated browser for viewing the Remote HMI is also included.

Q-view is developed solely by a Quantima® certified field service technician and is not a product of Gardner Denver®, CompAir® or it’s affiliates.
