SimTunnel Pro

SimTunnel Pro is designed to perform a quick tunnel analysis on your phone device

SimTunnel Pro is designed to perform a quick tunnel analysis on your phone device

SimTunnel Pro

by Roozbeh Geraili Mikola
SimTunnel Pro
SimTunnel Pro
SimTunnel Pro

What is it about?

SimTunnel Pro is designed to perform a quick tunnel analysis on your phone device. SimTunnel Pro is very simple and easy to use. SimTunnel Pro uses "rock-support interaction" or "convergence-confinement" method to estimate the deformation of circular tunnels in weak rock, and visualizing the tunnel interaction with various support systems.

SimTunnel Pro

App Details

Version
1.0.1
Rating
NA
Size
13Mb
Genre
Productivity Education
Last updated
January 15, 2020
Release date
January 11, 2020
More info

App Screenshots

SimTunnel Pro screenshot-0
SimTunnel Pro screenshot-1
SimTunnel Pro screenshot-2
SimTunnel Pro screenshot-3
SimTunnel Pro screenshot-4
SimTunnel Pro screenshot-5
SimTunnel Pro screenshot-6
SimTunnel Pro screenshot-7
SimTunnel Pro screenshot-8
SimTunnel Pro screenshot-9

App Store Description

SimTunnel Pro is designed to perform a quick tunnel analysis on your phone device. SimTunnel Pro is very simple and easy to use. SimTunnel Pro uses "rock-support interaction" or "convergence-confinement" method to estimate the deformation of circular tunnels in weak rock, and visualizing the tunnel interaction with various support systems.

SimTunnel Pro has the following features:

- SimTunnel Pro determines Factor of Safety (FOS) as the ratio of maximum support pressure to the support pressure required for equilibrium.

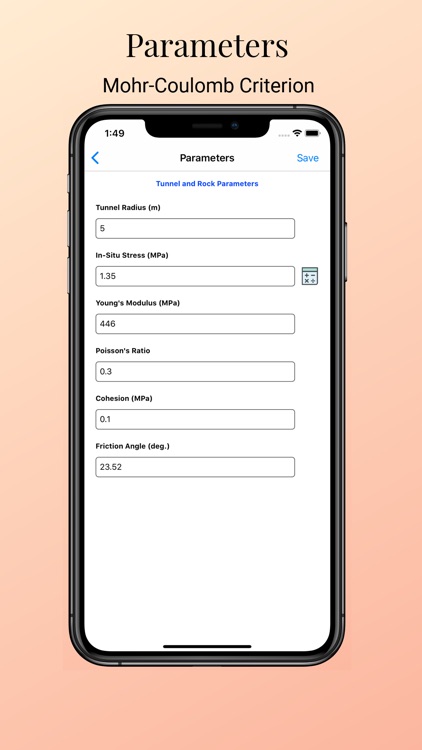

- The Tunnel and Rock Parameters dialog allows you to define the tunnel and rock properties for model.

- The Strength Properties which are required will depend on the strength criteria you have selected in Setting Page.

- Both Mohr-Coulomb and Hoek-Brown strength criteria are available.

- The parameter calculator dialogs are available to help you to calculate some of the parameters (i.e. GSI, mi, D, UCS, insitu stress and etc).

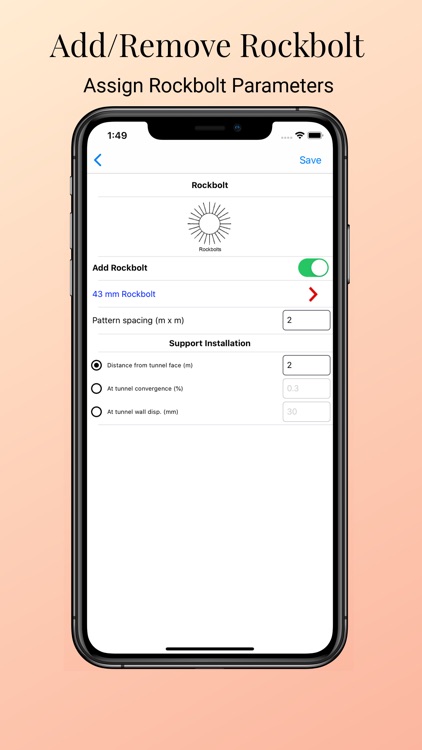

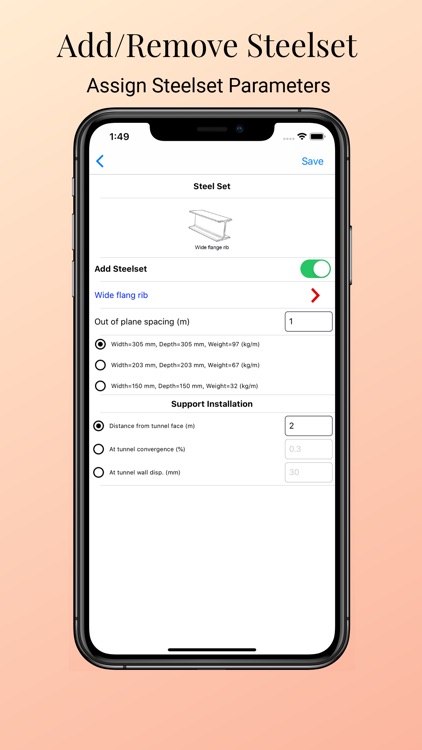

- The support parameters dialog allows you to easily add support and define the support properties for the model.

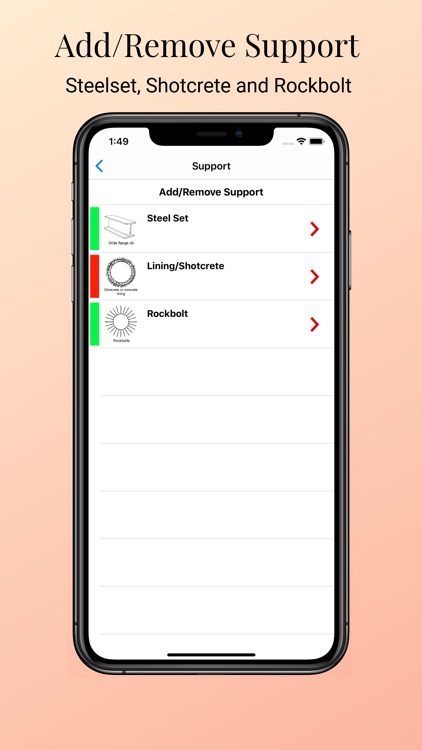

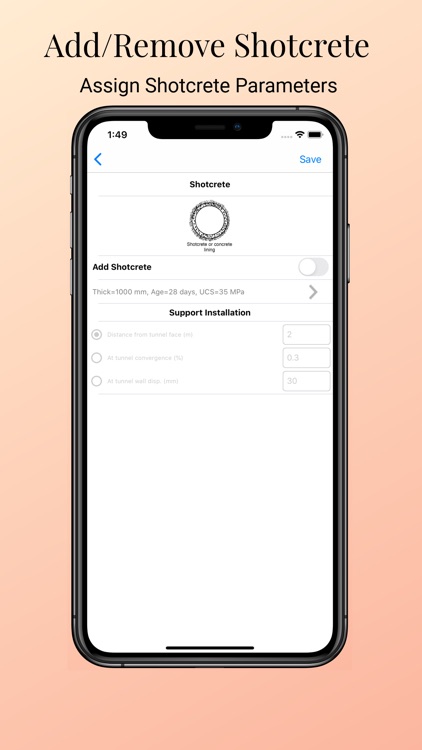

- Three different support types can be added to the model: Rockbolts, Steelsets and Shotcrete

- The ground reaction curve (GRC) is always displayed in the output page.

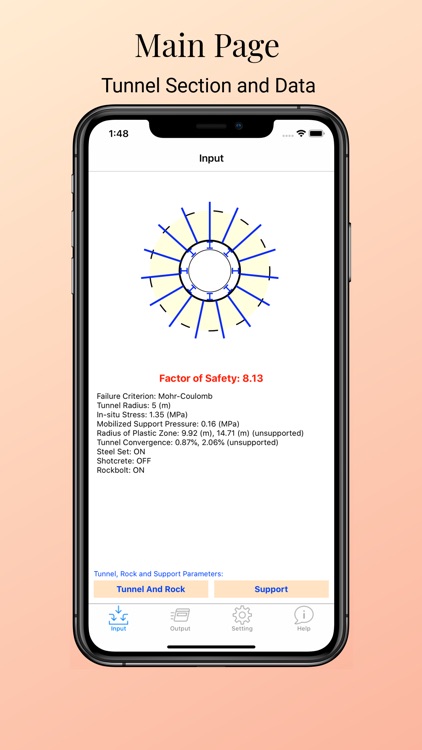

- The brief summary of analysis results and input data will be displayed in the Output Page.

- The report button, allows you to save the current model’s input and output information into PDF file. The generated report file can be sent out via email.
